PIAGGIO Beverly 500 i.e. - Rear Brake Calliper

Rear brake calliper

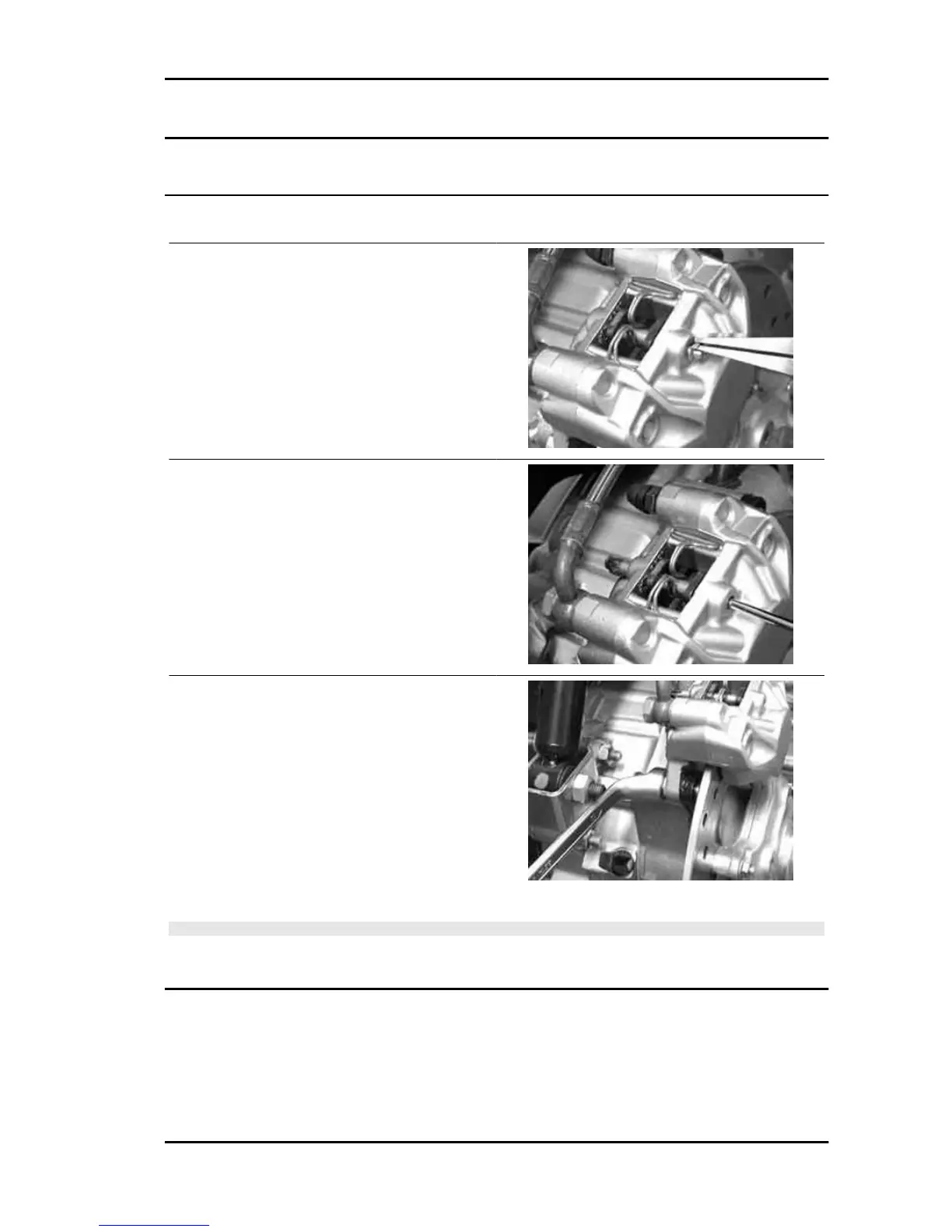

Removal
- Remove the rear wheel.
- Remove the snap ring of the pad retaining pin.
- Using a key, partially slide off the pad retaining
pin until the circlip is released.
- Remove the screws fixing the brake calliper to
the bracket, then remove the brake calliper com-
plete with pipe.
- Complete the extraction of the pad retention pin, the spring and the pads.
N.B.
IF BRAKE CALLIPER REPLACEMENT OR SERVICE IS NEEDED, BEFORE REMOVING THE CAL-
LIPER CLAMPS TO THE SUPPORT BRACKET, LOOSEN THE OIL JOINT FITTING.
