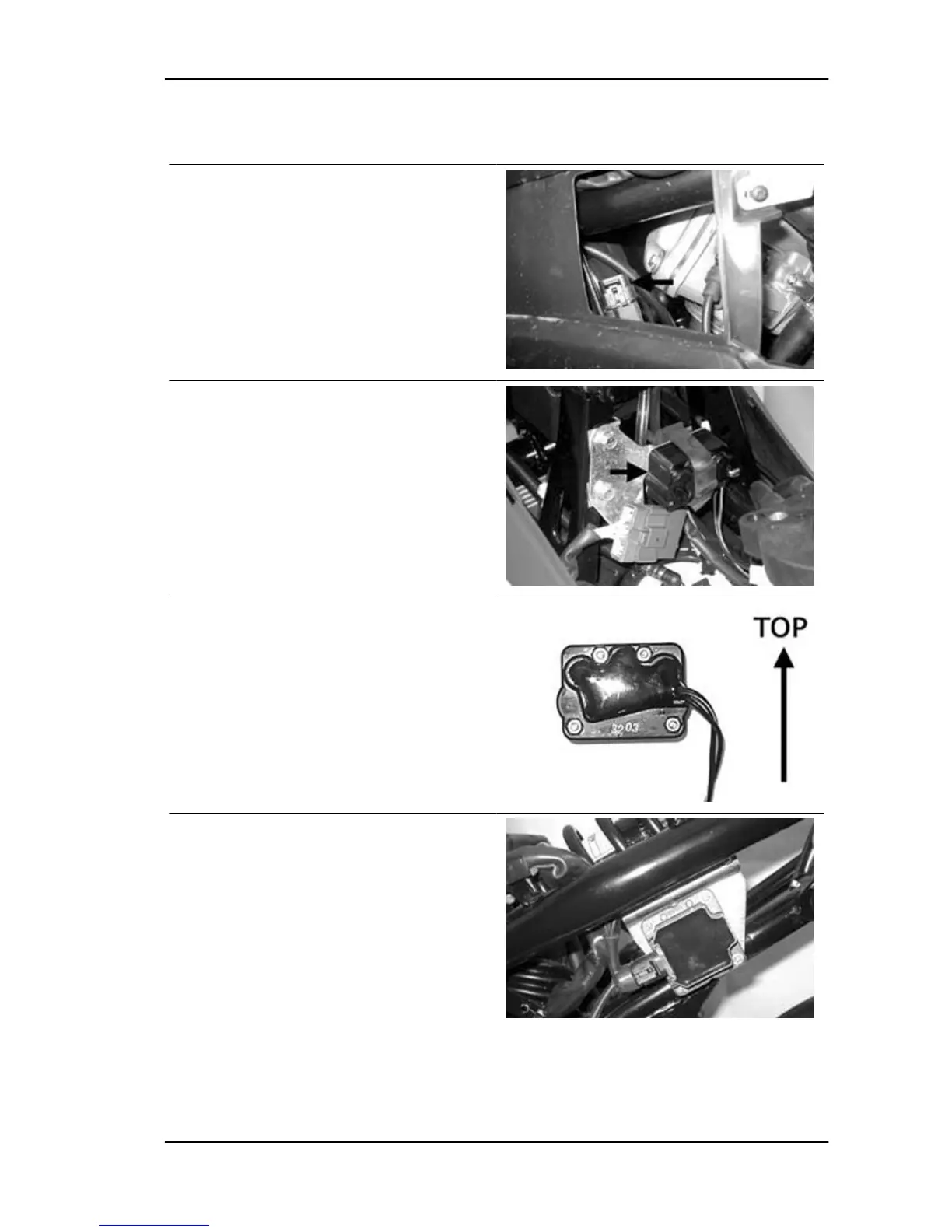

Components arrangement
Diagnostic socket
In order to access the diagnostic socket, remove
the supports of the passenger footrest.
Overturn sensor
In order to access the overturn sensor, remove the
central union.
During assembly, observe the installation direction
shown in the figure.
H.V. coil
In order to access the high-voltage coil, remove
the left-hand side fairing.
Beverly 500 i.e. Electrical system
ELE SYS - 35
