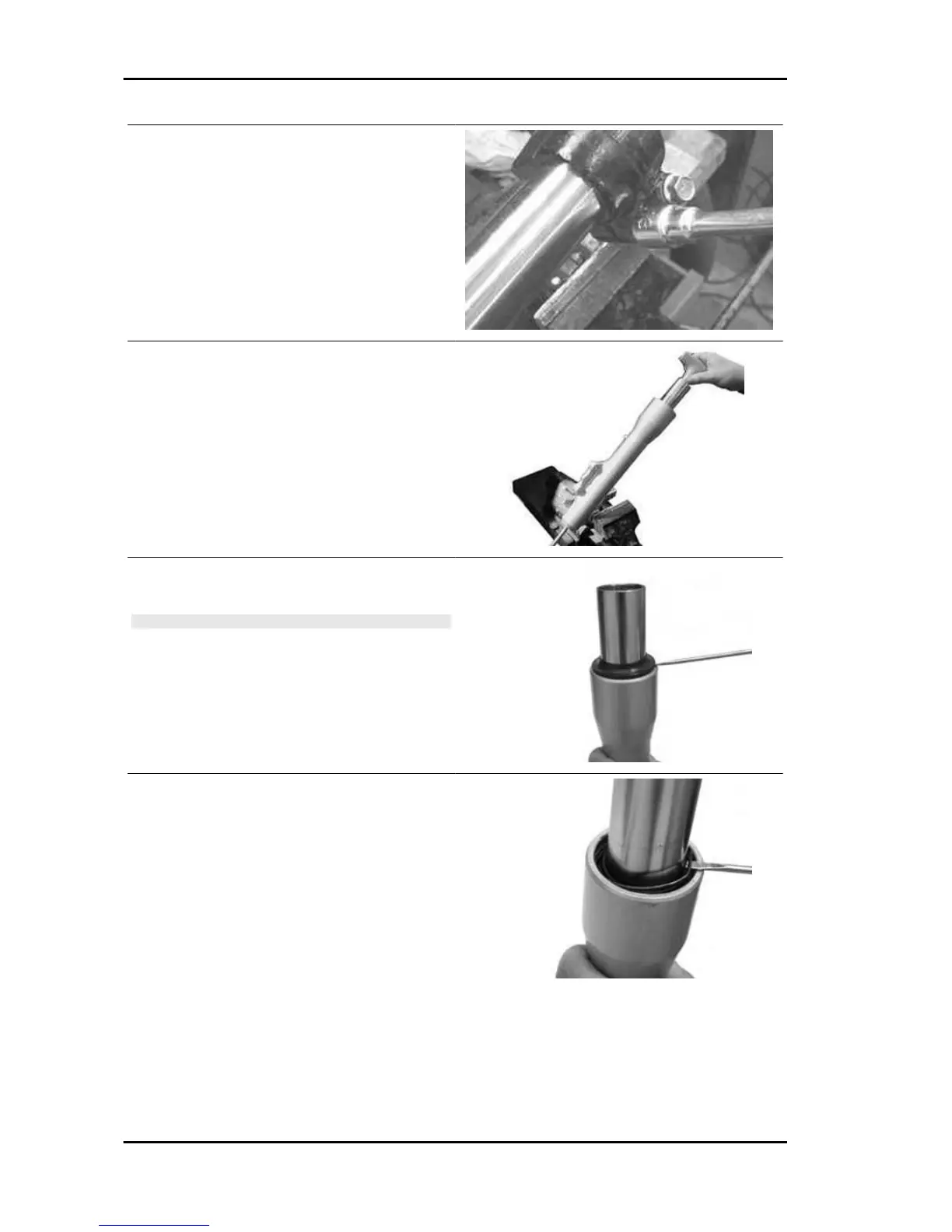

PIAGGIO Beverly 500 i.e. - Page 266

- Loosen the stem support clamp and remove fork
leg and stem.
- Remove the spring.
- Drain the oil.
- Remove the screw with copper washer shown in
the figure. To prevent the pumping member rota-
tion, insert an inside 22 mm hexagon spanner into
the stem.
- Remove the pumping member.
- Remove the dust guard ring using a screwdriver
as shown in the figure.
N.B.
BE CAREFUL NOT TO DAMAGE THE DUST GUARD AND
THE STEM.
- Remove the oil guard safety lock using a screw-
driver.
- Repeatedly actuate the stem to remove it from
the fork leg.
Suspensions Beverly 500 i.e.
SUSP - 266
