Remove the bushing from the bearing
on the engine left support.
Check that the following components are not worn or dented:
•
Engine crankcase supports
•
Ball bearing with bushing on swinging arm
•
Roller bearing on swinging arm
Check that the chassis connecting pin exhibits no wear or dents on the roller bearing connection:
In case of irregularities, replace the pin and the roller bearing.
•
Check that the pin connecting the swinging arm to the engine exhibits no wear at the right
bearing housing connection:
Characteristic
Diameter of shaft:
Ø 18 -0.034 mm
Diameter of pin:
Ø 20 -0.041 mm
•

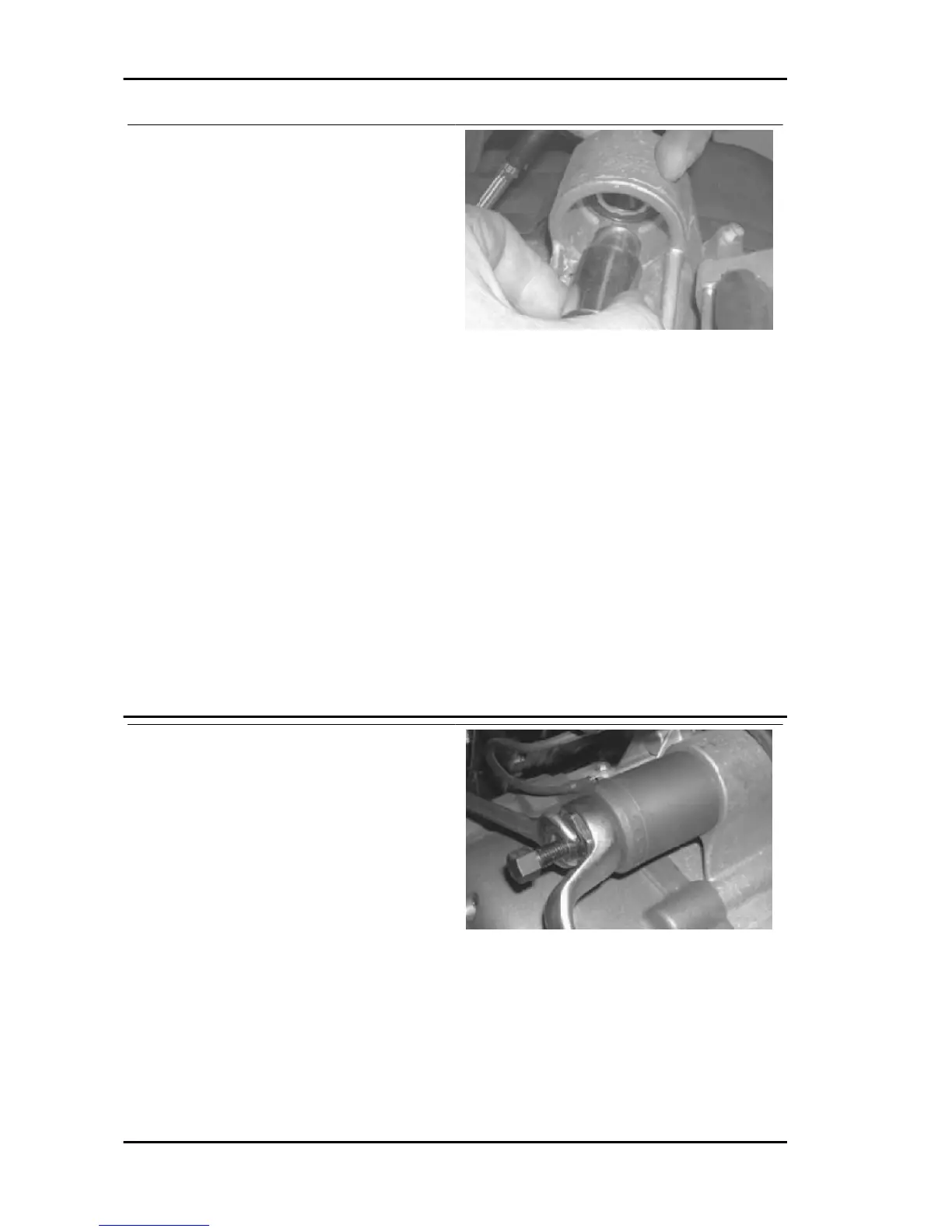

Extract the left bearing using the spe-
cial tool.
Specific tooling
001467Y006 Pliers to extract 20 mm bearings
001467Y031 Bell
Suspensions Beverly 500 i.e.
SUSP - 276
