User’s Manual
Global VLAN Configuration

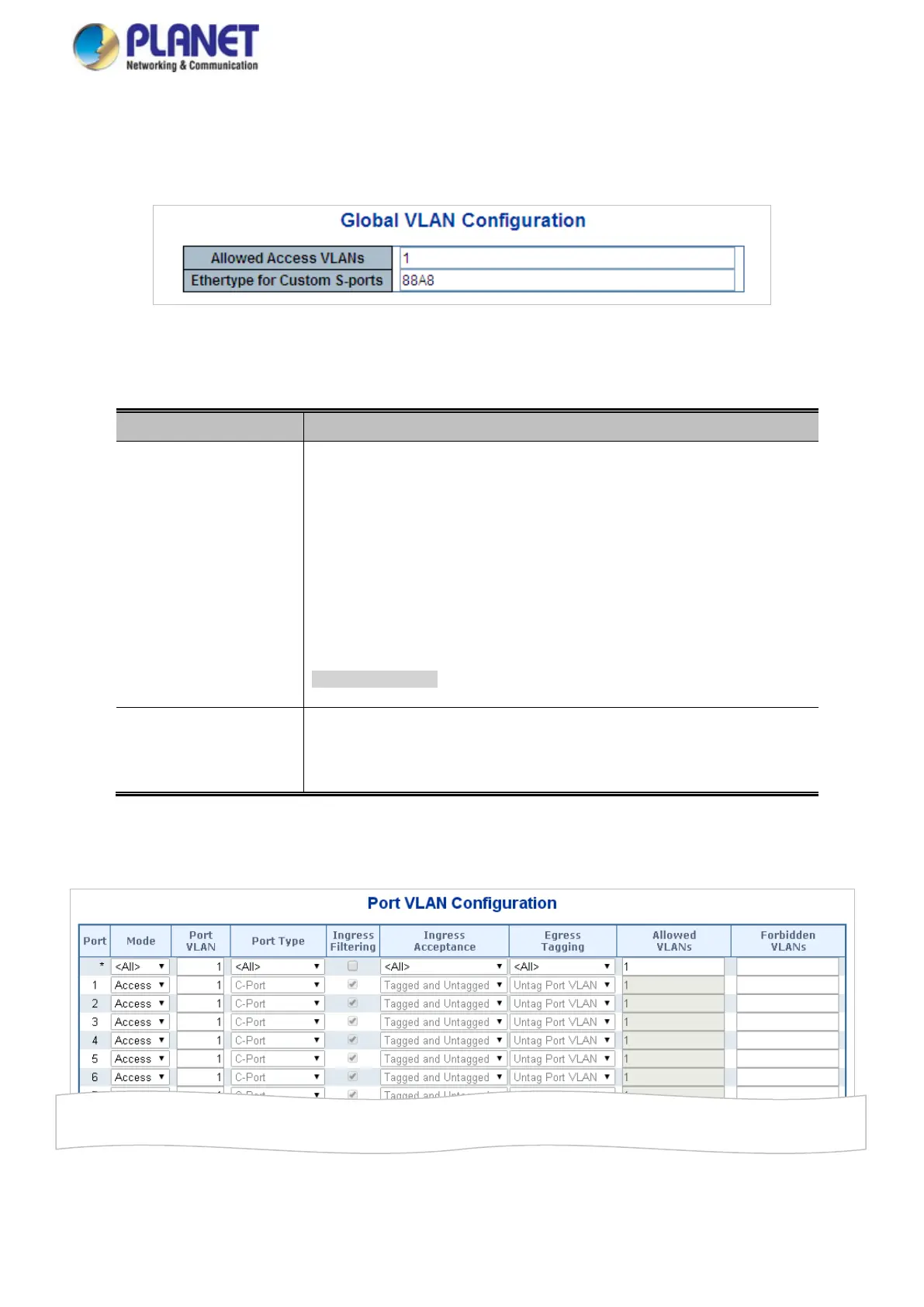

The Global VLAN Configuration screen in Figure 4-6-1 appears.
Figure 4-6-1 : Global VLAN Configuration Screenshot
The page includes the following fields:
Object Description
• Allowed Access
VLANs
This field shows the allowed Access VLANs, it only affects ports configured as
Access ports. Ports in other modes are members of all VLANs specified in the
Allowed VLANs field.
By default, only VLAN 1 is enabled. More VLANs may be created by using a list
syntax where the individual elements are separated by commas. Ranges are
specified with a dash separating the lower and upper bound.
The following example will create VLANs 1, 10, 11, 12, 13, 200, and 300:
1,10-13,200,300. Spaces are allowed in between the delimiters.
• Ethertype for Custom
S-ports
This field specifies the ethertype/TPID (specified in hexadecimal) used for
Custom S-ports. The setting is in force for all ports whose Port Type is set to
S-Custom-Port.
Port VLAN Configuration
The VLAN Port Configuration screen in Figure 4-6-2 appears.
Figure 4-6-2 : Port VLAN Configuration Screenshot
