2. Assign VLAN Member :
VLAN 1 : Port-5 and Port-6
VLAN 2 : Port-1, Port-2, Port-5 and Port-6
VLAN 3: Port-3~Port-6.
The screen in Figure 4-6-18 appears.
Figure 4-6-17: Private VLAN Port Setting
4.6.9 MAC-based VLAN
The MAC-based VLAN entries can be configured here. This page allows for adding and deleting MAC-based VLAN entries and
assigning the entries to different ports. This page shows only static entries. The MAC-based VLAN screen in Figure 4-6-18
appears.

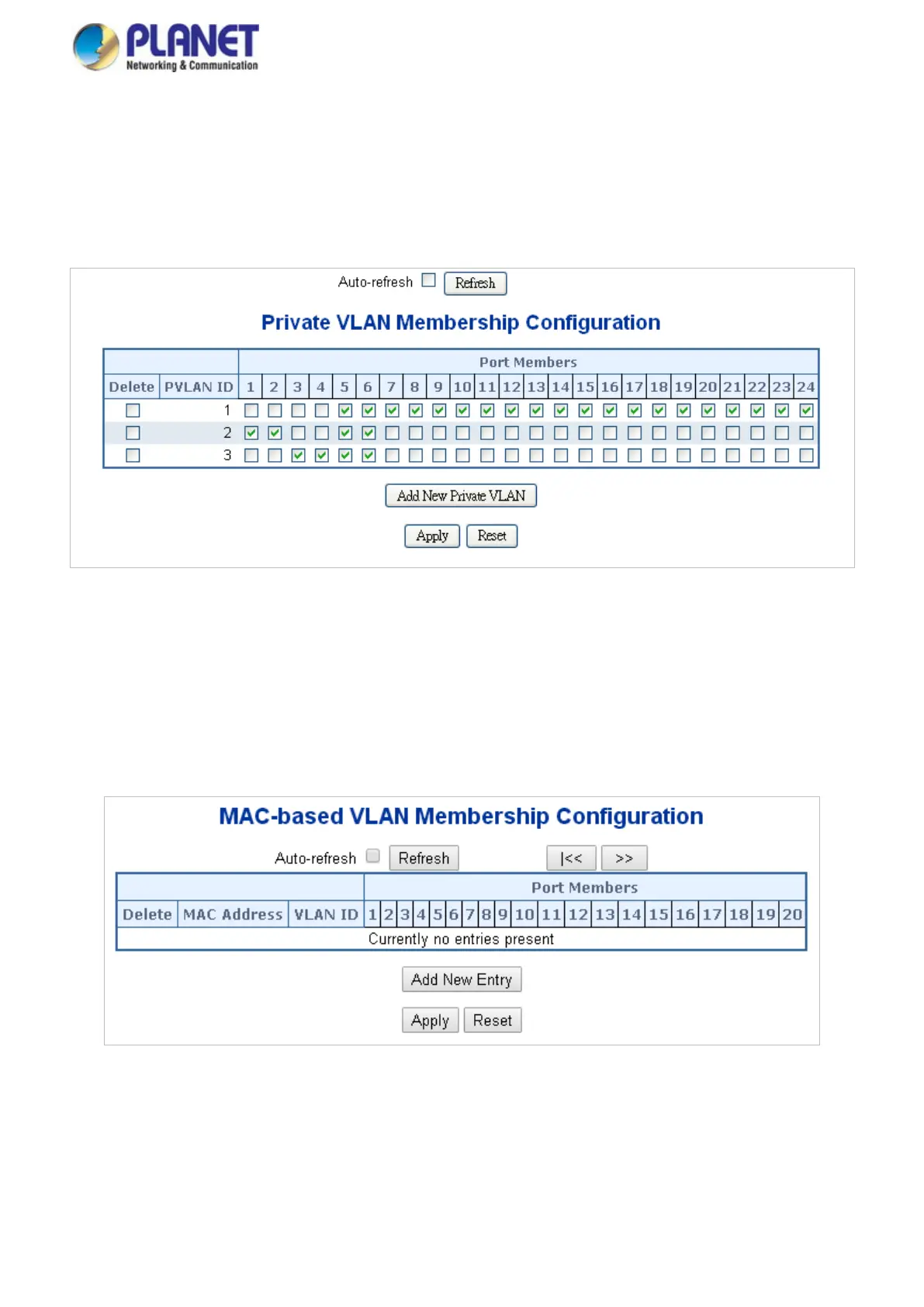

Figure 4-6-18: MAC-based VLAN Membership Configuration page Screenshot
