The page includes the following fields:
Object Description
• Delete
Check to delete the entry. It will be deleted during the next save.
• Port
The logical port for the settings.
• VLAN ID
The VLAN ID for the settings.
• MAC Address
Allowed Source MAC address in ARP request packets.
• IP Address
Allowed Source IP address in ARP request packets.
Buttons
: Click to add a new entry to the Static ARP Inspection table.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.12.15 Dynamic ARP Inspection Table
Entries in the Dynamic ARP Inspection Table are shown on this page. The Dynamic ARP Inspection Table contains up to 1024
entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address. The Dynamic ARP
Inspection Table screen in Figure 4-12-15 appears.

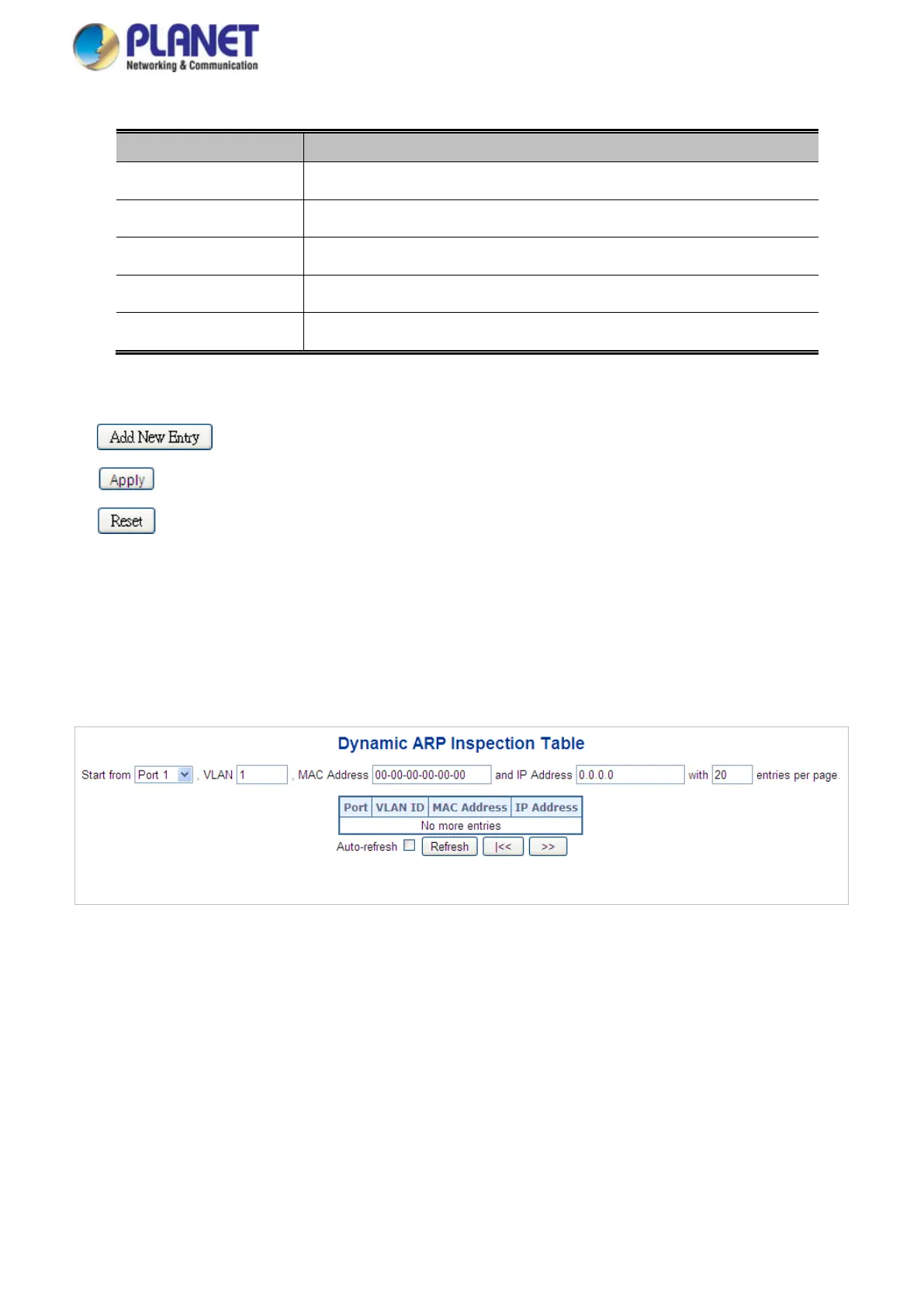

Figure 4-12-15: Dynamic ARP Inspection Table Screenshot
Navigating the ARP Inspection Table
Each page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20, selected through the "entries per
page" input field. When first visited, the web page will show the first 20 entries from the beginning of the Dynamic ARP
Inspection Table.
The "Start from port address", "VLAN", "MAC address" and "IP address" input fields allow the user to select the starting point
in the Dynamic ARP Inspection Table. Clicking the “Refresh” button will update the displayed table starting from that or the
closest next Dynamic ARP Inspection Table match. In addition, the two input fields will - upon a “Refresh” button click - assume
the value of the first displayed entry, allowing for continuous refresh with the same start address.
