4.9.7 Port DSCP
This page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. The Port DSCP screen in
Figure 4-9-8 appears.

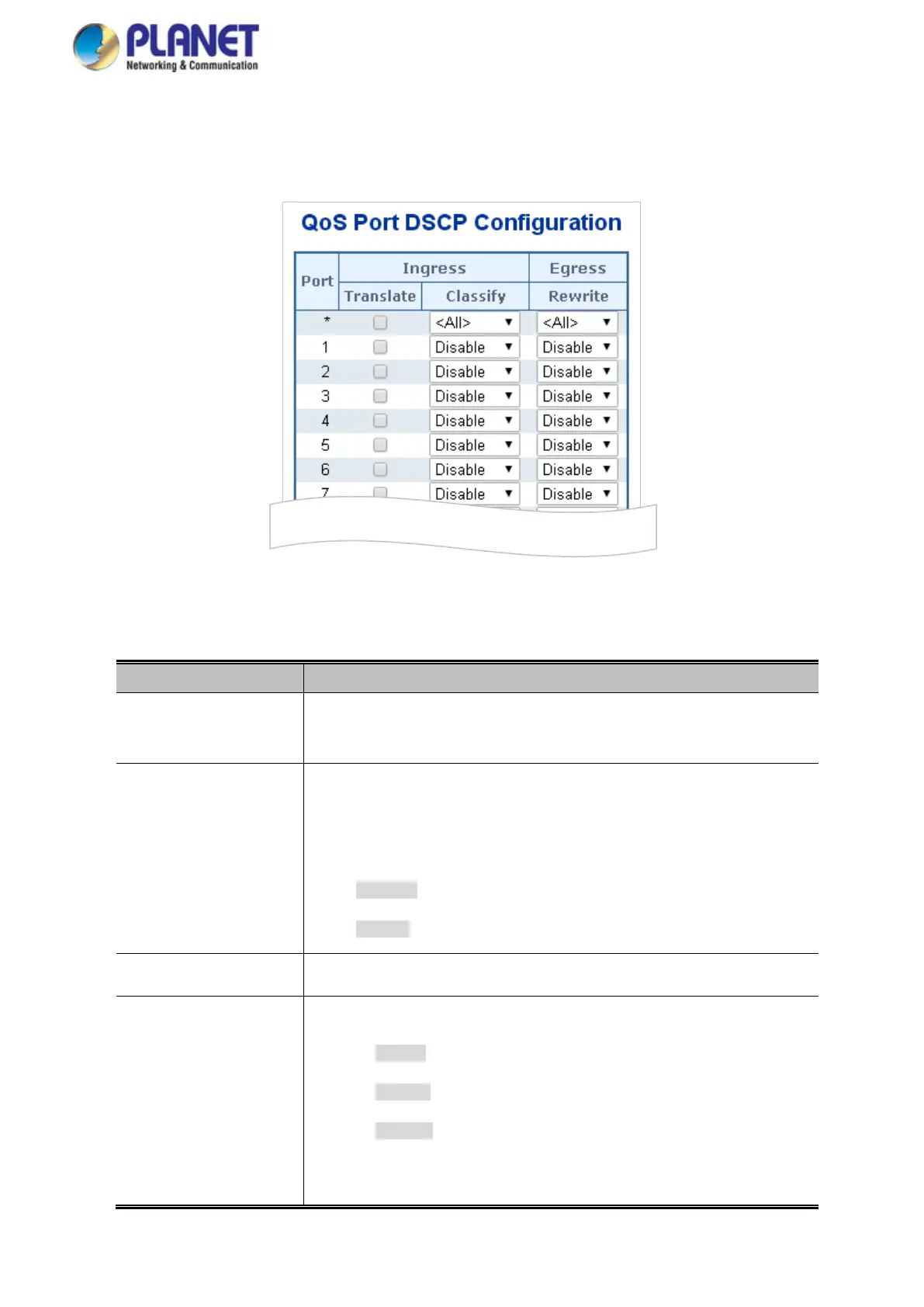

Figure 4-9-8: QoS Port DSCP Configuration page Screenshot
The page includes the following fields:
Object Description
• Port
The Port column shows the list of ports for which you can configure dscp ingress
and egress settings.
• Ingress
In Ingress settings you can change ingress translation and classification settings
for individual ports.
There are two configuration parameters available in Ingress:
 Translate
 Classify
• Translate
To Enable the Ingress Translation click the checkbox.
• Classify
Classification for a port have 4 different values.
 Disable: No Ingress DSCP Classification.
 DSCP=0: Classify if incoming (or translated if enabled) DSCP is 0.
 Selected: Classify only selected DSCP for which classification is
enabled as specified in DSCP Translation window for the specific
DSCP.
