• Classify
Click to enable Classification at Ingress side.
• Egress
There are the following configurable parameters for Egress side –
Remap DP0 Controls the remapping for frames with DP level 0.
Remap DP1 Controls the remapping for frames with DP level 1.
• Remap DP0
Select the DSCP value from select menu to which you want to remap. DSCP
value ranges form 0 to 63.
• Remap DP1
Select the DSCP value from select menu to which you want to remap. DSCP
value ranges form 0 to 63.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.9.10 DSCP Classification
This page allows you to map DSCP value to a QoS Class and DPL value. The DSCP Classification screen in Figure 4-9-11
appears.

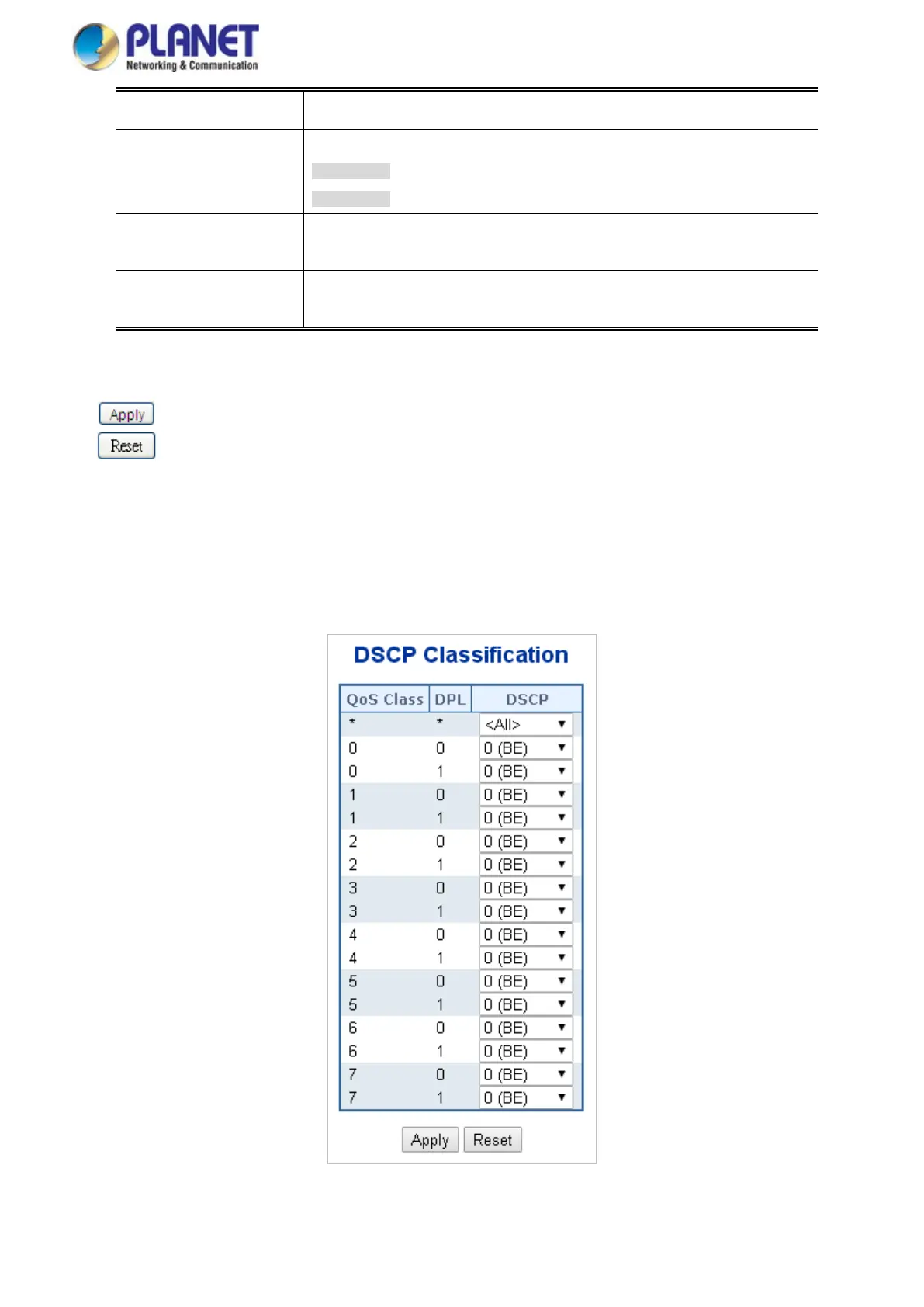

Figure 4-9-11: DSCP Classification page Screenshot
