2.3.1 Installing the SFP Transceiver
The sections describe how to insert an SFP transceiver into an SFP slot. The SFP transceivers are hot-pluggable and
hot-swappable. You can plug in and out the transceiver to/from any SFP port without having to power down the Industrial
Managed Switch as Figure 2-25 appears.

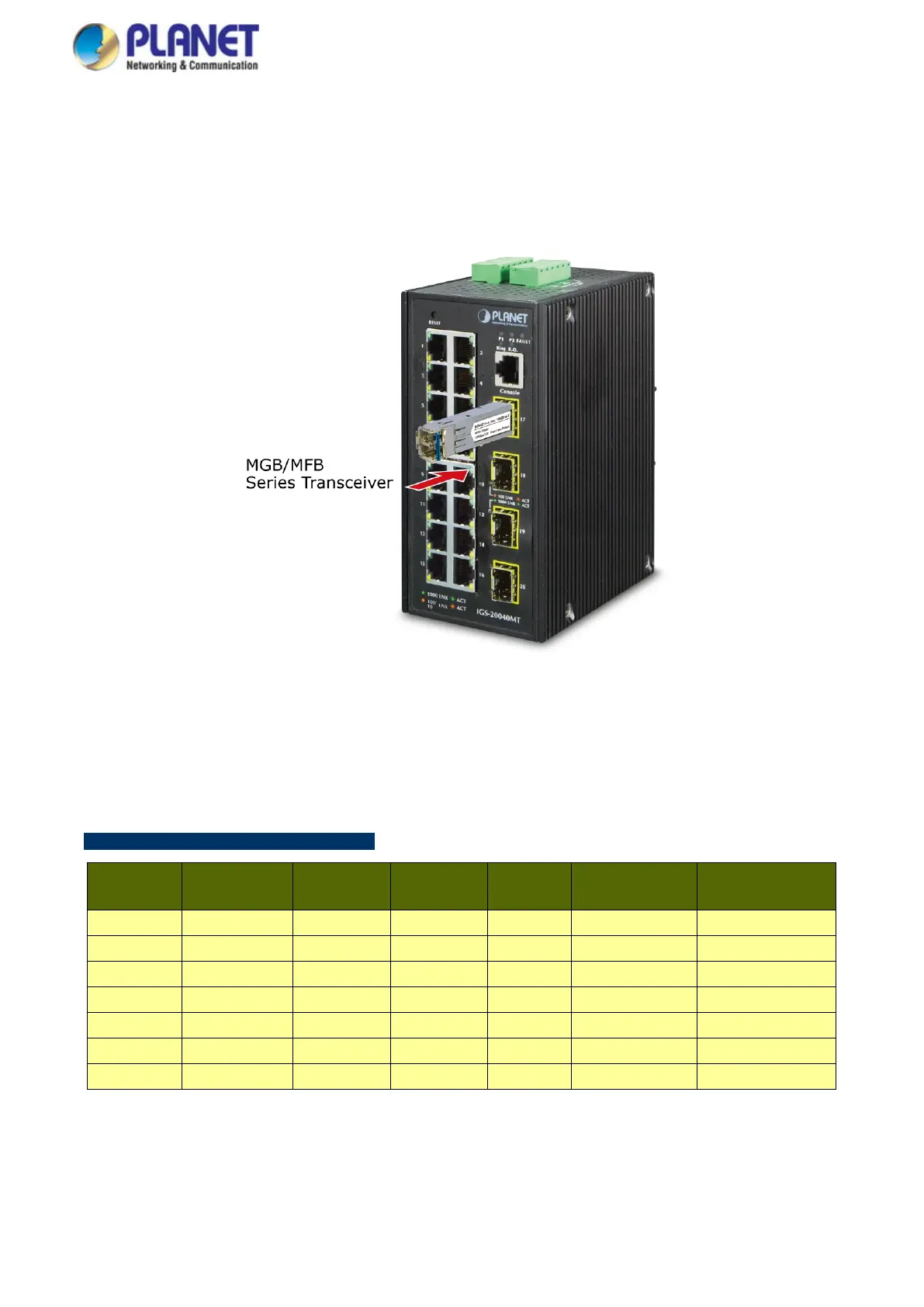

Figure 2-25: Plug in the SFP Transceiver
 Approved PLANET SFP Transceivers
PLANET Industrial Managed Switch supports 100/1000 dual mode with both single mode and multi-mode SFP
transceivers. The following list of approved PLANET SFP transceivers is correct at the time of publication:
Fast Ethernet Transceiver (100BASE-X SFP)
Model Speed (Mbps)
Connector
Interface
Fiber Mode Distance Wavelength (nm) Operating Temp.
MFB-FX
100
LC
Multi Mode
2km
1310nm
0 ~ 60 degrees C
MFB-F20
100
LC
Single Mode
20km
1310nm
0 ~ 60 degrees C
MFB-F40
100
LC
Single Mode
40km
1310nm
0 ~ 60 degrees C
MFB-F60
100
LC
Single Mode
60km
1310nm
0 ~ 60 degrees C
MFB-F120
100
LC
Single Mode
120km
1550nm
0 ~ 60 degrees C
MFB-TFX
100
LC
Multi Mode
2km
1310nm
-40 ~ 75 degrees C
MFB-TF20
100
LC
Single Mode
20km
1550nm
-40 ~ 75 degrees C
