4.9.5.1 QoS Egress Port Schedule and Shapers
The Port Scheduler and Shapers for a specific port are configured on this page. The QoS Egress Port Schedule and Shaper
screen in Figure 4-9-5 appears.

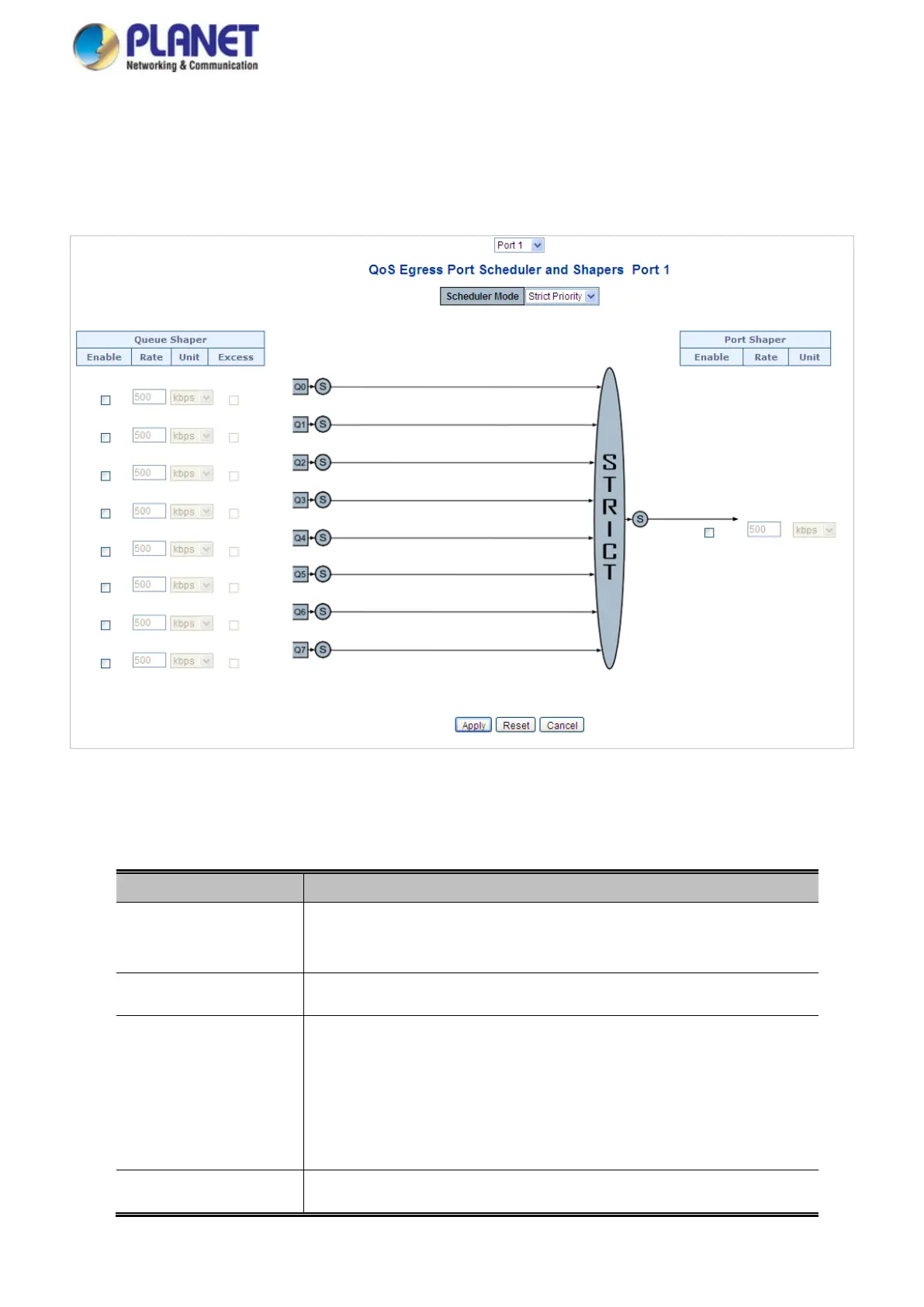

Figure 4-9-5: QoS Egress Port Schedule and Shapers page Screenshot
The page includes the following fields:
Object Description
• Schedule Mode
Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this
switch port.
• Queue Shaper Enable
Controls whether the queue shaper is enabled for this queue on this switch port.
• Queue Shaper Rate
Controls the rate for the queue shaper.
This value is restricted to 100-1000000 when the "Unit" is "kbps", and it is
restricted to 1-13200 when the "Unit" is "Mbps".
The default value is 500.
• Queue Shaper Unit
Controls the unit of measure for the queue shaper rate as "kbps" or "Mbps".
