User’s Manual
604800 seconds (7 days). A value of zero will keep a port disabled (until next
device restart).
Port Configuration
Object Description
• Port
The switch port number of the port.
• Enable
Controls whether loop protection is enabled on this switch port.
• Action
Configures the action performed when a loop is detected on a port. Valid values
are Shutdown Port, Shutdown Port and Log or Log Only.
• Tx Mode
Controls whether the port is actively generating loop protection PDU's, or
whether it is just passively looking for looped PDU's.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.17.2 Loop Protection Status

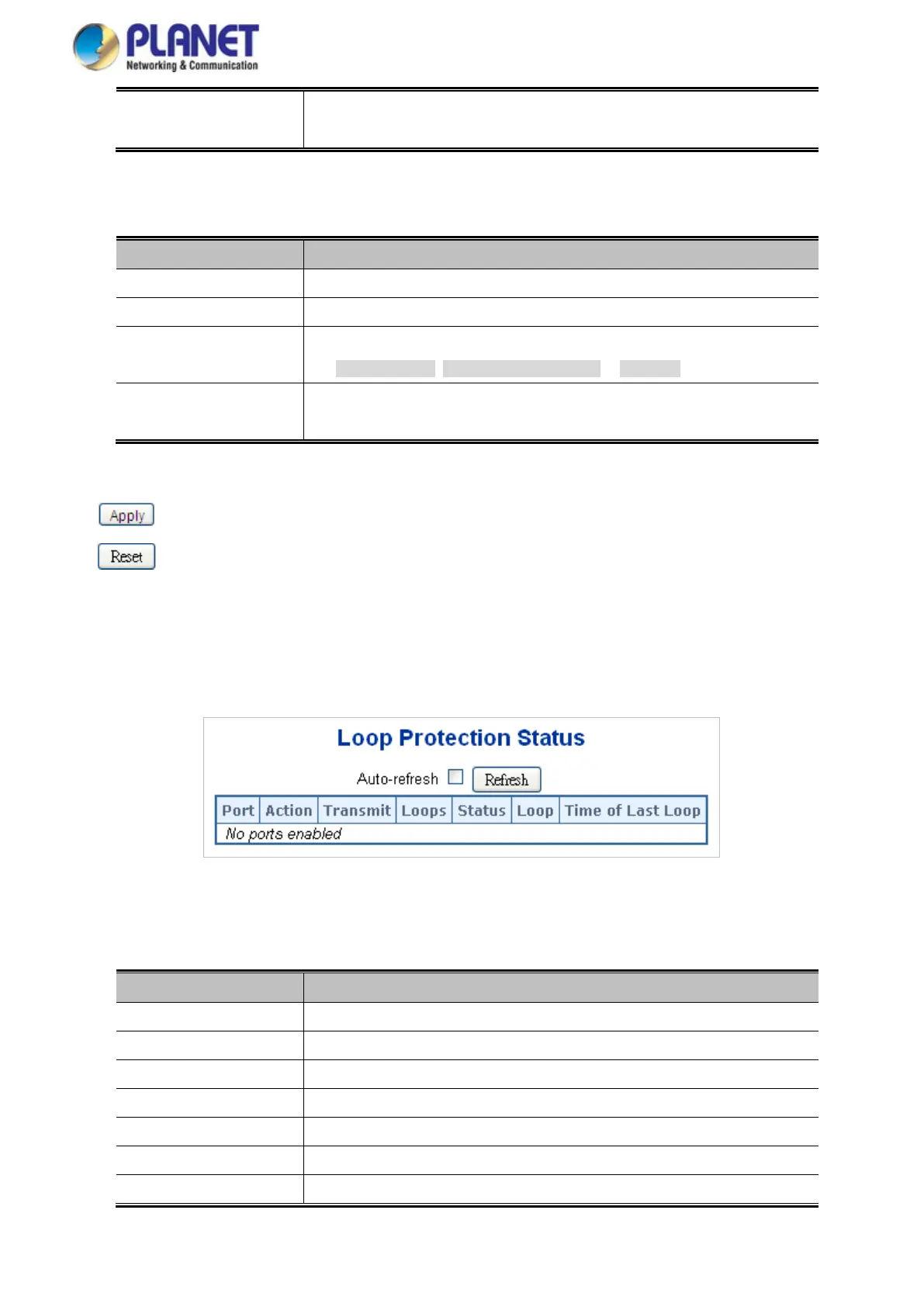

This page displays the loop protection port status of the switch; screen in Figure 4-17-2 appears.
Figure 4-17-2: Loop Protection Status Screenshot
The page includes the following fields:
Object Description
• Port
The Industrial Managed Switch port number of the logical port.
• Action
The currently configured port action.
• Transmit
The currently configured port transmit mode.
• Loops
The number of loops detected on this port.
• Status
The current loop protection status of the port.
• Loop
Whether a loop is currently detected on the port.
• Time of Last Loop
The time of the last loop event detected.
