Planet IGS-10020 Series User Manual

User’s Manual
151
4.6.8 VLAN setting example:
 Separate VLAN
 802.1Q VLAN Trunk
 Port Isolate
4.6.8.1 Two Separate 802.1Q VLANs
The diagram shows how the Industrial Managed Switch handle Tagged and Untagged traffic flow for two VLANs. VLAN Group 2
and VLAN Group 3 are separated VLAN. Each VLAN isolate network traffic so only members of the VLAN receive traffic from
the same VLAN members. The screen in Figure 4-6-8 appears and Table 4-6-9 describes the port configuration of the Industrial
Managed Switches.

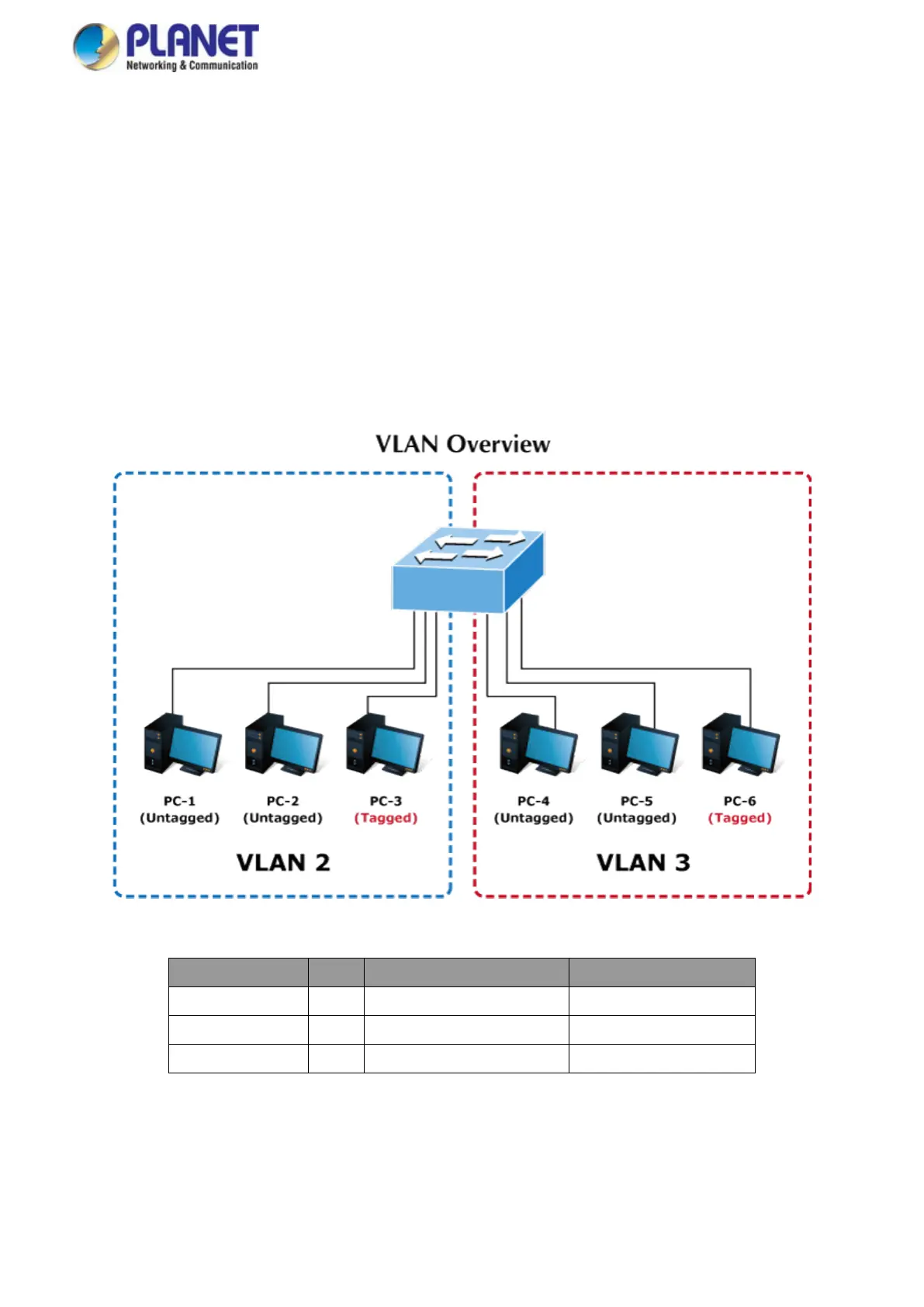

Figure 4-6-8: Two Separate VLANs Diagram
VLAN Group VID Untagged Members Tagged Members
VLAN Group 1 1 Port-7 ~ Port-24 N/A
VLAN Group 2 2 Port-1,Port-2 Port-3
VLAN Group 3 3 Port-4,Port-5 Port-6
Table 4-1: VLAN and Port Configuration
