4.20.4 Ethernet Ring Protocol Switch Configuration
This page allows the user to inspect and configure the current ERPS Instance; screen in Figure 4-20-4 appears.

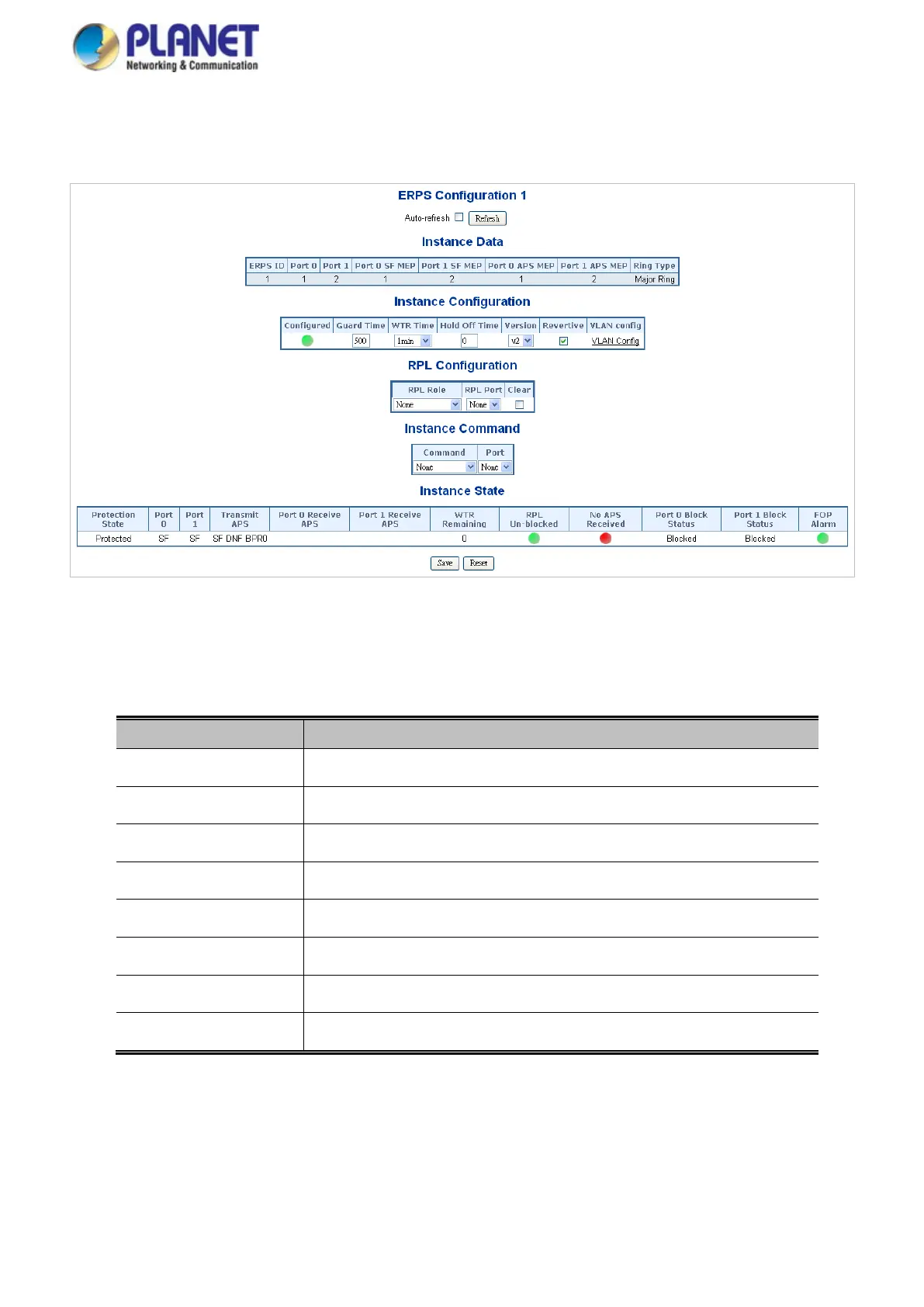

Figure 4-20-4: Ethernet Ring Protocol Switch Configuration page screenshot
The page includes the following fields:
Instance Data:
Object Description
• ERPS ID
The ID of the Protection group.
• Port 0
See help on ERPS create WEB.
• Port 1
See help on ERPS create WEB.
• Port 0 SF MEP
See help on ERPS create WEB.
• Port 1 SF MEP
See help on ERPS create WEB.
• Port 0 APS MEP
See help on ERPS create WEB.
• Port 1 APS MEP
See help on ERPS create WEB.
• Ring Type
Type of Protecting ring. It can be either major ring or sub-ring.
