4.8.13 MLD Snooping Status
This page provides MLD Snooping status. The IGMP Snooping Status screen in Figure 4-8-16 appears.

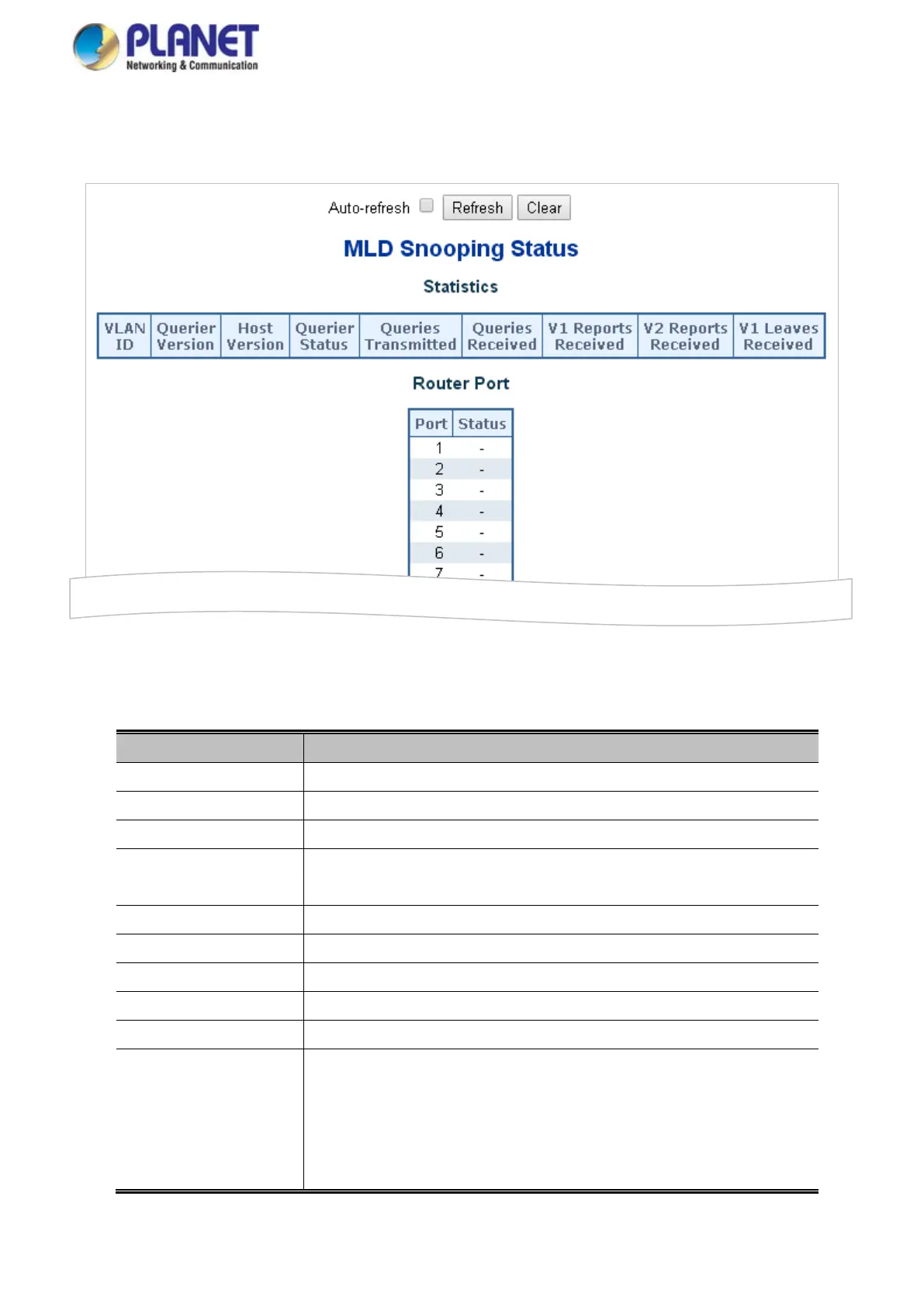

Figure 4-8-16: MLD Snooping Status page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
The VLAN ID of the entry.
• Querier Version
Working Querier Version currently.
• Host Version
Working Host Version currently.
• Querier Status
Shows the Querier status is "ACTIVE" or "IDLE".
"DISABLE" denotes the specific interface is administratively disabled.
• Querier Transmitted
The number of Transmitted Querier.
• Querier Received
The number of Received Querier.
• V1 Reports Received
The number of Received V1 Reports.
• V2 Reports Received
The number of Received V2 Reports.
• V1 Leave Received
The number of Received V1 Leaves.
• Router Port
Display which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or MLD querier.
Static denotes the specific port is configured to be a router port.
Dynamic denotes the specific port is learnt to be a router port.
Both denote the specific port is configured or learnt to be a router port.
