6. Repeat Steps 1 to 6 to set up the VLAN Trunk port at the partner switch. To a dd more VLANs to join the VLAN trunk, repeat
Steps 1 to 3 to assign the Trunk port to the VLANs.
4.6.8.3 Port Isolate

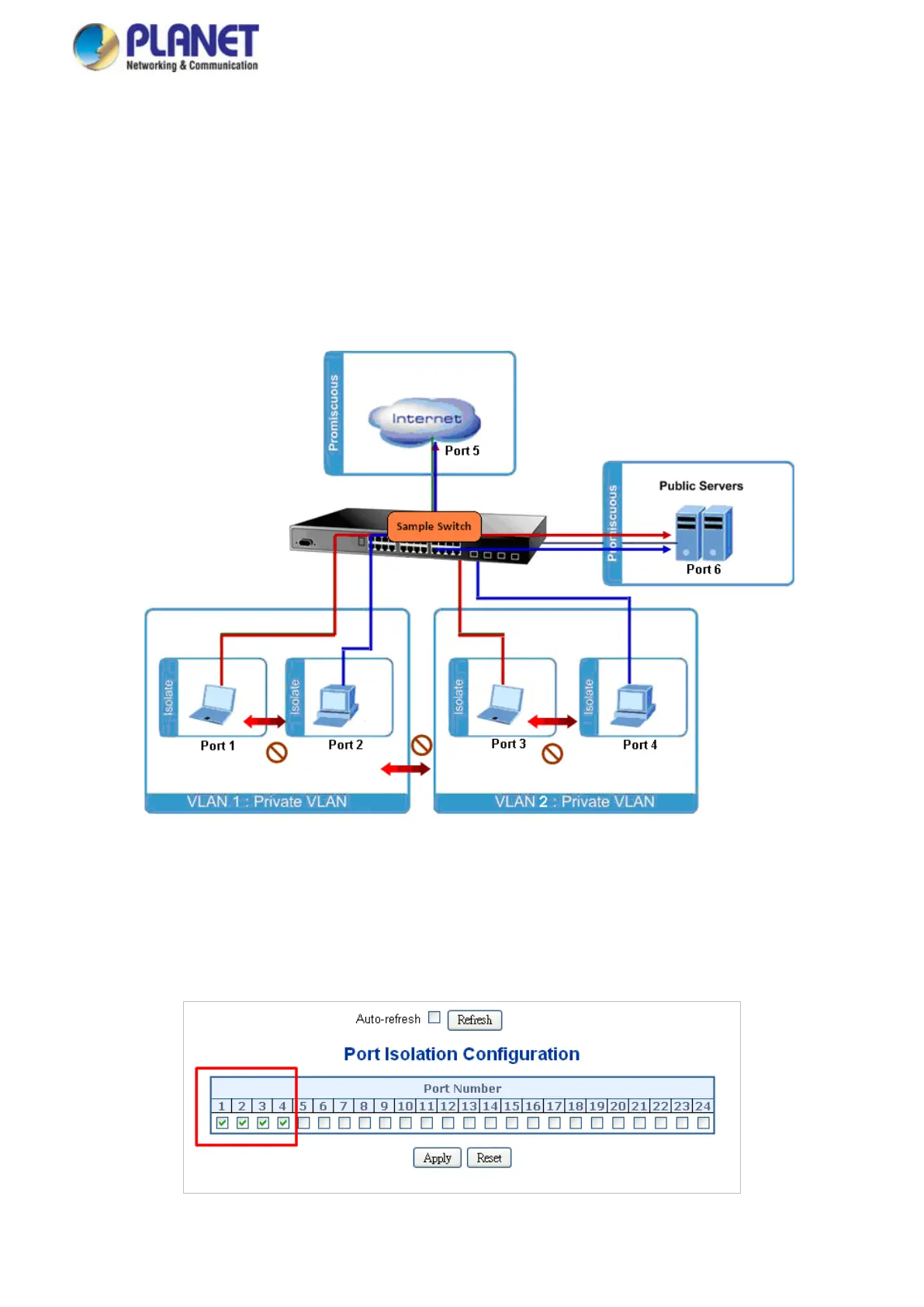

The diagram shows how the Industrial Managed Switch handles isolated and promiscuous ports, and the each PC is not able to
access the isolated port of each other’s PCs. But they all need to access with the same server/AP/Printer. This section will show
you how to configure the port for the server – that could be accessed by each isolated port.
Setup steps
1. Assign Port Mode
Set Port-1~Port-4 in Isolated port.
Set Port-5 and Port-6 in Promiscuous port. The screen in Figure 4-6-16 appears.
Figure 4-6-17: The Configuration of Isolated and Promiscuous Port
