EF or AF11-AF43
â– Sport Source TCP/UDP port:(0-65535) or 'Any', specific or port range
applicable for IP protocol UDP/TCP
â– Dport Destination TCP/UDP port:(0-65535) or 'Any', specific or port range
applicable for IP protocol UDP/TCP
• Action Parameters
â– Class QoS class: (0-7) or 'Default'.
â– DPL Valid Drop Precedence Level can be (0-3) or 'Default'.
â– DSCP Valid DSCP value can be (0-63, BE, CS1-CS7, EF or AF11-AF43) or
'Default'.
'Default' means that the default classified value is not modified by this QCE.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values
: Return to the previous page without saving the configuration change

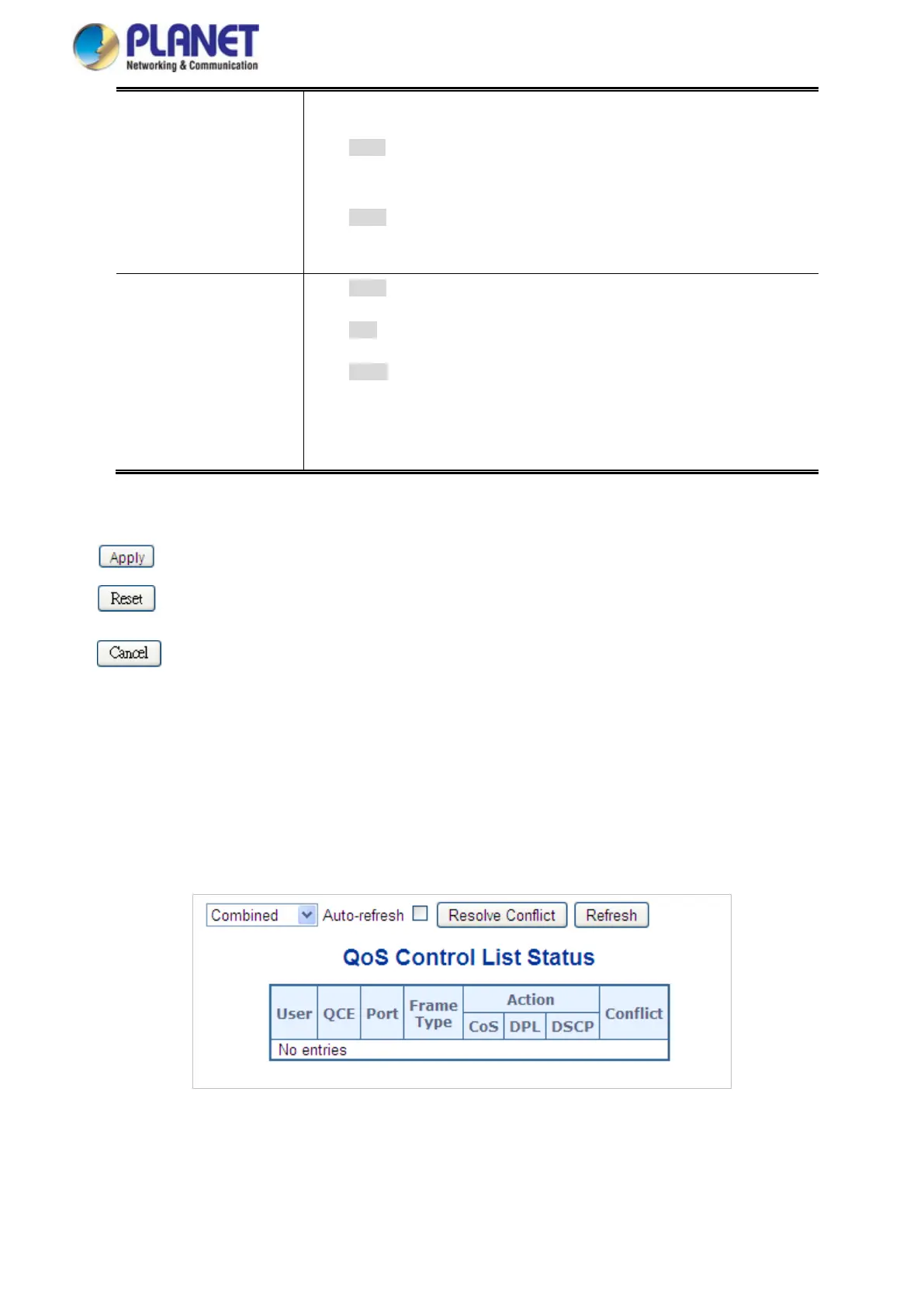

4.9.12 QCL Status
This page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific
QCE is not applied to the hardware due to hardware limitations. The maximum number of QCEs is 256 on each switch. The
QoS Control List Status screen in Figure 4-9-14 appears.
Figure 4-9-14: QoS Control List Status page Screenshot
To Next Page
