The default Role is Inactive.
• Immediate Leave
Enable the fast leave on the port.
Buttons
: Click to add new MVR VLAN. Specify the VID and configure the new entry. Click "Save"
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.8.17 MVR Status
This page provides MVR status. The MVR Status screen in Figure 4-8-20 appears.

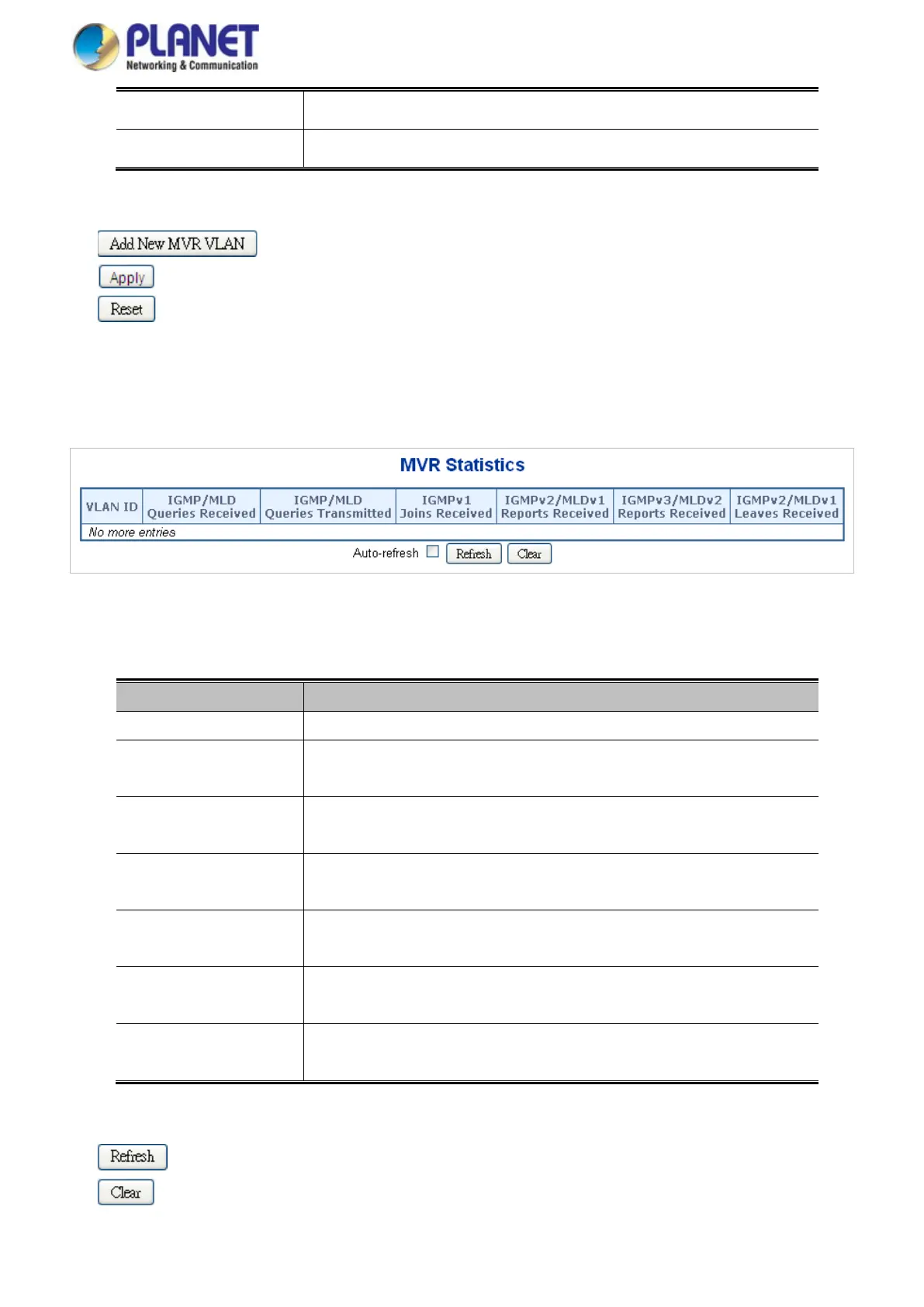

Figure 4-8-20: MVR Status page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
The Multicast VLAN ID.
• IGMP/MLD Queries
Received
The number of Received Queries for IGMP and MLD, respectively.
• IGMP/MLD Queries
Transmitted
The number of Transmitted Queries for IGMP and MLD, respectively.
• IGMPv1 Joins
Received
The number of Received IGMPv1 Joins.
• IGMPv2/MLDv1
Reports Received
The number of Received IGMPv2 Joins and MLDv1 Reports, respectively.
• IGMPv3/MLDv2
Reports Received
The number of Received IGMPv1 Joins and MLDv2 Reports, respectively.
• IGMPv2/MLDv1 Leaves
Received
The number of Received IGMPv2 Leaves and MLDv1 Dones, respectively.
Buttons
: Click to refresh the page immediately.
: Clears all Statistics counters.
