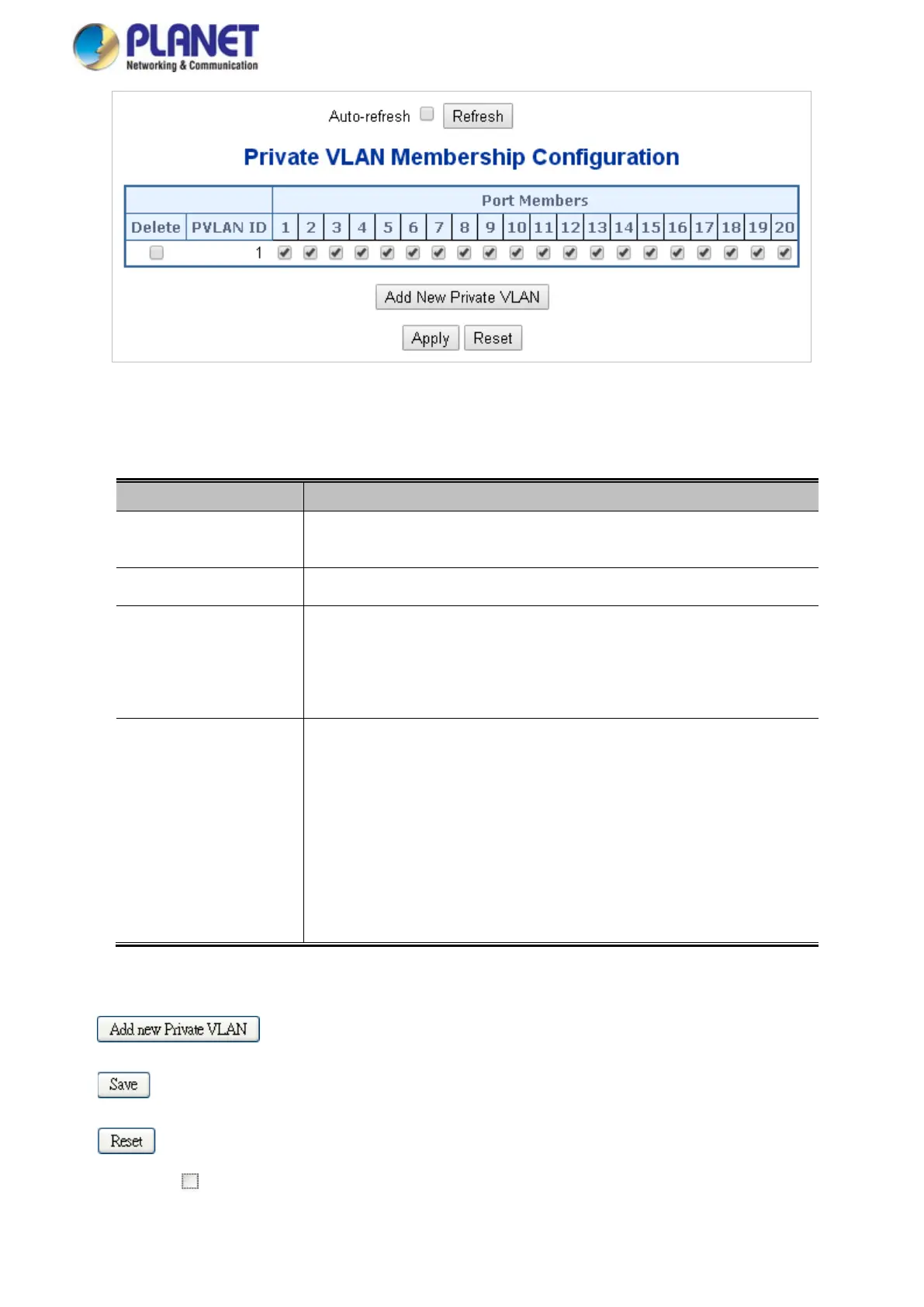

Figure 4-6-6 Private VLAN Membership Configuration page screenshot
The page includes the following fields:
Object Description
• Delete
To delete a private VLAN entry, check this box. The entry will be deleted during
the next save.
• Private VLAN ID
Indicates the ID of this particular private VLAN.
• Port Members
A row of check boxes for each port is displayed for each private VLAN ID. To
include a port in a Private VLAN, check the box. To remove or exclude the port
from the Private VLAN, make sure the box is unchecked. By default, no ports are
members, and all boxes are unchecked.
• Adding a New Private
VLAN
Click “Add New Private VLAN” to add a new private VLAN ID. An empty row is
added to the table, and the private VLAN can be configured as needed. The
allowed range for a private VLAN ID is the same as the switch port number
range. Any values outside this range are not accepted, and a warning message
appears. Click "OK" to discard the incorrect entry, or click "Cancel" to return to
the editing and make a correction.
The Private VLAN is enabled when you click "Save".
The “Delete” button can be used to undo the addition of new Private VLANs.
Buttons
: Click to add new VLAN.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
