User’s Manual
50
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1
2
3
4
5
6
DI0 DI1 DO0 DO1 GND GND

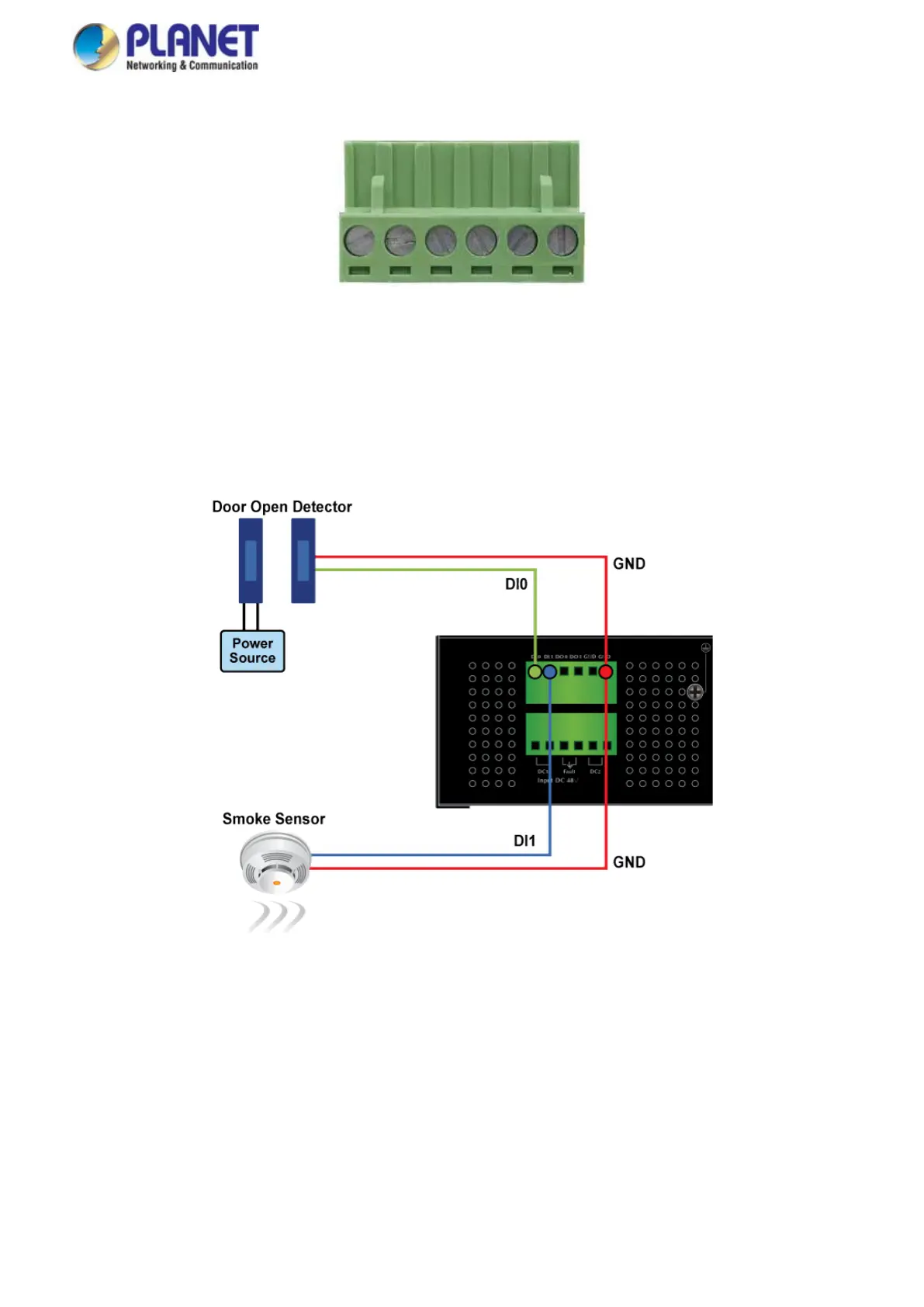

Figure 2-22 6-pin Terminal Block for DI and DO Wiring Input
3. There are two Digital Input groups for you to monitor two different devices. The following topology shows how to wire DI0
and DI1.
Figure 2-23 Wires DI0 and DI1 to Open Detector
