User’s Manual of IGS-20040MT
Envi
ronmentally Hardened Design
With IP30 aluminum industrial case protection, the IGS-20040MT provides a high level of immunity against electromagnetic
interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. It also
possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high
availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to
75 degrees C, the IGS-20040MT can be placed in almost any difficult environment.

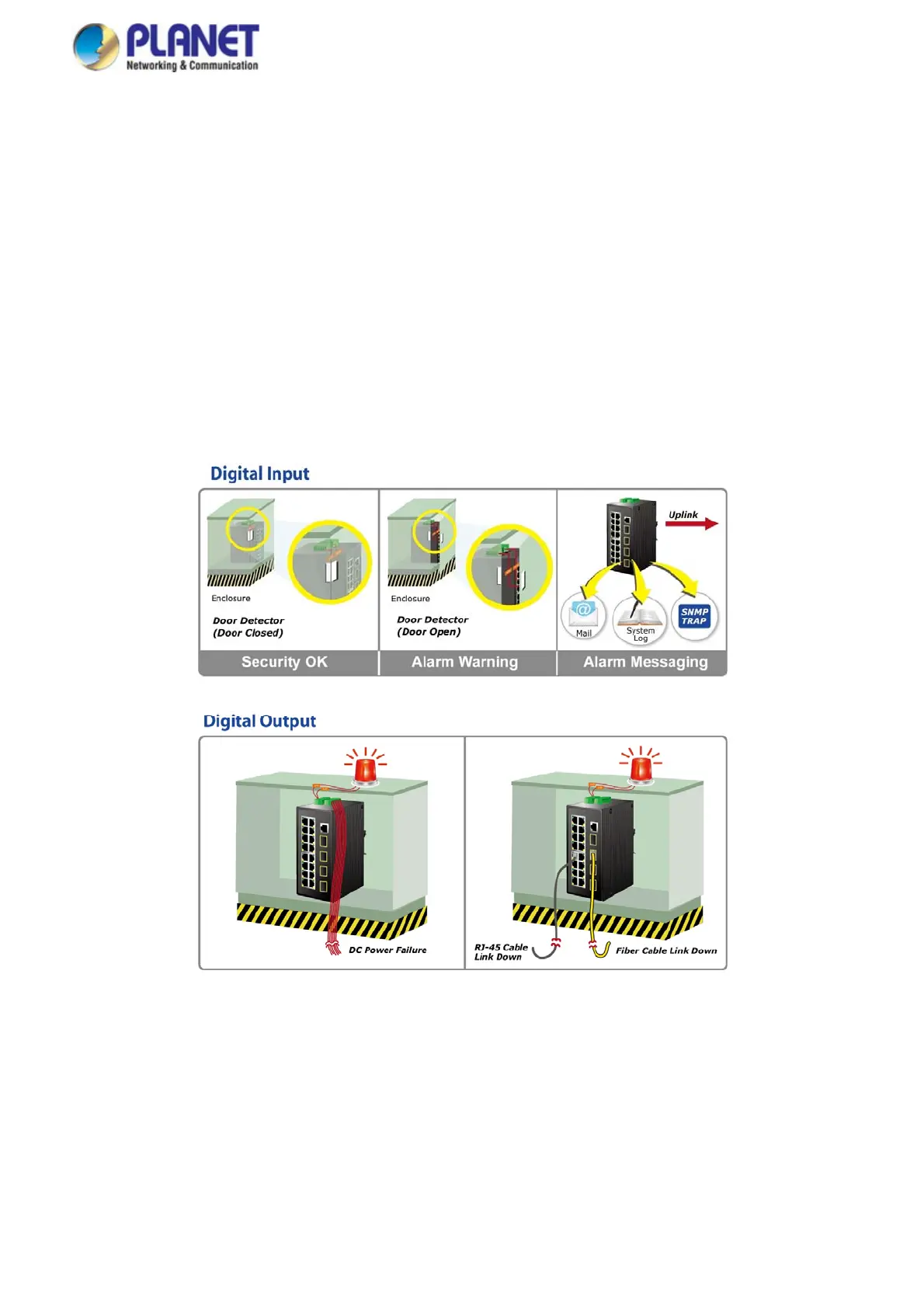

Digital Input and Digital Output for External Alarm
The IGS-20040MT supports Digital Input and Digital Output on its upper panel. The external alarm enables users to use Digital
Input to detect external device’s status (such as door intrusion detector), and send event alarm to the administrators. The Digital
Output could be used to alarm the administrators if the IGS-20040MT port is link-down, link-up or power-dead.
Robust Layer2 Features
The IGS-20040MT can be programmed for advanced switch management function, such as dynamic port link aggregation,
Q-in-Q VLAN, Multiple Spanning Tree Protocol(MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The
IGS-20040MT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 groups of
8 ports for trunking and supports connection fail-over as well.
12

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
