Planet IGS-20040MT User Manual

User’s Manual of IGS-20040MT
IPv6 / IPv
4 Full-functioned Secure Switch for Building Automation Networking
The IGS-20040MT is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch, especially in the
Industrial hardened environment. It supports both IPv4 and IPv6 protocols, advanced Layer 2 to Layer 4 data switching and
redundancy, QoS traffic control, network access control and authentication, and Secure Management features to protect
customer’s industrial and building automation network connectivity with reliable switching recovery capability that is suitable for
implementing fault tolerant and mesh network architectures.
IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
The IGS-20040MT offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses
for the purpose of having a highly-secured, flexible management and simpler networking application.
User-friendly Secure Management
For efficient management, the IGS-20040MT is equipped with console, Web and SNMP management interfaces. With the
built-in web-based management interface, the IGS-20040MT offers an easy-to-use, platform independent management and
configuration facility. The IGS-20040MT supports SNMP and it can be managed via any management software based on
standard of SNMP v1 and v2 protocol. For reducing product learning time, the IGS-20040MT offers Cisco-like command via
Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the IGS-20040MT
offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can encrypt the packet content at
each session.
Intelligent SFP Diagnosis Mechanism

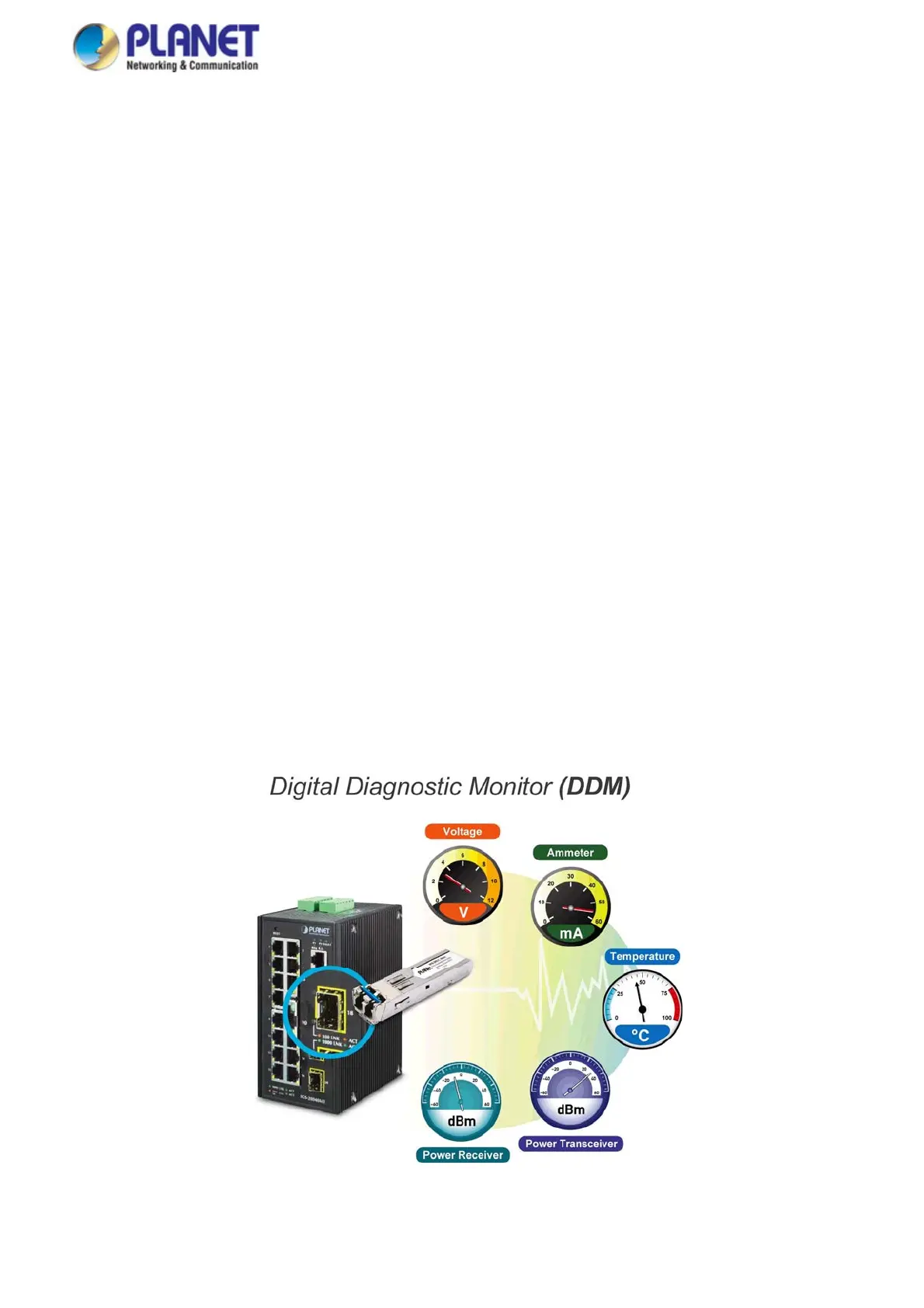

The IGS-20040MT supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of
the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and
transceiver supply voltage.
13

Planet IGS-20040MT Specifications

General

Switch type	Managed
Switch layer	L2+
Traffic classification	Yes
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4095
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Stackable	-
Certification	FCC, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Fiber ethernet cabling technology	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Throughput	29.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Number of IP interfaces	8
Power consumption (max)	17 W
Power consumption (typical)	8 W
Heat dissipation	27 BTU/h
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	IPv4 / IPv6
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Number of multicast groups filtered	255
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1043 g
