Polaris 2003 Pro X User Manual

ENGINE
2.30
Assembly, Cont.

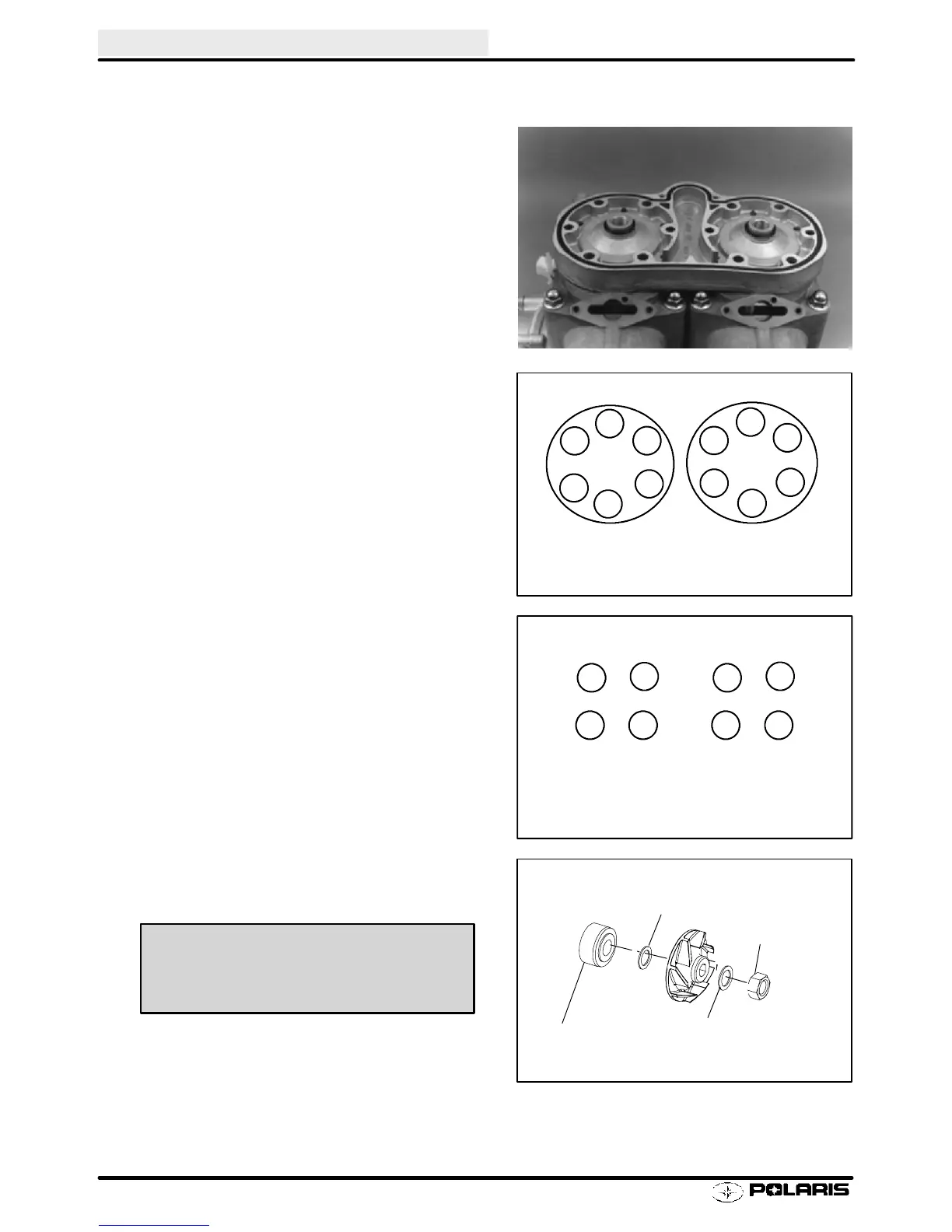

28. Install new cylinder head cover O-rings and install
cylinder head cover. Make sure O-rings are
properly seated in grooves. Apply a light film of
grease to hold O-rings in place if necessary.
29. Loctite 242 to threads of head bolts and install.
30. Torque head bolts to specification outlined on page
2.3 of this chapter.
31. Torque cylinder base nuts outlined on page 2.3--2.4
of this chapter.
32. Install washers and water pump impeller as
shown and torque nut to 10 ft. lbs. (14 Nm).
CYLINDER HEAD - 440 Pro X
1
4
2
6
3
8 5
10
7
11
9
12
3
2
4
1
5
6
7
8
CYLINDER BASE
440 Pro X
PTO
SIDE
MAG
SIDE
Washer
10.3x14x1mm
10 ft.lbs.
(14 Nm)
Washer
.325x.75x.063s
Mechanical
Seal
Engine side
Impeller Nut Torque:
10 Ft lbs (14 Nm)
