Polaris 2014 RZR XP 1000 Service Manual

6.20
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

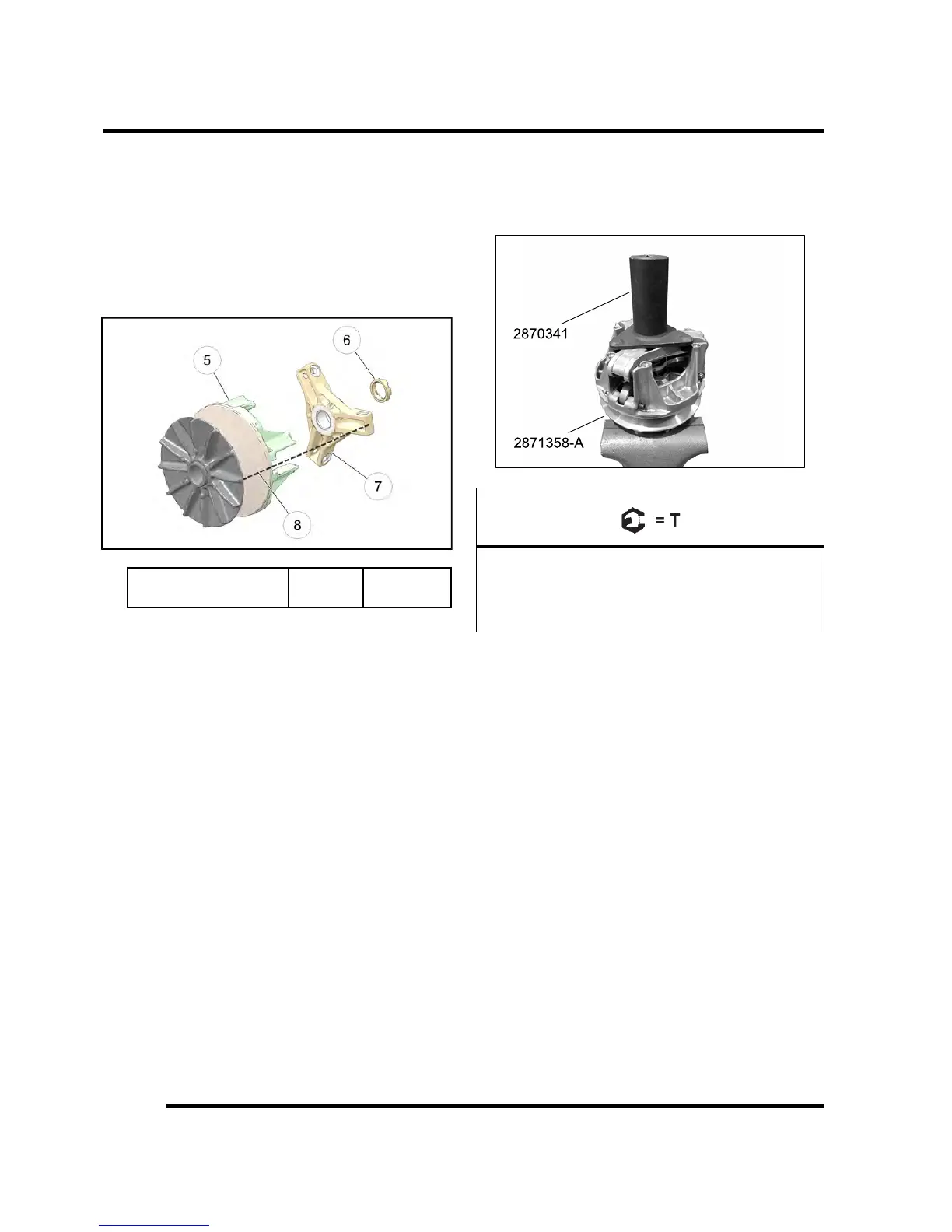

3. Install moveable sheave onto stationary sheave
shaft. Be sure the moveable sheave slides freely on
the spacer.
4. Apply 0.4 mL of Loctite® 620™ and 0.4 mL of
Loctite® 7088™ Primer in 90° apart in vertical stripes
to the shaft threads.
5. Install the spider assembly onto the shaft threads. Be
sure all of the alignment marks (Item 8) are in
alignment.
5. Moveable Sheave
Asm
6. Jam
Nut
7. Spider
6. Install clutch onto holding fixture (PN 2871358-A)
and secure in a bench vice. Tighten the spider using
Clutch Spider Tool (PN 2870341). Torque spider to
specification.
Spider Assembly:
290 ft-lb (393 Nm)
(Apply 0.4 mL Loctite® 7088 Primer and 0.4 mL
Loctite® 620™) in 90° apart in vertical stripes to the
shaft threads.
7. Apply 0.1mL of Loctite® 620™ and 0.1mL of
Loctite® 7088™ Primer in 90° apart to the threads of
the spider jamb nut. Install spider jamb nut onto
stationary shaft threads.
CLUTCHING
