6.21

9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual

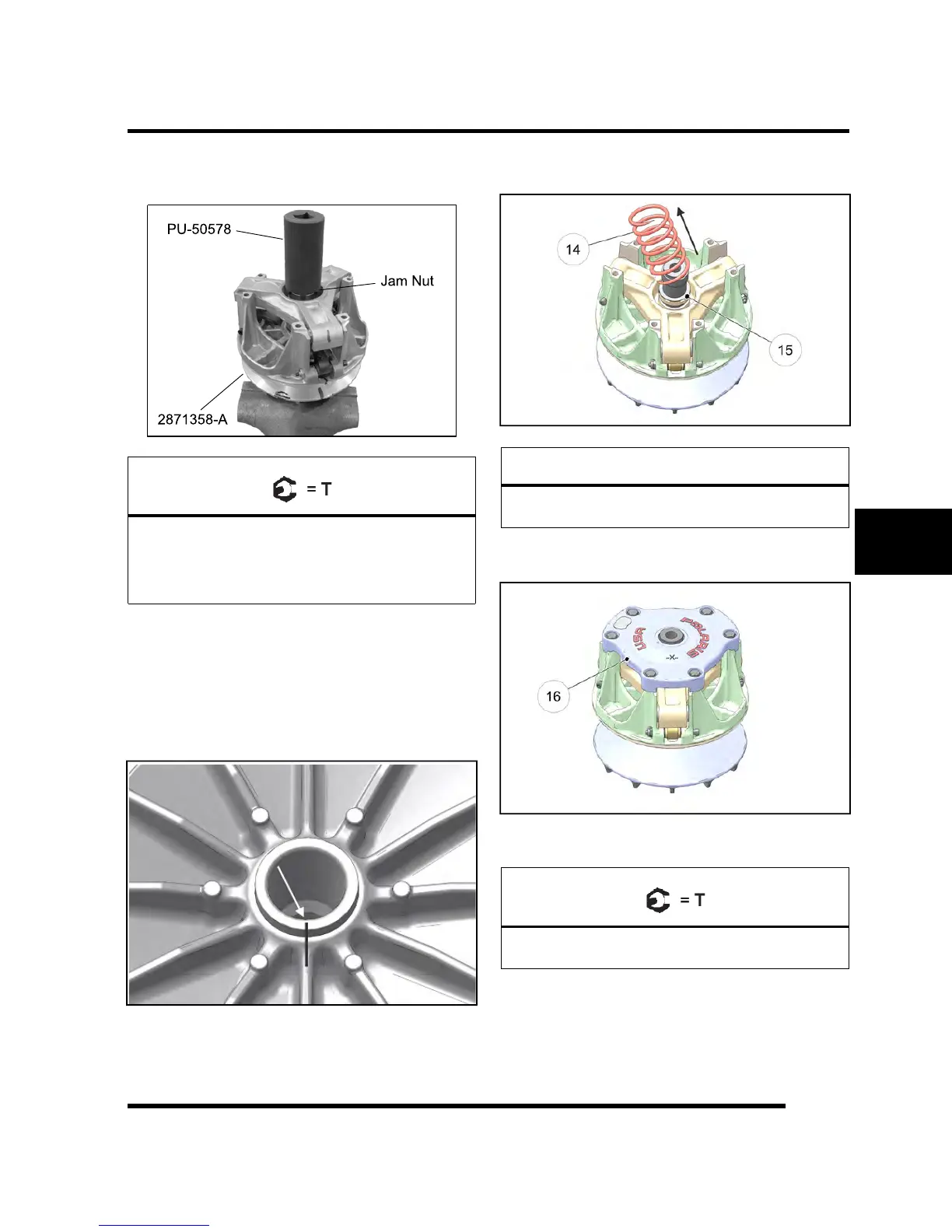

8. Tighten the spider jamb nut using Clutch Spider Nut

Socket (PU-50578). Torque jam nut to specification.

Spider Jamb Nut:

250 ft-lb (339 Nm)

(Apply 0.1 mL Loctite® 7088 Primer and 0.1 mL

Loctite® 620™) in 90° apart to the threads of the

spider jamb nut.

9. After the spider and jamb nut have been torqued,

remove the clutch assembly from the holding fixture

and inspect the alignment marks made during

disassembly.

NOTE: If the marks illustrated below are not in

alignment upon assembly, the clutch will not be

in balance and the drive clutch assembly must

be replaced.

10. Install the limiter spacer (Item 15) and the clutch

spring (Item 14).

CAUTION

DO NOT reassemble the drive clutch without the limiter

spacer. Belt life will be greatly reduced.

11. Install the drive clutch cover (Item 16). Be sure all

alignment marts are in alignment.

12. Install cover bolts and torque in a cross pattern

evenly to specification.

Drive Clutch Cover Bolts:

9 ft-lb (12 Nm)

CLUTCHING
