8.40

9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual

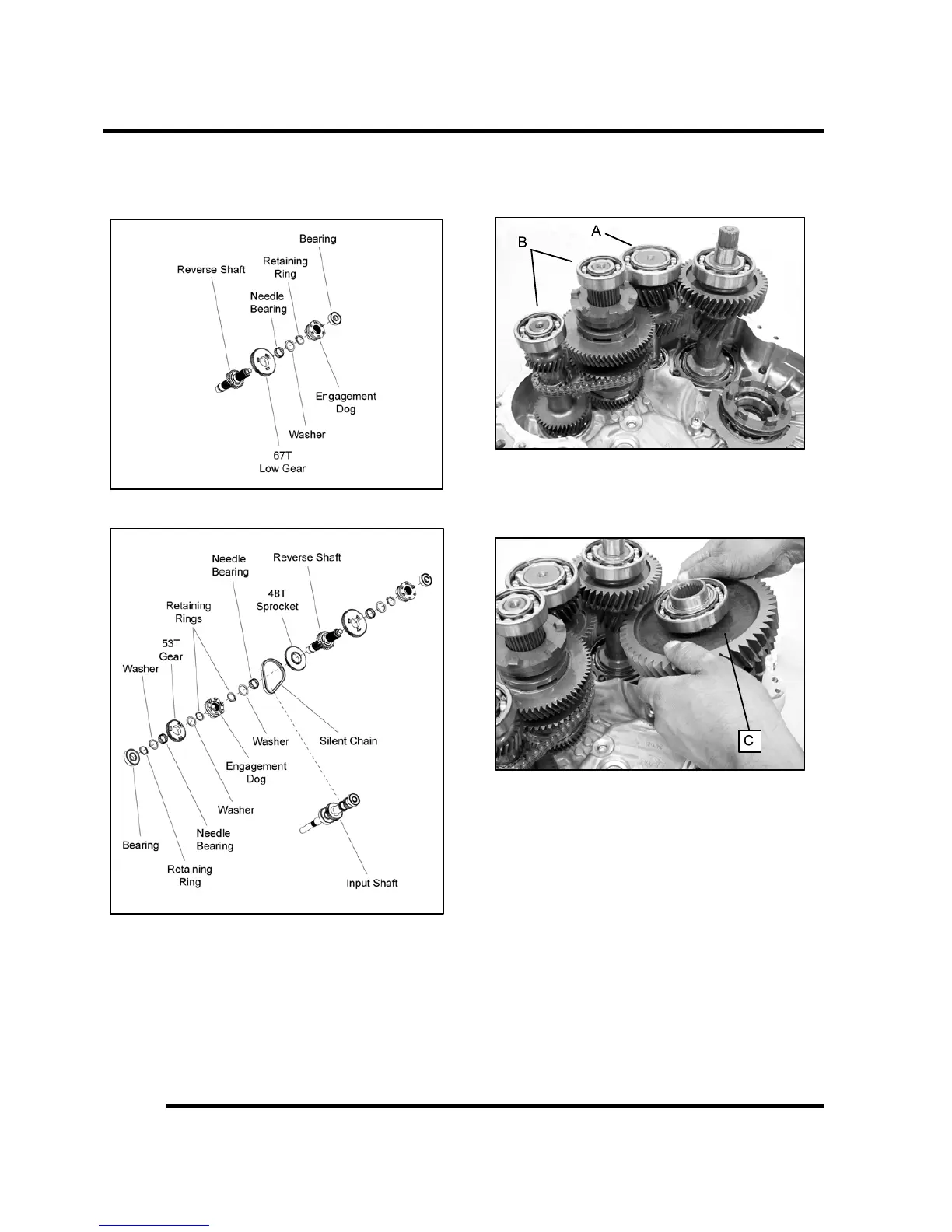

21. Assemble the reverse shaft assembly and input shaft

assembly if previously disassembled (see

illustrations).

22. Install the idler gear shaft assembly (A) and gear

cluster assembly (B) into the transmission housing,

all at the same time.

23. Install the rear output shaft assembly (C). Rotate

output shaft assembly to align slots with engagement

dog. Ensure bearing is fully seated upon assembly.

TRANSMISSION
