Polaris 2014 RZR XP 1000 Service Manual

8
8.41
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

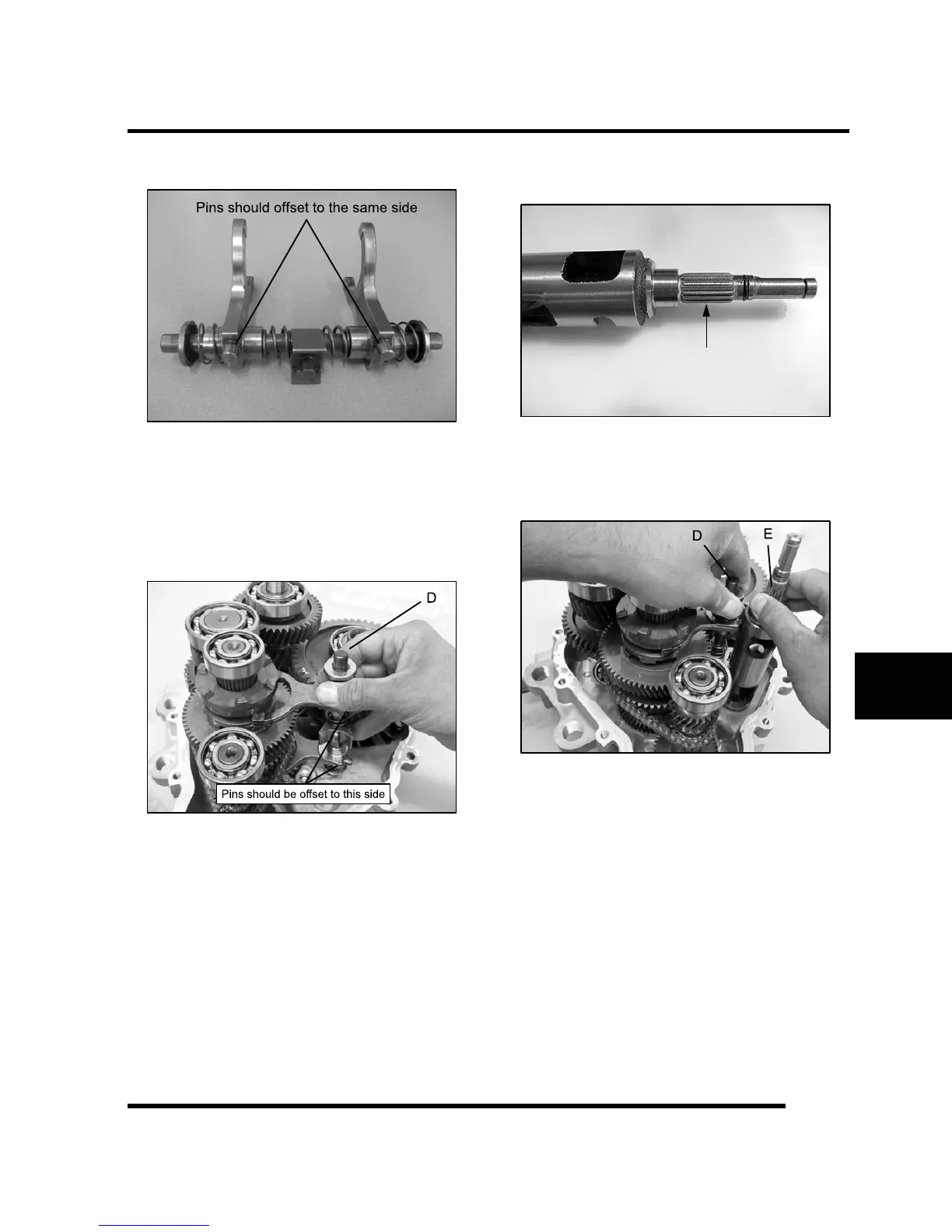

24. Assemble shift shaft rail if previously disassembled.
NOTE: Both shift forks need to be orientated the
same way, so that the shift fork pins are both
offset to the same side of the rail.
25. Install the shift shaft rail (D) and shift forks into the
transmission housing as an assembly. Be sure the
shift forks are engaged into the engagement dogs.
NOTE: Shift fork pins should be offset towards
the input shaft as shown above.
26. Inspect the shift drum for any damage or wear.
Inspect the splines of the shift drum.
27. Install the shift drum (E) into the transmission
housing. Lift up on the shift shaft rail (D) and move
the rail assembly towards the shift drum to allow the
shift fork ends to be installed into the shift drum (E).
28. Apply a continuous bead of Crankcase 3 Bond
Sealant (PN 2871557) to the left hand transmission
mating surface.
TRANSMISSION
