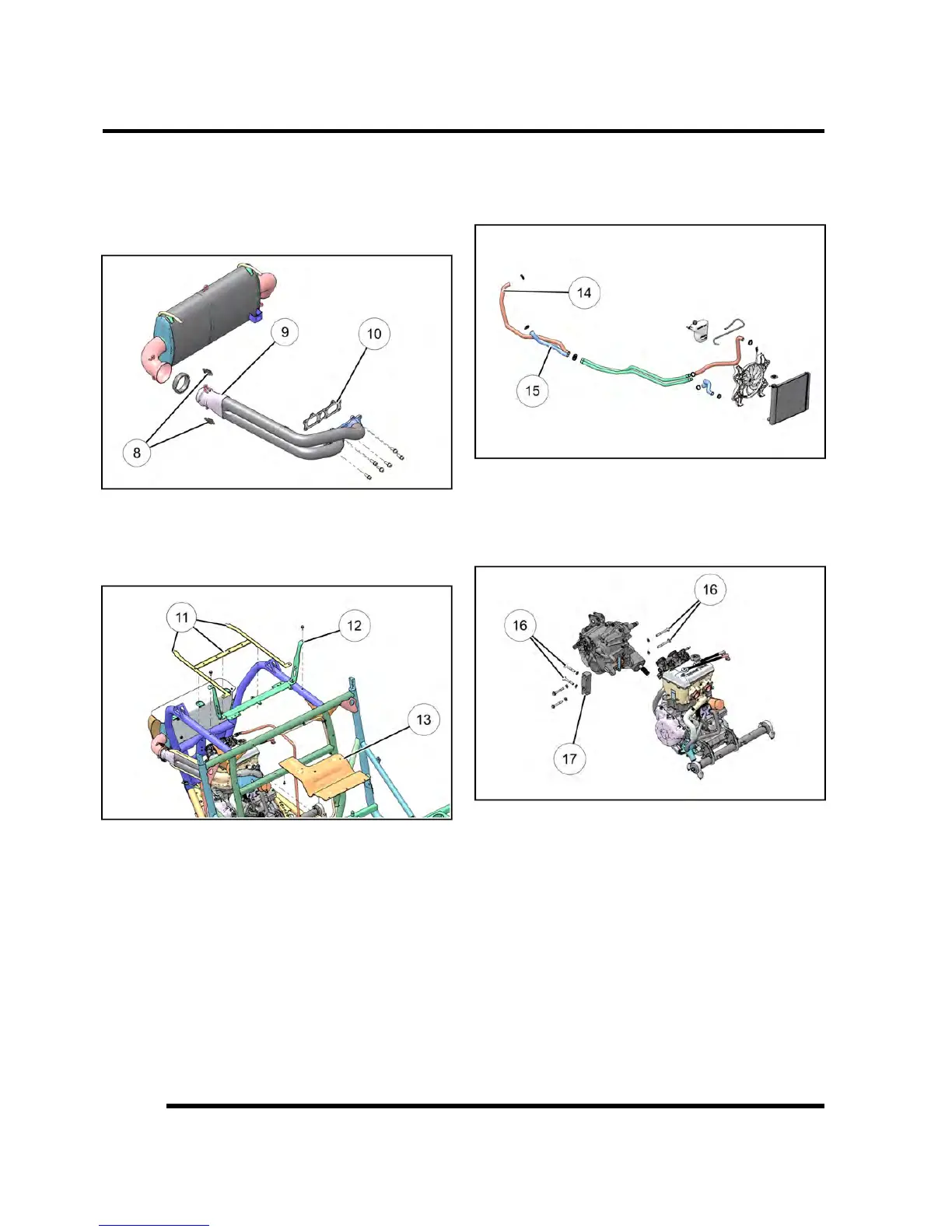

19. Remove the six fasteners that attach the exhaust
head pipe to the engine. Remove the two exhaust
springs (Item 8) that attach the head pipe (Item 9) to
the muffler. Remove exhaust head pipe towards the
front of the vehicle. Discard exhaust gaskets (Item
10).
20. Remove the four fasteners retaining the box support
(Item 11) and the two fasteners retaining the box
support bracket (Item 12). Remove the push rivet
that attaches the heat shield (Item 13) to the rear
cross member.
21. Place a suitable drain pan under the vehicle and
remove the thermostat housing coolant hose (Item
14) and the water pump coolant hose (Item 15) from
the engine. Dispose of engine coolant properly.
22. Use an overhead or portable engine hoist and
suitable engine straps to secure engine in its current
position.
23. Remove the four rear mounting bolts (Item 16) that
attach the rear of the engine to the transmission.
NOTE: It is not necessary to remove the bolts
that retain the bracket (Item 17) to the
transmission.
