9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

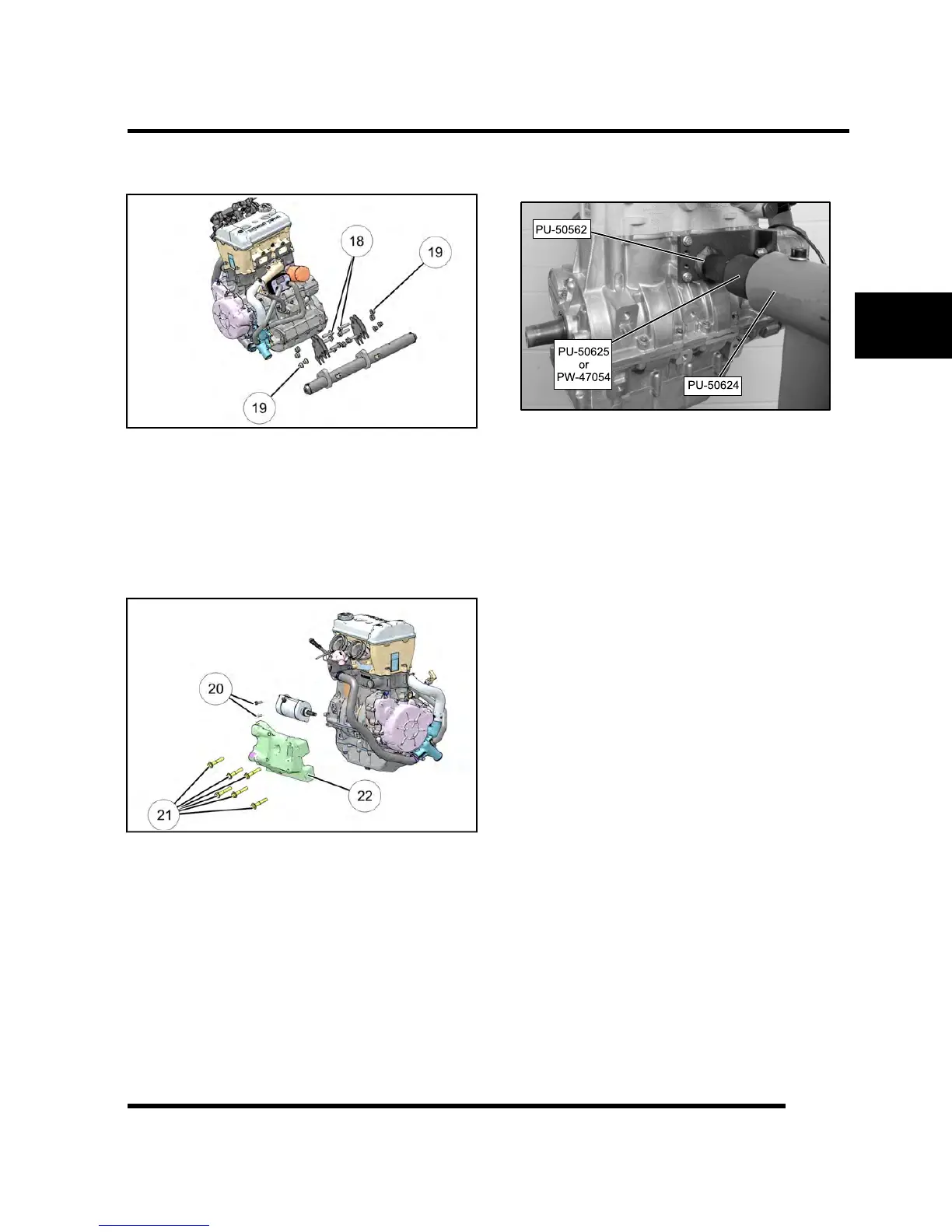

24. Remove the four front engine mounting bolts (Item
18) and nuts (Item 19).
25. With the help of an assistant and the engine hoist,
raise the engine vertically out of the vehicle frame.
NOTE: Have an assistant help guide the engine
in and out of the vehicle while using an engine
hoist to prevent personal injury or damage to
vehicle components.
26. Remove the starter motor bolts (Item 20) and starter
motor from the engine.
27. Remove the six transmission joint bracket bolts (Item
21) and transmission joint bracket (Item 22) from the
engine.
28. Install the engine stand adapter (PU-50562) onto the
engine where the starter motor was located.
29. Select the proper engine stand sleeve adapter and
install it onto the engine stand adapter.
• Sleeve adapter for a 2″ bore engine stand:
• (PU-50625)
• Sleeve adapter for a 2.375″ bore engine stand:
• (PW-47054)
30. Place engine onto the engine stand (PU- 50624) for
service.
ENGINE
