Master Effects
10
Master Effects
10
10.1 Effects Overview
Tracker has 8 voices which would represent each of the tracks playback.
The common processing of the voices comes together at the master stage
where the voices are mixed and the master effects applied. Also the Delay
and Reverb ‘send’ audio is mixed into the main out.

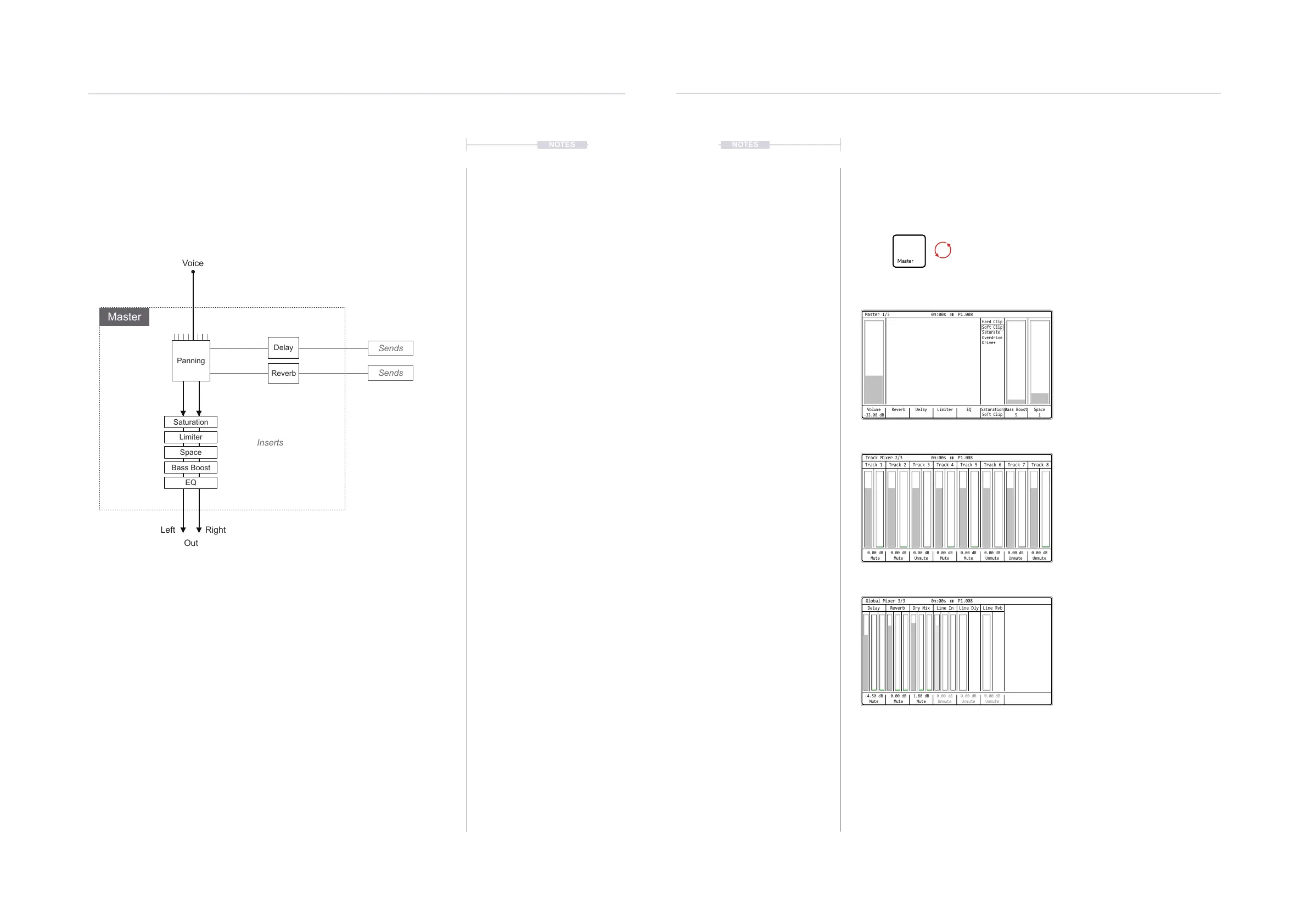

The diagram shown is for illustration purposes and does not constitute an
exact or ofcial schematic of Polyend’s Tracker circuitry. It does however
serve to give an insight into the signal path and identify the six master
effects covered in this section.
The reverb and delay send effects can be sent pre-fader or post-fader in the
global mixer. This is set in the ‘Cong’ settings. This means the effect is sent
before the volume fader or after the volume fader adjustment.
10.2 Master Pages
The 6 master effects are located in the master section of Tracker. This is
accessible with the [Master] dedicated button which opens to 3 mixer /
master pages. The main effects settings are contained within this pages.
To adjust effect parameters, select the page then use the screen buttons or
use [Left] or [Right] to select the parameter. Screen buttons select pages
such as delay, reverb etc. Turn (Jog) or Press [Up] or [Down] to change the
selected parameter value. Multiple track mixer levels can be adjusted when
holding the screen buttons simultaneously.
Master
Volume
-33.08 dB
Reverb Delay EQ Saturation
Soft Clip
Hard Clip
Soft Clip
Saturate
Overdrive
Drive+
Bass Boost
5
Limiter Space
1
Master 1/3 0m:00s P1.008
0.00 dB
Mute
0.00 dB
Mute
0.00 dB
Unmute
0.00 dB
Unmute
0.00 dB
Mute
0.00 dB
Unmute
0.00 dB
Mute
0.00 dB
Unmute
Track 2 Track 6Track 3 Track 7Track 4 Track 8Track 1 Track 5
Track Mixer 2/3 0m:00s P1.008
-4.50 dB
Mute
0.00 dB
Mute
1.80 dB
Mute
0.00 dB
Unmute
0.00 dB
Unmute
0.00 dB
Unmute
Reverb Line RvbDry Mix Line InDelay Line Dly
Global Mixer 3/3 0m:00s P1.008
Press [Master] to select the Master section.
Each Press of [Master] will cycle through 3 master pages:
Master, Page 1; Track Mixer, Page 2; Global Mixer, Page 3.
Master - Page 1/3
Gives access to the master output level volume
level. Access to the settings pages for the Limiter
and EQ are available from the screen buttons.
The Saturation, Bass Boost and Space effects
have one parameter each and are directly
adjustable when selected with (Jog). The two
send effect parameter pages are also accessible
when using the respective screen buttons.
Track Mixer - Page 2/3
Gives access to the individual track levels to
allow mixing of the entire song. Hold one or more
screen buttons and turn (Jog) to adjust.
Mute and Solo can be set here as well as editing
the track names when [Rec] is active.
No effects are provided from this page.
Global Mixer - Page 3/3
The main output delay and reverb sends are
visible and can be adjusted. The main dry and
wet mix of the audio and effects is also provided.
Control for pass through of line inputs. Reverb
and delay can be applied to this audio signal.
Pre-fader or post-fader are in the congurable in
the ‘Cong’ settings.
All settings accessible with the screen buttons
Saturation
Limiter
Space
Bass Boost
EQ
Sends
Inserts
Sends
Out
Voice
Left Right
Master
Delay
Reverb
Panning
