7088-8000
-142
F.4 Configuring the Flowmeter
The setup options are located on the
CONFIGURATION
tab in four separate screens. A list
of the option groups contained in the screens is displayed in the Options Column on the
left. By clicking on an option group in the column, the appropriate configuration screen is
displayed (Figures F-10 through F-13).
NOTE:
Refer to Section F.6 for information on configuring the RS232 settings.

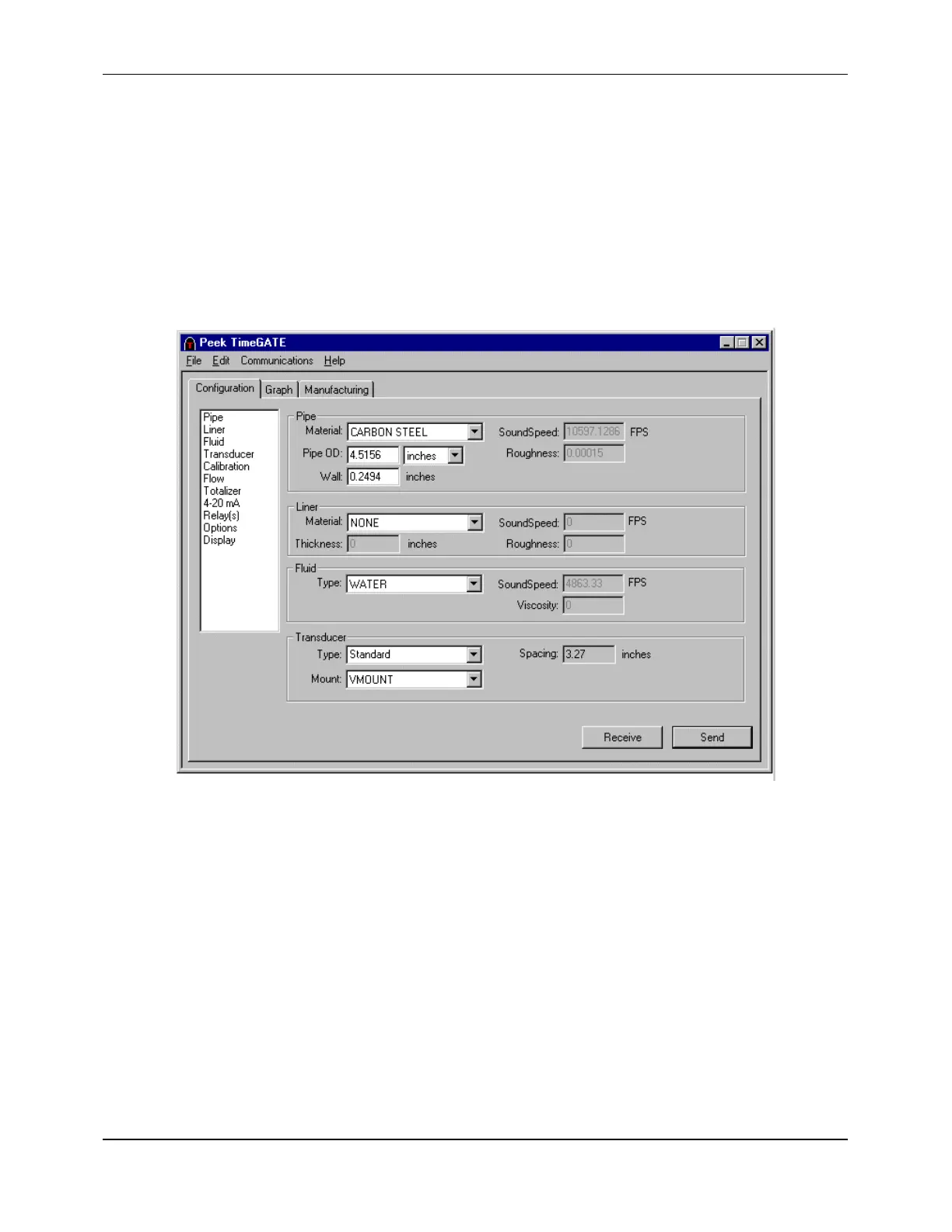

Figure F-10 Configuration Screen 1
