7088-8000
-17
SYSTEM COMPONENTS
2.1 Breakout Box Components

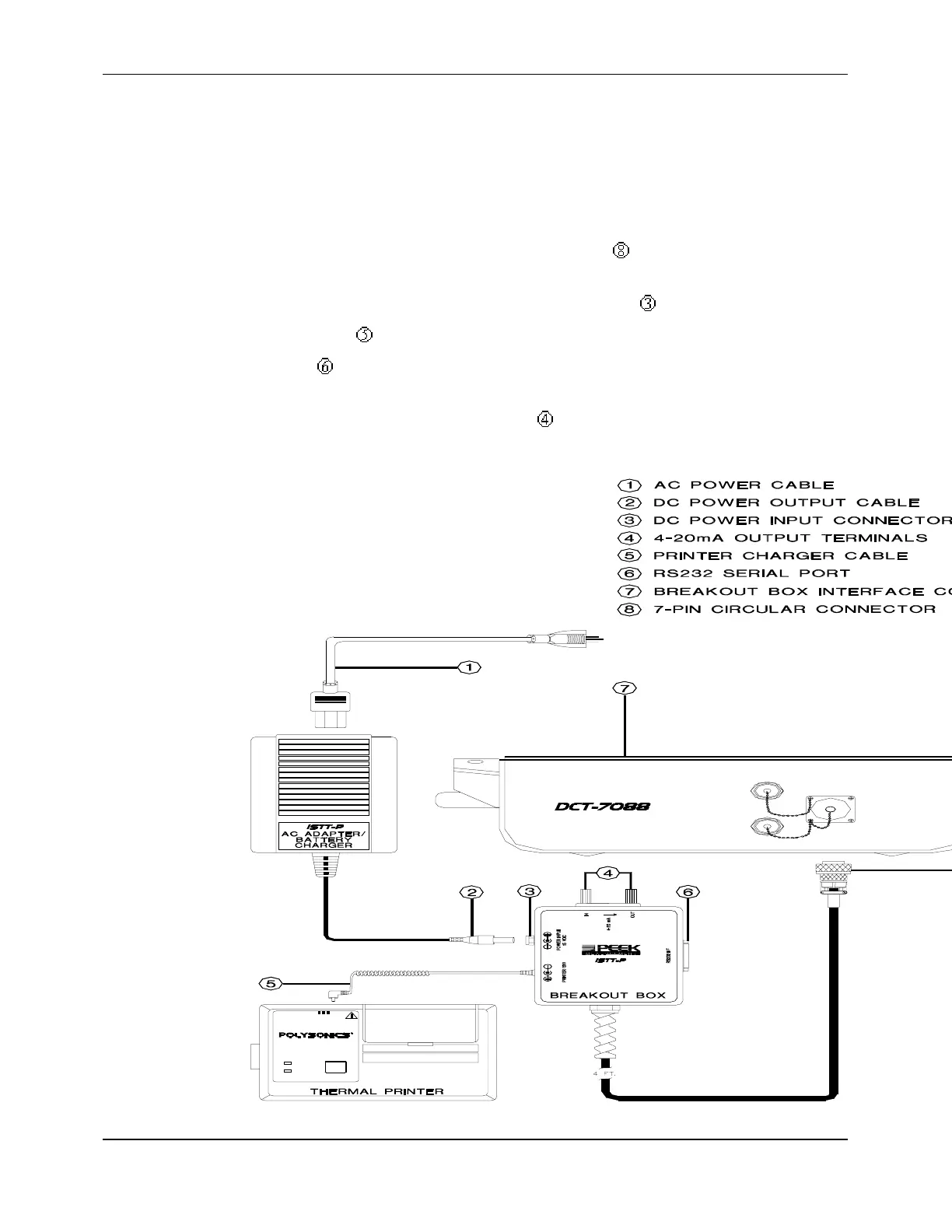

The breakout box components are illustrated in Figure 2-1. The breakout box connects the
flowmeter through the 7-pin circular breakout box connector . The breakout box
provides an interface for the following connections:
!
15 volt DC power input from the battery charger/AC adapter (Section 1.5)
!
6 volt DC output cable for charging the printer battery (Section 2.1.2)
!
RS232 serial port for transferring data log files, for providing connection to a remote
terminal, and for other computer applications (Appendices A and F)
!
4-20 milliampere current loop output terminals (Chapter 6)
