2.2 Slide Track
The transducer slide track (Figure 2-2) comes standard with the DCT-7088. In many
applications, the slide track allows the user to accurately space the transducers before
mounting them as a single assembly on the pipe. Refer to Section 4.2.1 for procedures and
limitations related to the slide track.

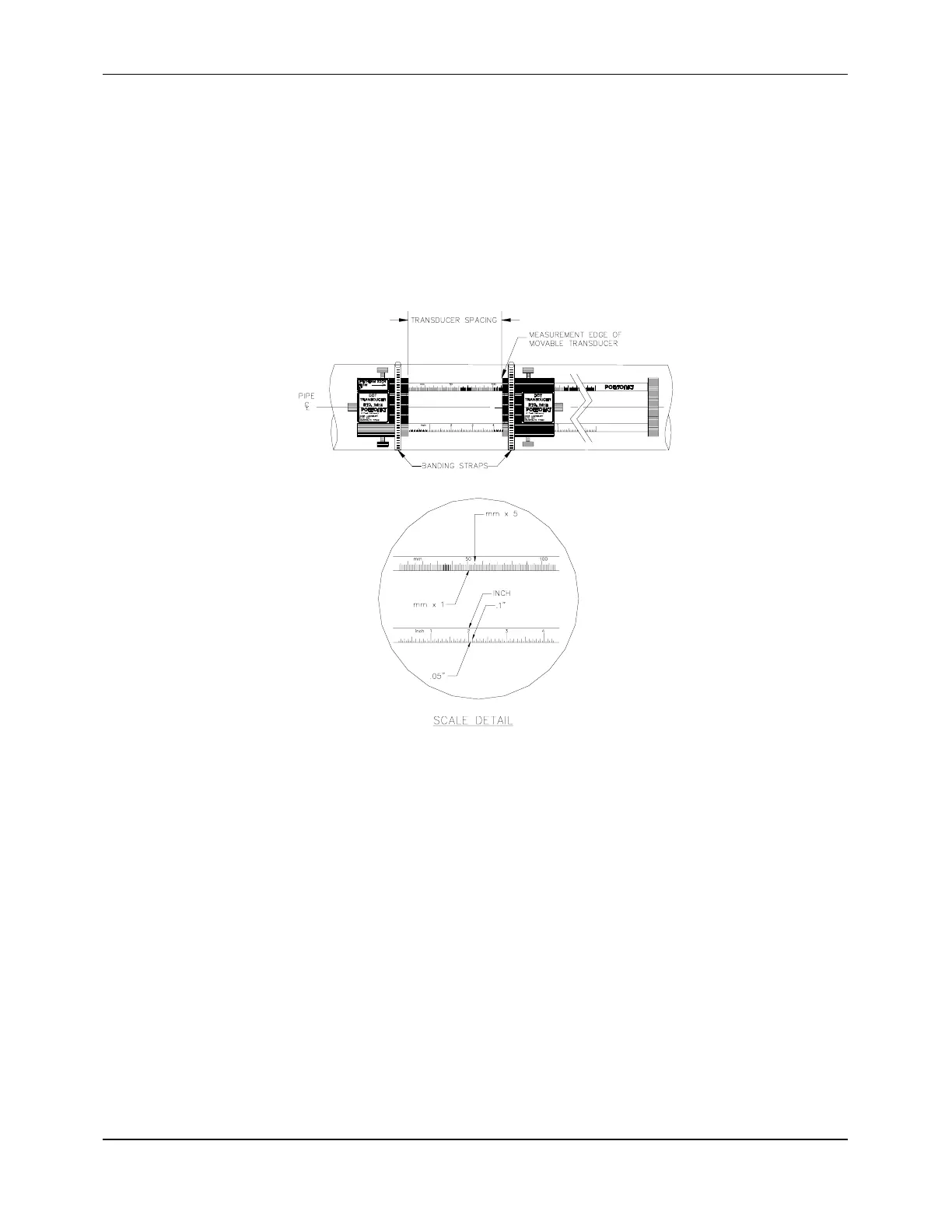

Figure 2-2 Slide Track
