Appendix C
A-65
4.4 Transducer Mounting Methods
There are three methods of mounting the transducers, which are available in Menu 24. The
best method is determined by the specific application.
The mounting methods are as follows:
!
V method (Section 4.4.1)
!
W method (Section 4.4.2)
!
Z method (Section 4.4.3
4.4.1 V METHOD
The V method (Figure 4-4) is considered the standard method. It usually yields a more
accurate reading than the Z method since it utilizes a longer measurement path. To mount
the transducers with the V method, follow the procedures for spacing and mounting the
transducers in Section 4.2. Ensure that the V method is selected during the configuration
step.

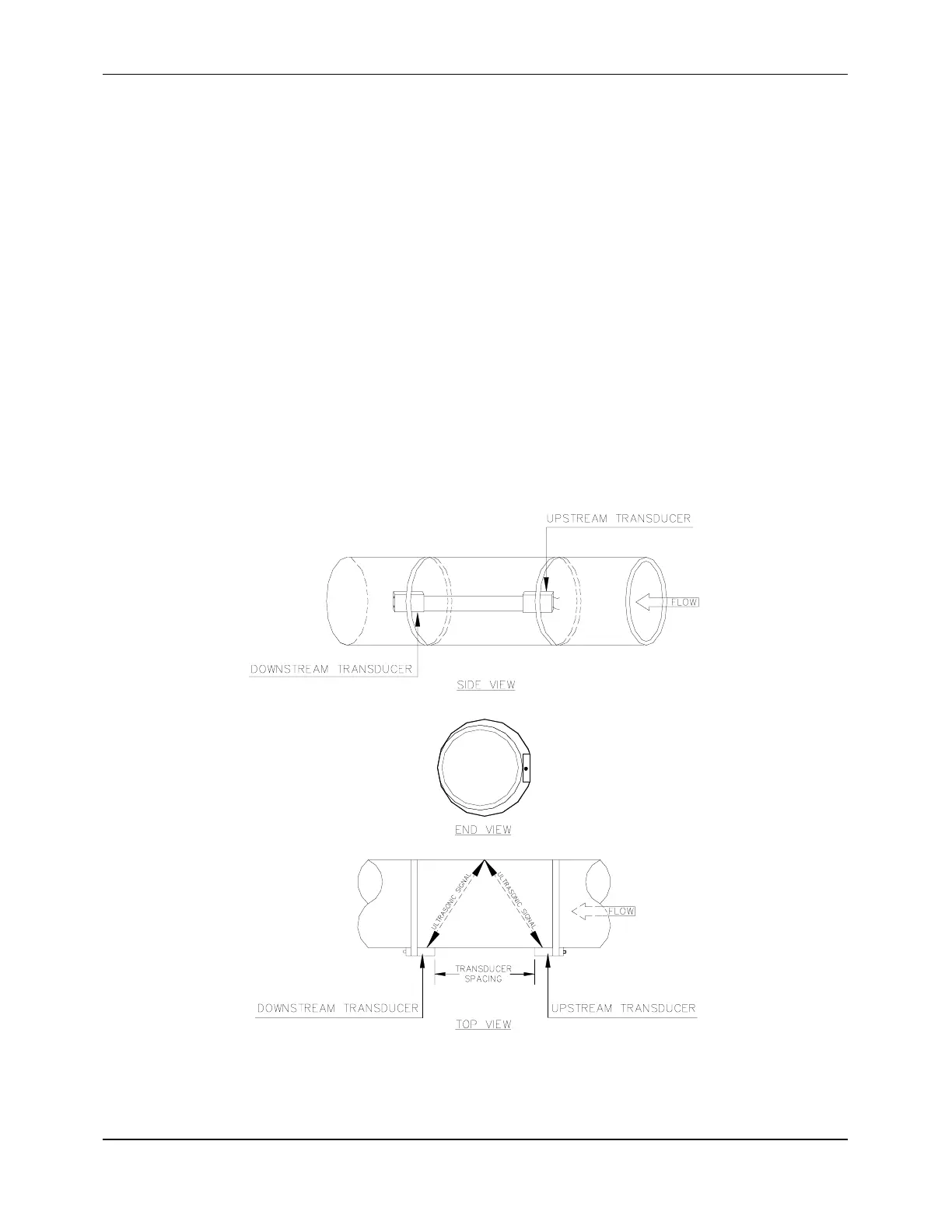

Figure 4-4 Mounting the Transducers with the V Method
