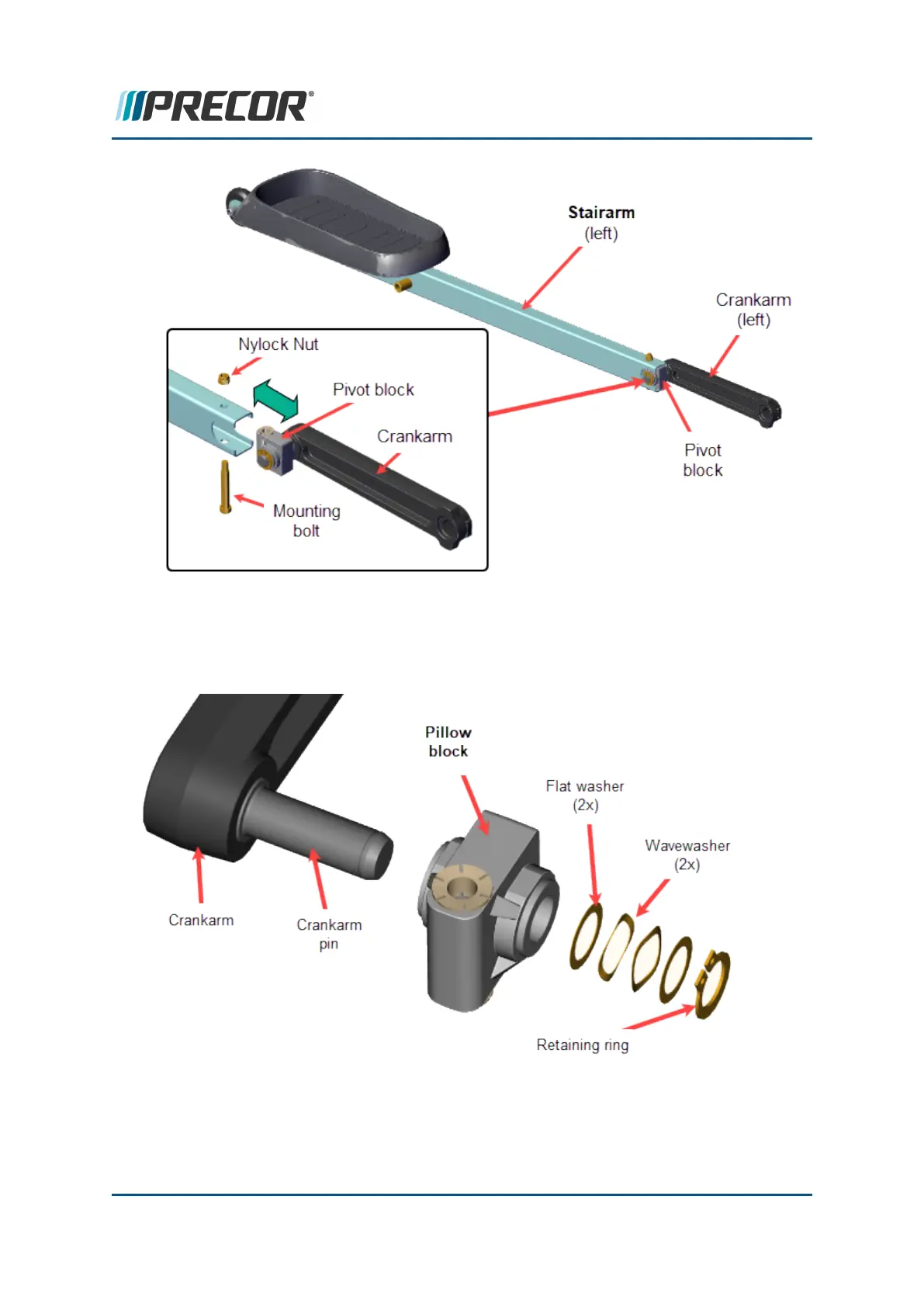

4. Remove the stairarm pivot block retaining ring, two flat washers (2x) and two wave
washers (2x) from the crankarm pin. Slide the stairarm pivot block off the crankarm
pin. Inspect the condition of the crankarm pin, Pivot Block, flat washers, wave wash-
ers, and the retaining ring. Discard and replace any worn parts.
Installation
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 167
6 Available Replacement Procedures
Stairarm Pivot Block Replacement
