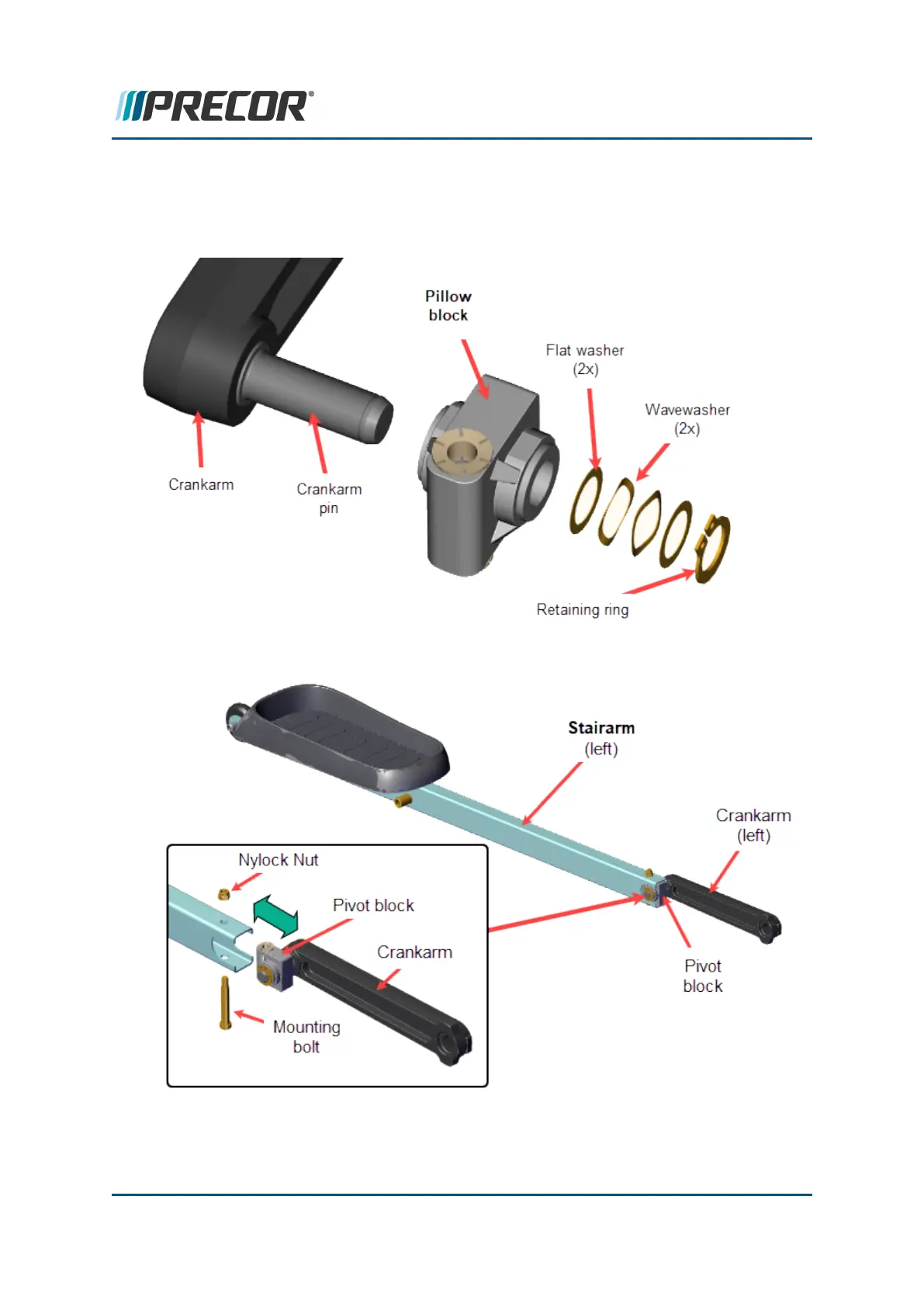

5. Slide the stairarm pivot block onto the crankarm pin. Then install a flat washer, two
wave washers (2), and flat washer in that order onto the stairarm pin. Secure using
the retaining ring. Make sure that the retaining ring is properly seated in the crank pin
grooves.
6. Reinstall the Stairarm, see "Stairarm Assembly Replacement" on page163.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 168
6 Available Replacement Procedures
Stairarm Pivot Block Replacement
