6. Left side outrigger side tube removal:
a. Remove the console and disconnect the data cable from the console, see "Con-
sole Replacement" on page93.

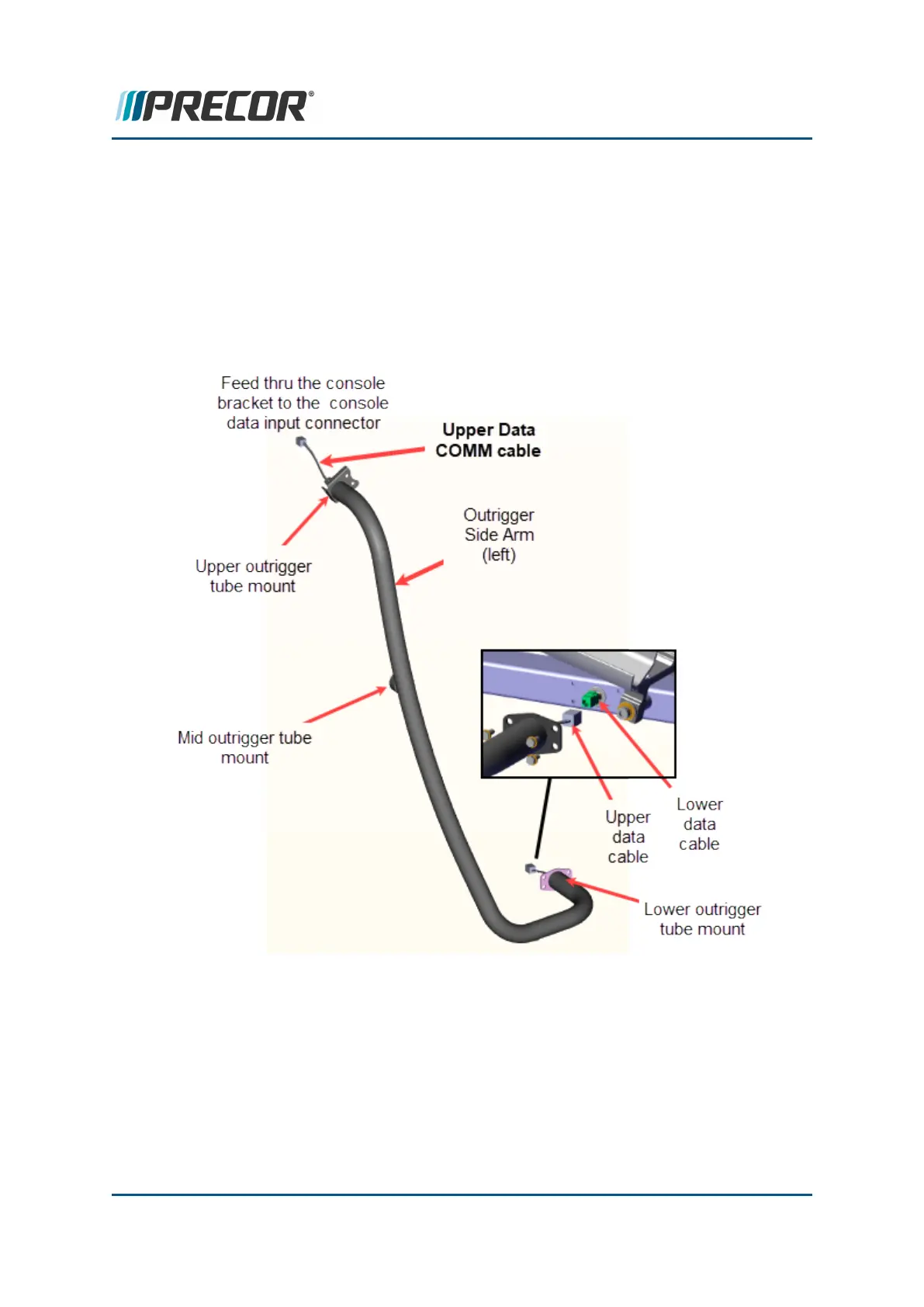

b. Carefully remove the outrigger tube from the moving arm pivot shaft (moving
arm models) or the H-bar tube mount (no moving arm models). The upper data
cable must be feed through the console bracket at the upper outrigger tube
mount and disconnected from the lower data cable at the lower outrigger tube
mount.
7. Right side outrigger side tube removal:
a. Carefully slide the outrigger tube from the moving arm pivot shaft (moving arm
models) or the H-bar tube mount (no moving arm models) and remove.
Installation
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 182
6 Available Replacement Procedures
Outrigger Side Tube Replacement
