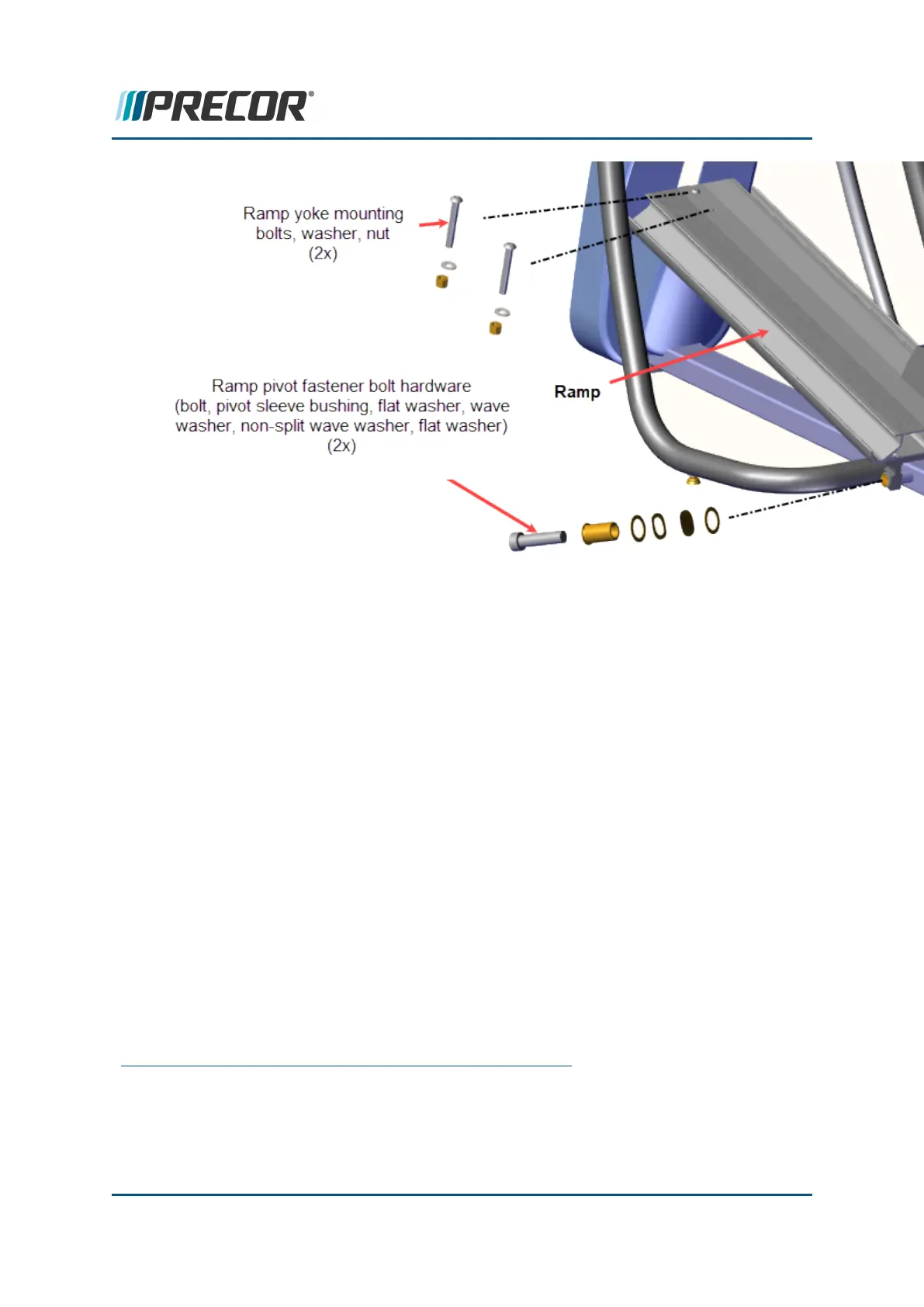

7. Remove the two upper ramp yoke mounting bolts (2x), flat washers (2x), nuts (2x),
and disconnect the lift yoke from the crossramp. Hold the ramp while removing the
yoke mounting bolts to keep the ramp from falling and possibly scratching or dam-
aging parts.
Installation
8. Reinstall the ramp onto the yoke and secure using the two upper ramp yoke mounting
bolts (2x), flat washers (2x), nuts (2x). Torque
1
to 240 in-lbs (20 ft-lbs, 27 Nm)
1
Torque is a measure of the force that can cause an object to rotate about an axis. Bolt/nut
example: 5 NM torque is equivalent to 5 newton's of force applied one meter from the center
of the bolt, 6 ft-lb is equivalent to 6 lbs of force applied 1 foot away from the center of the
bolt.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 188
6 Available Replacement Procedures
Ramp Replacement
