Precor Precision 400 Series - Page 200

8. Reinstall he four bolts that fasten the ramp pivot bracket to the ramp. Torque to 144
in-lbs (12 ft-lbs, 16.3 Nm).
9. Remove the support block.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 192
6 Available Replacement Procedures

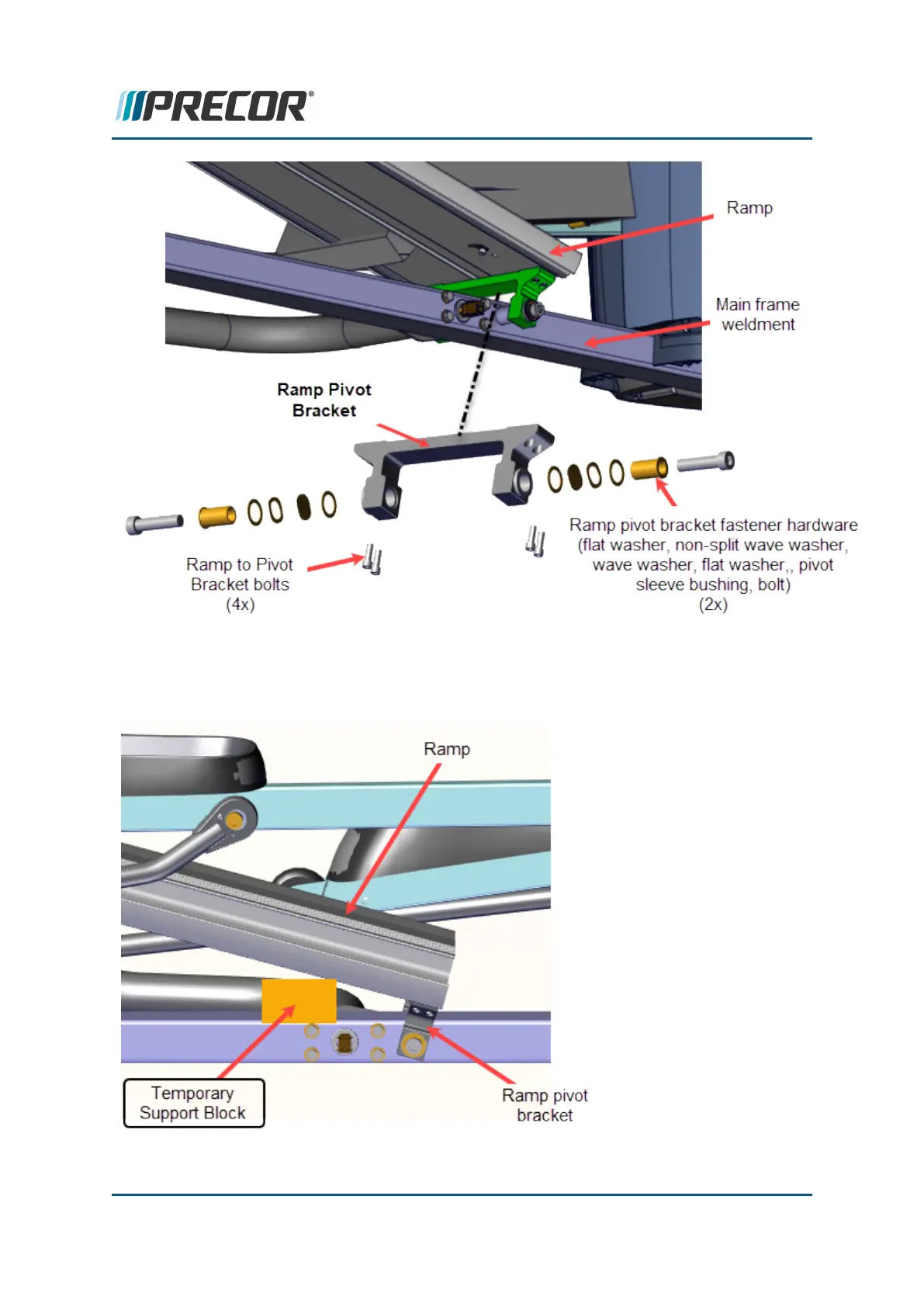

Ramp Pivot Bracket
