Eddy Current Magnet Adjustment
6. Verify the position of the eddy current magnet relative to the eddy current disk The
eddy current disk should be centered in the slot in the eddy current magnet.
a. If the eddy current disk is not centered, loosen the two eddy current magnet
mounting bolts and move the magnet to center the eddy current disk. Tighten
and torque the eddy current magnet mounting bolts to 66 in-lbs (7.5 Nm).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 71
5 Adjustment Procedures

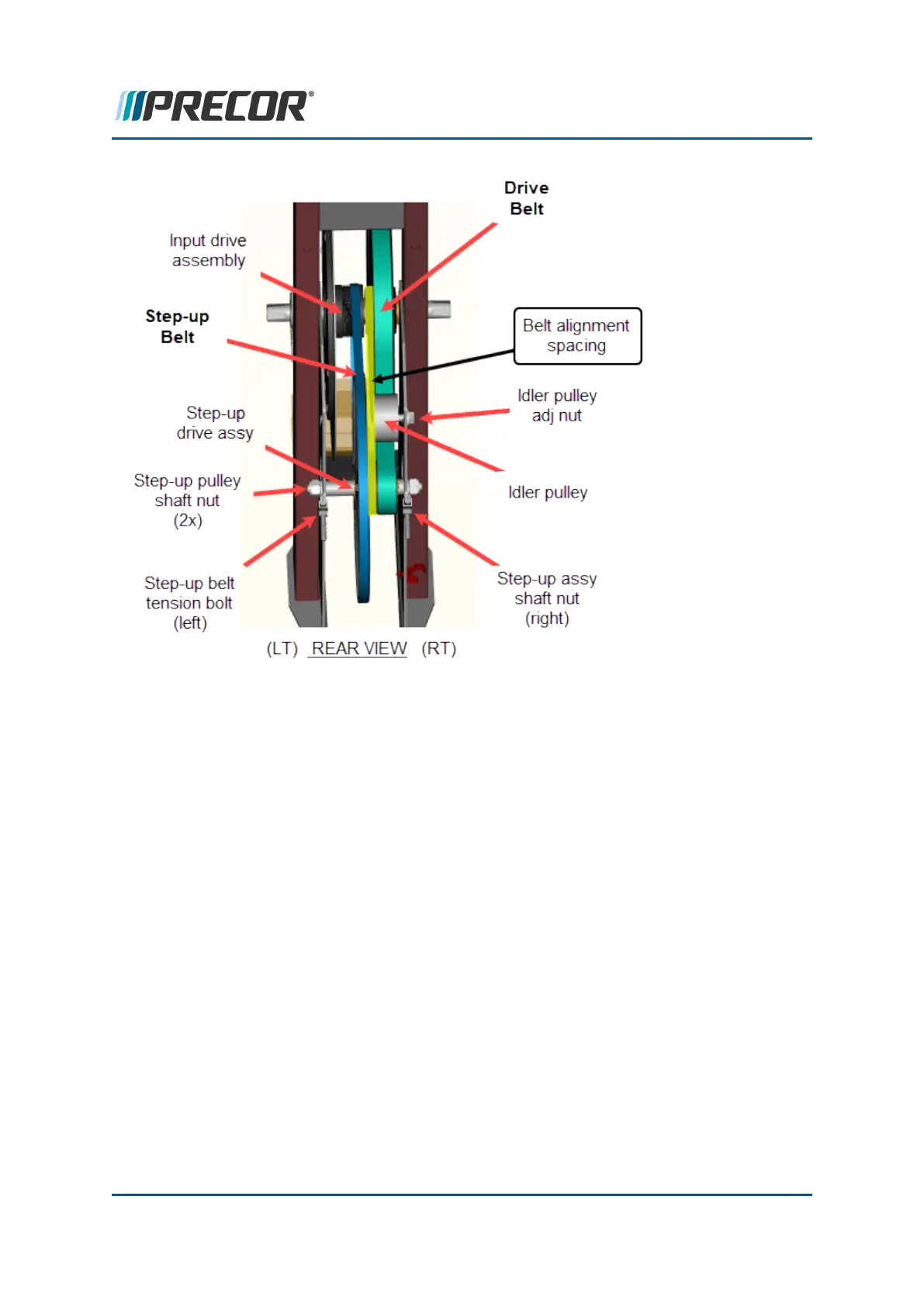

Input Drive Assembly Adjustment
