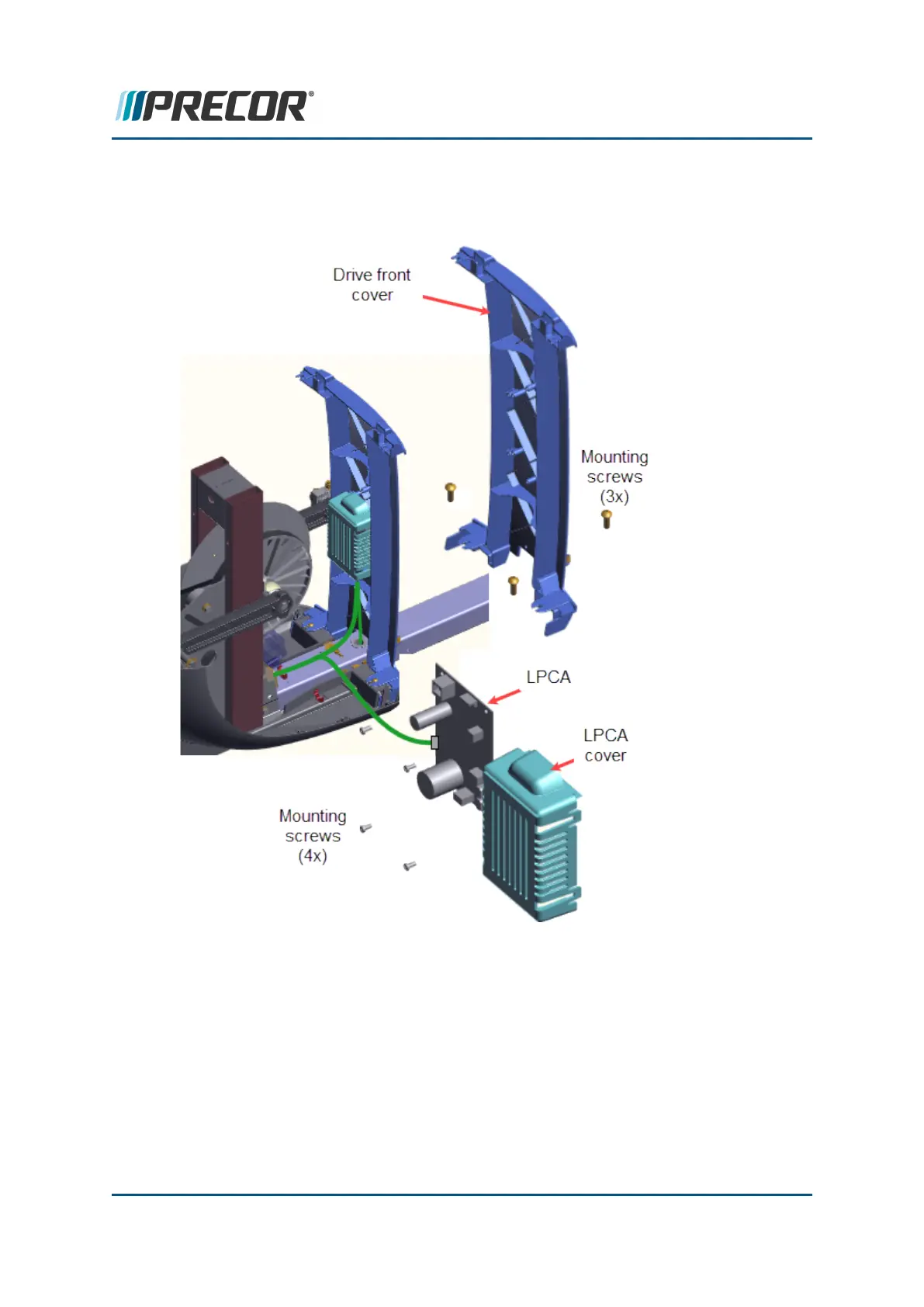

3. Position the front cover in its mounting position and snap the front cover tabs into the
bottom cover. Secure the front cover to the bottom cover using the two removed
screws. Secure the front of the front cover to the frame rail using one screw.
4. Install the LPCA board onto the drive front cover and secure using the four removed
screws. Install the LPCA cover, insert the bottom tabs and then push the top to snap
the top tabs in place.
5. Set the wedge cover in its mounting position the frame rail and fasten using the two
removed screws.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 89
6 Available Replacement Procedures
Covers and Panels Replacement
