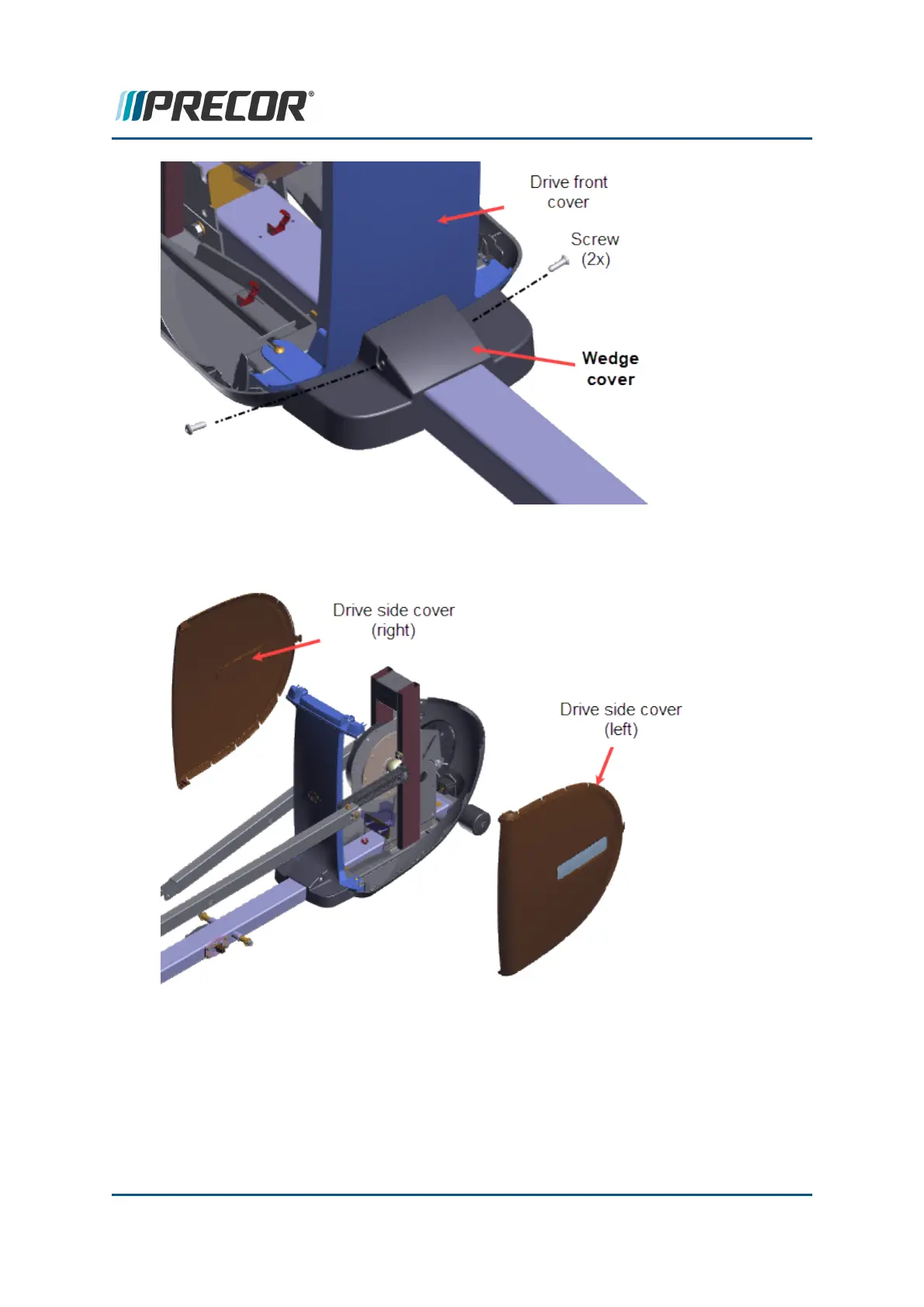

6. Set the left and right cover sections in their mounting positions making sure that all of
the tabs on the left and right cover are correctly aligned in the bottom cover section.
7. Set the drive top cover in its mounting position and press the front to snap the two
tabs in place. Secure using the three removed mounting screws, one screw on the top
and two screws in the back of the cover.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 90
6 Available Replacement Procedures
Covers and Panels Replacement
