3.3 Installing ink cartridges 53
10. Insert the High capacity ink pack adapters into Ink cartridge slots.
NOTE
• Do not insert the high capacity pack adapter into the ink cartridge slot without a cleaning fluid bag
attached.
The information of the remaining amount will be overwritten and the cleaning fluid bag will not be
usable.
• Insert the high capacity pack adapter all the way to the end of the slot.
• When a high capacity pack adapter is installed, “Ink Refill **%” is displayed on the operation
panel and ink charging starts.
• Initial charging takes about four minutes.
Ink charging operation and pause operation are repeated during the ink charging.
• When “100%” is displayed, the ink charging is complete.

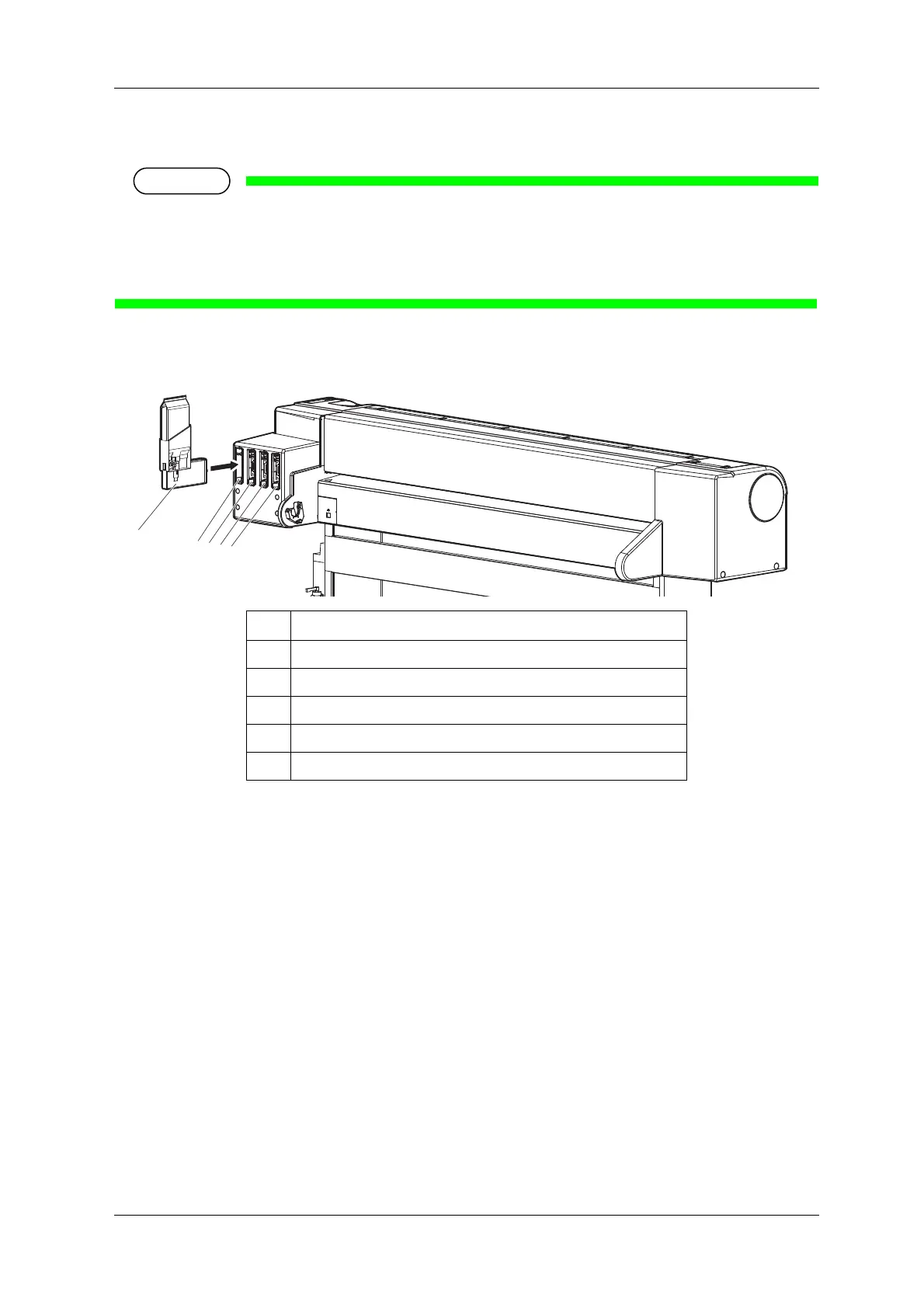

No. Name
1 High capacity pack adapter
2 Ink cartridge slot K
3 Ink cartridge slot C
4 Ink cartridge slot M
5 Ink cartridge slot Y
1
5
4
3
2
