PrismJET 54 Gen2 OPERATION MANUAL Before using
3.6 Adjust Print 87

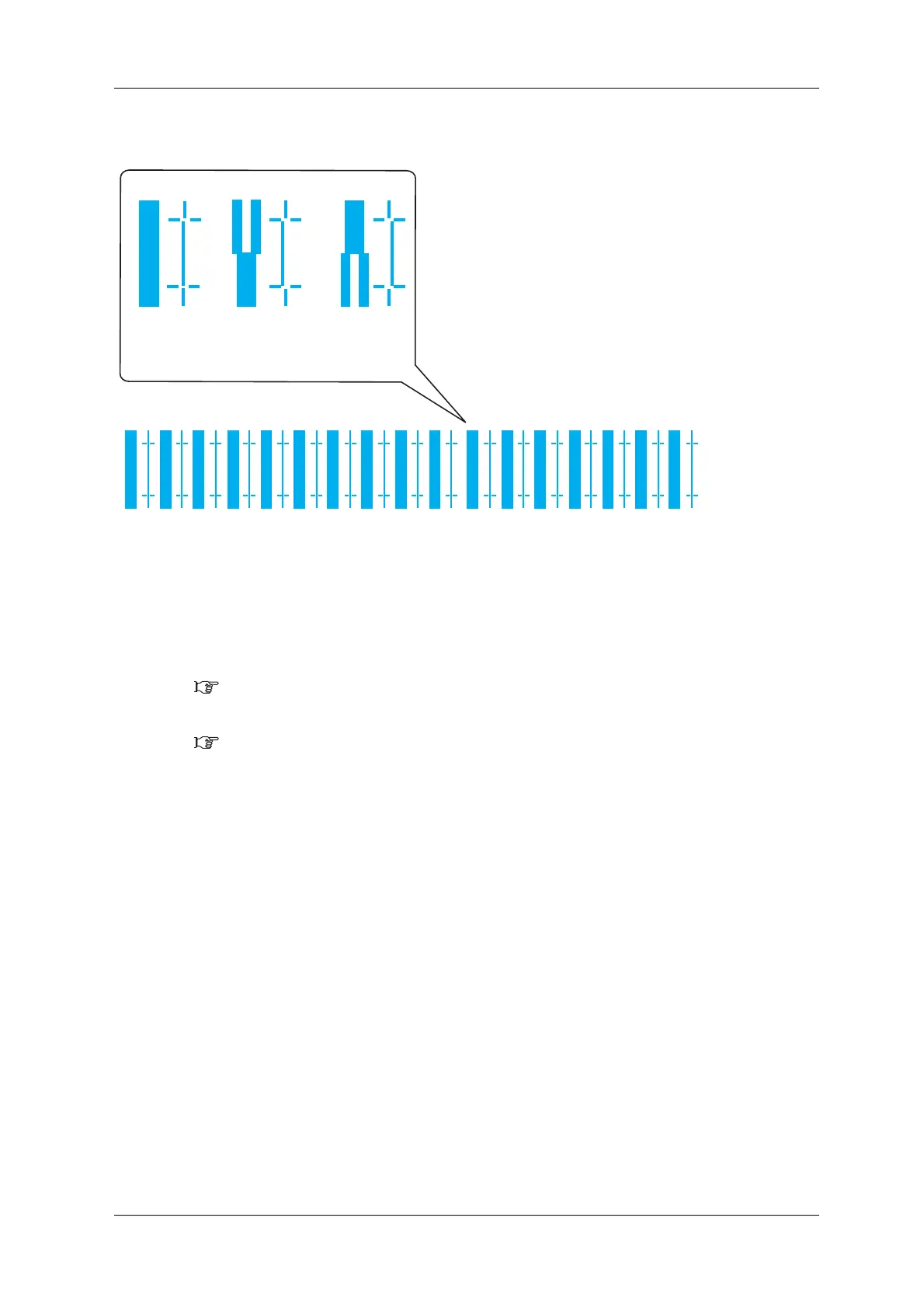

4. Confirm that the confirmation pattern printing result is as follows.
a. When the printing result is Adequate;
You do not need perform print quality adjustment.
The procedure for print quality adjustment is complete.
b. When the printing result is Not adequate;
You need to perform print quality adjustment.
• Perform rough adjustment when the misalignment is large.
3.6.3.2 Standard Rough Adjustment Pattern
• Perform micro adjustment when the misalignment is small.
3.6.3.3 Standard Micro Adjustment Pattern
D
Adequate Not adequate Not adequate
