Flow rate settings
Flow rateTemperature
Free chlorinepH value

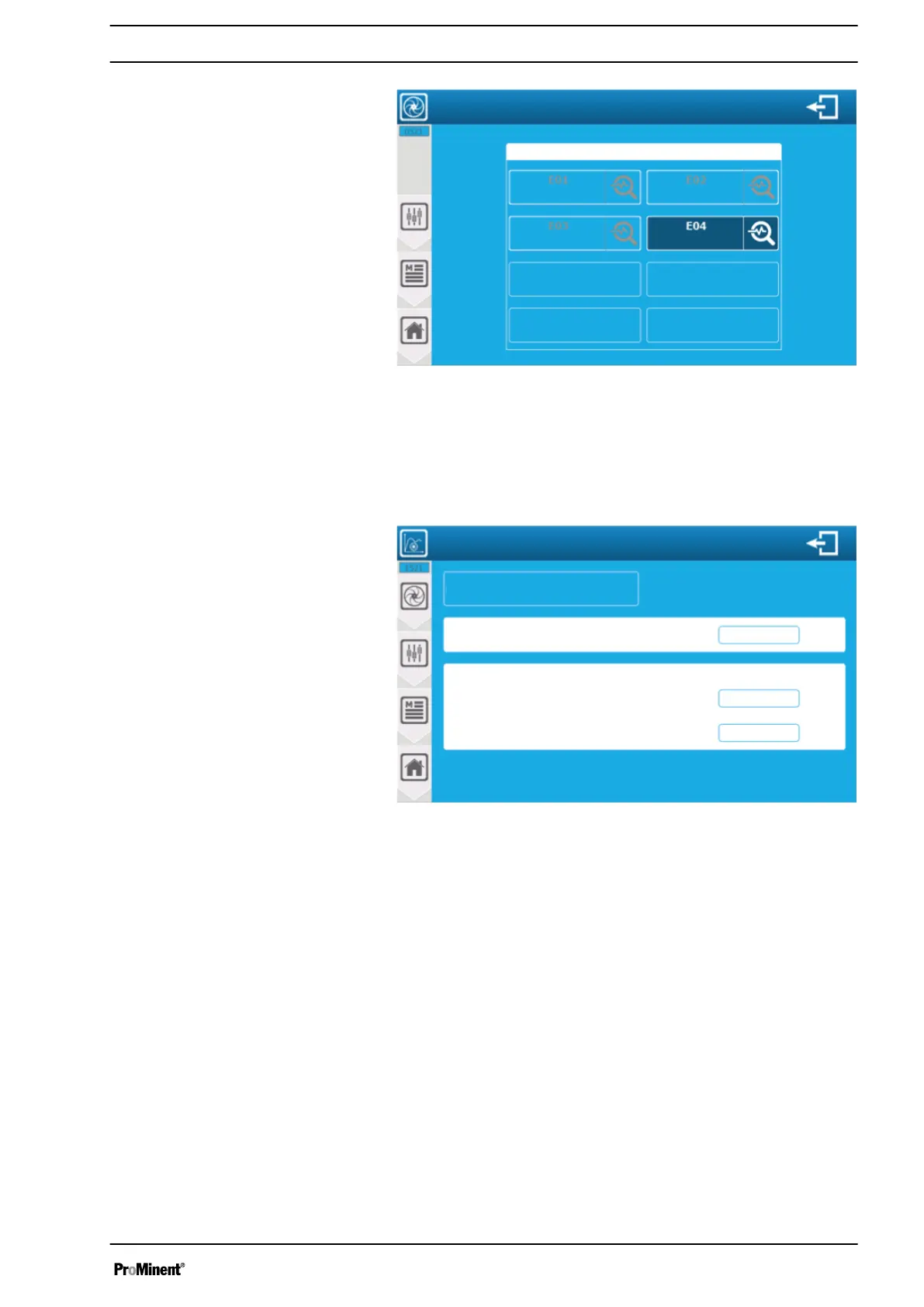

Fig. 106: ‘Settings’ - ‘FLOW RATE’ menu
The screen shows the configured parameters for the flow type. You
can configure the flow rates by pressing an active parameter.
8.5.1 Standard version
A3161
Setting the flow threshold
E04 Flow
Metering stop threshold
Control of capacity
OFF l/h
0 l/h
OFF
Upper flow threshold value (OFF=No control)
Lower flow threshold value
Fig. 107: Setting the flow threshold
‘E04 Flow DI2’
: This is where to find parameter identification for
information of the parameter number identification (E04), type
(flow) and associated main sensor input (DI2).
‘Metering stop threshold OFF’
: Enter the low flow rate at which the
metering of the parameter caused by this flow rate is reduced. The
threshold is disabled here; the current value (OFF), metering is not
reduced by the flow rate.
‘Lower flow threshold value 0 l/h’
: Enter a low flow level for
metering control. This is the actual value (0).
‘Upper flow threshold value OFF’
(OFF - no control): Enter a high
flow rate level for metering control. The control function is disabled
here; current value (OFF).
Saving: When a change has been made, the
‘SAVE’
key (disk
symbol) appears, which you need to press to save your configura‐
tion.
Setting measuring and control parameters
