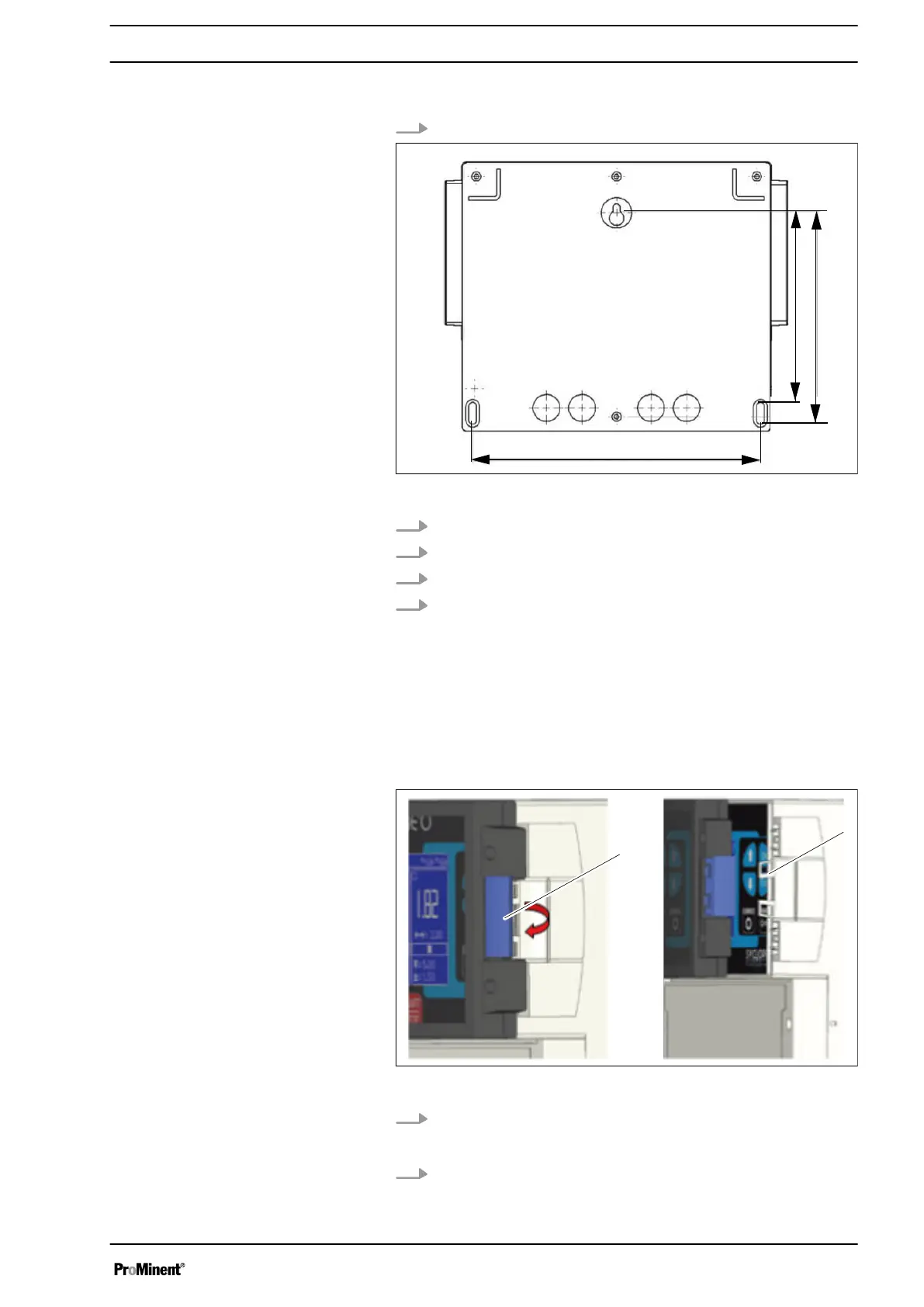

4.3.1 Installation on the wall
1. Drill 3 Ø 5 mm holes as per the following drawing.
A2986
242 mm
199,5 mm
189,5 mm
Fig. 3: The diagram is not true to scale!
2. First screw in the upper screw, without tightening it fully.
3. Then screw in the lower screws and tighten them.
4. Now tighten the upper screw.
5. Check that it is fixed correctly and horizontally on the wall
using a spirit level.
4.3.2 Opening/closing the transparent cover
To guarantee degree of protection IP65, it is essential that the
transparent cover is closed after use, and the quality of the closure
seal must be guaranteed. The transparent cover has a closing
system with automatic locking if it has been correctly handled.
Fig. 4: Opening/closing the transparent cover
1. Lift the lock (1) and pull the lock towards you.
ð
The transparent cover is open.
2. Guide the transparent cover with the lock into the locking pin
(2) of the housing. Using the palm of your hand, press on the
transparent cover until the lock engages.
Installation and assembly
17
