4.3.8 Connectors for self-fed relay outputs (PO1 and PO2)
The self-fed PO1 output relay output (primary power supply =
voltage available at P3) can be used for metering, alarm, timer...
A3008

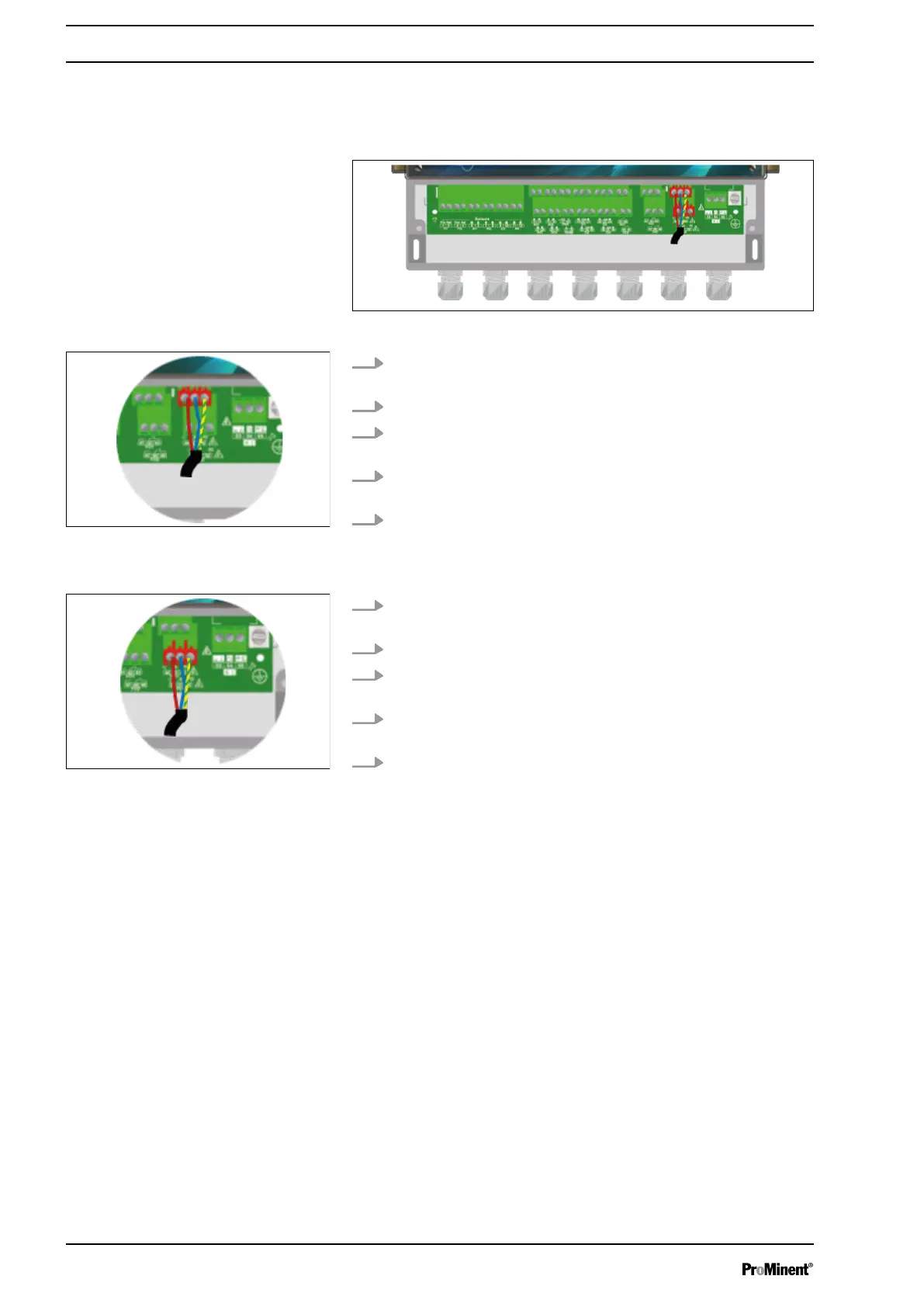

Fig. 17: Connectors for self-fed relay outputs (PO1 and PO2)
1. Strip away 7 mm of the insulation on the 3 leads of the power
cable of the device.
2. Insert the 3-pole cable through a cable gland.
3. Connect the phase to L1 (44) and the neutral conductor to N
(45) on the mains power terminal strip PO1.
4. Connect the earth to PE (46) on the mains terminal strip
PO1.
5. Tighten the cable gland to make a seal.
1. Strip away 7 mm of the insulation on the 3 leads of the power
cable of the device.
2. Insert the 3-pole cable through a cable gland.
3. Connect the phase to L1 (50) and the neutral conductor to N
(51) on the mains power terminal strip PO2.
4. Connect the earth to PE (52) on the mains terminal strip
PO2.
5. Tighten the cable gland to make a seal.
A3009
PO1
Fig. 18: Mains power terminal strip
PO1
A3010
PO2
Fig. 19: Mains power terminal strip
PO2
