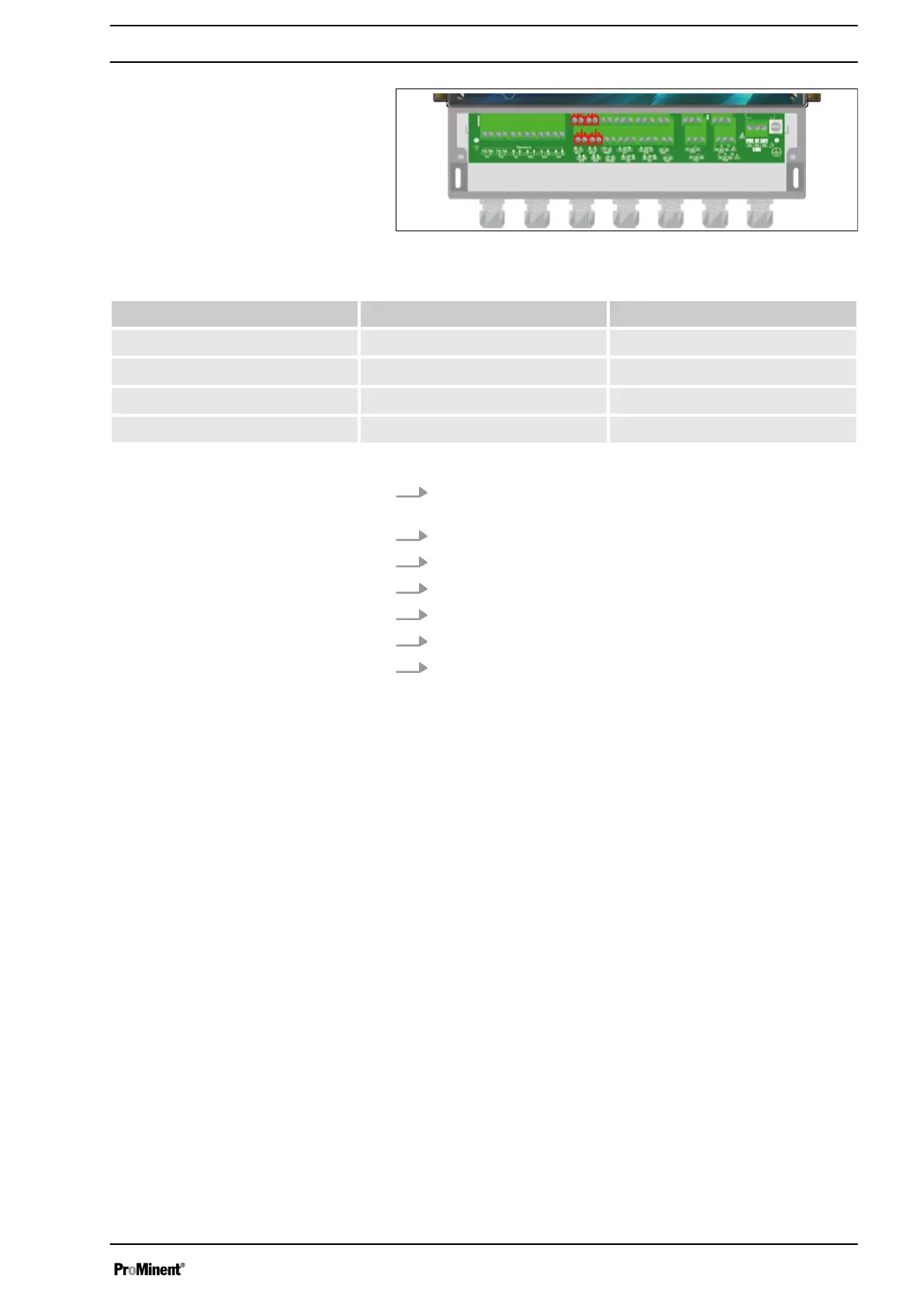

Fig. 26: 4 ... 20 mA output connectors (AO1 ... AO4)
Output Lead, plus Lead, minus
AO1 13 14
AO2 27 28
AO3 15 16
AO4 29 30
Assignment:
Ä Further information on page 28
1. Use a 2-lead cable designed appropriately for use for voltage
and power.
2. Remove the protective sleeve of the cable.
3. Strip away 7 mm of the insulation on the leads.
4. Guide the cable through the cable gland.
5. Connect the lead (plus) to the terminal block.
6. Connect the lead (plus) to the terminal block.
7. Tighten the cable gland to make a seal.
Installation and assembly
29
