8.1.3.6 Relay outputs in timer mode
A3132
Relay output setting
P02 function: Timer
Pause relay status
Active (ON)
Inactive (OFF)
Seconds
Seconds
Duration of the relay status for pulse mode

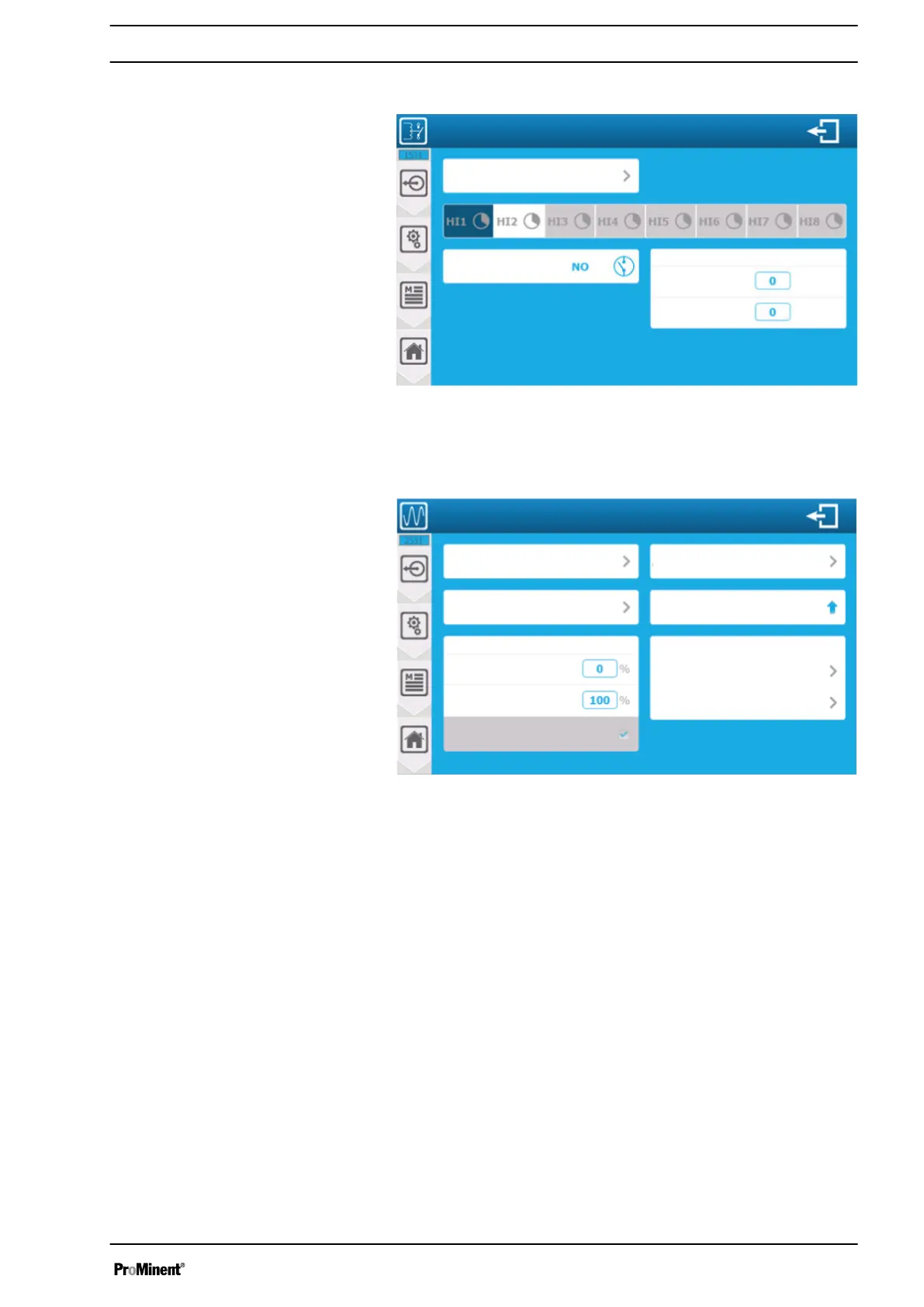

Fig. 85: Relay output in timer mode
8.1.3.7 Outputs 4 ... 20 mA in metering mode
A3133
Analogue output settings
AO2 function: Metering
Special flows
Metering direction: Raise
Assignment: pH value
Remain active after
Maximum
Minimum
Error: Low range
Output range: 4 ... 20 mA
Metering range
Outside the range
Fig. 86: Outputs 4 ... 20 mA in metering mode
Low range:
n 4 mA range, when the range 4 ... 20 mA has been selected
n 0 mA range, when the range 0 ... 20 mA has been selected.
Outside the 20 mA range: selection of the current pending when
the selected operating range at the output has been exceeded.
The selection button provides the selected current information (20
mA).
Outside the 20 mA range:
n Maximum - higher than 22 mA
n 20 mA = 20 mA
n 20.8 mA = 20.8 mA
8.1.3.8 Output 4 ... 20 mA in transfer mode
Example showing the creation of a 4 ... 20 mA output in transfer
mode.
Setting measuring and control parameters
