PLX51-PBM Preface
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 10 of 196
The following figures provide an example of the typical network setup for a
PROFIBUS Slave(s) architecture using either an EtherNet/IP or Modbus Interface.

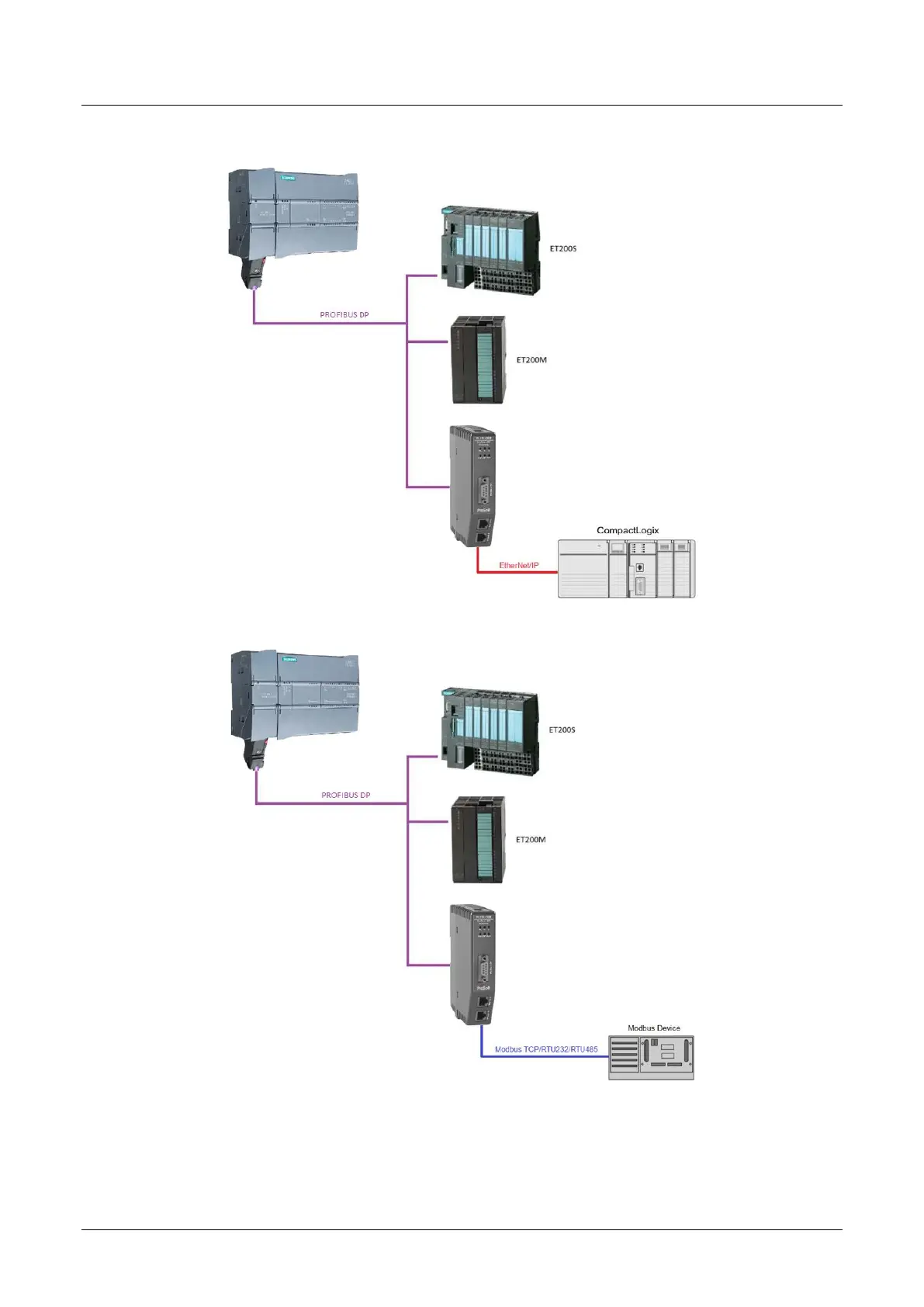

Figure 1.5 – PLX51-PBM PROFIBUS Slave to EtherNet/IP architecture
Figure 1.6 – PLX51-PBM PROFIBUS Slave to Modbus (TCP/IP/RTU232/RTU485) architecture
